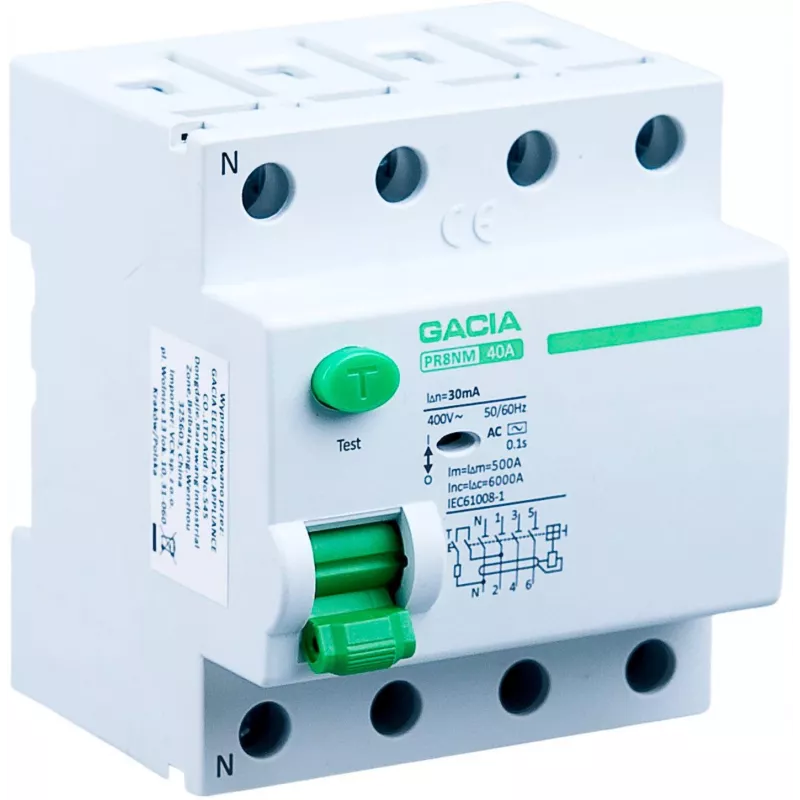

GACIA PR8NM 4P 40A 30mA Type A RCCB Residual Current Circuit Breaker 4-Pole 40A 30mA

GACIA PR8NM 4P 40A 30mA Type A RCCB Residual Current Circuit Breaker 4-Pole 40A 30mA
GACIA PR8NM 4P 40A 30mA Type A RCCB Residual Current Circuit Breaker 4-Pole 40A 30mA
R481
The GACIA PR8NM 4P 40A 30mA A is a high-quality Residual Current Circuit Breaker (RCCB) designed for reliable protection against indirect contact and earth leakage currents. With 4 poles, a rated current of 40A, and a rated residual operating current of 30mA, this Type A RCCB is ideal for residentia... Read More
Stock 24 Code 3101271 Brand GACIA Model PR8NM 4P 40A 30MA A Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, September 29
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The GACIA PR8NM 4P 40A 30mA A is a high-quality Residual Current Circuit Breaker (RCCB) designed for reliable protection against indirect contact and earth leakage currents. With 4 poles, a rated current of 40A, and a rated residual operating current of 30mA, this Type A RCCB is ideal for residential, commercial, and industrial electrical installations. It complies with IEC/EN 61008-1 standards and offers robust performance with a short-circuit breaking capacity of 6kA.

Advantages

This RCCB provides enhanced safety by detecting and interrupting earth leakage currents, preventing electric shocks and fire hazards. Its Type A design ensures compatibility with pulsating DC residual currents, making it suitable for modern electronic loads. The DIN rail mounting allows for easy installation in distribution boards, and the clear ON/OFF and trip indicators provide immediate status visibility.

Suitable for

  • Residential electrical panels
  • Commercial buildings
  • Industrial power distribution
  • Protection of circuits with electronic equipment

Key specifications

  • Product Type: Residual Current Circuit Breaker (RCCB)
  • Number of Poles: 4P (4-pole)
  • Rated Current (In): 40 A
  • Rated Residual Operating Current (IΔn): 30 mA
  • RCD Type: Type A
  • Rated Voltage (Un): 400 V AC
  • Rated Frequency: 50/60 Hz
  • Rated Short-Circuit Breaking Capacity (Icn): 6 kA
  • Rated Impulse Withstand Voltage (Uimp): 4 kV
  • Mounting Type: DIN Rail (35mm)
  • Terminal Capacity: Up to 25 mm² (rigid), 16 mm² (flexible)
  • Electrical Endurance: 10,000 cycles
  • Mechanical Endurance: 20,000 cycles
  • Degree of Protection: IP20 (terminals), IP40 (enclosure)
  • Operating Temperature Range: -25°C to +40°C
  • Standard Compliance: IEC/EN 61008-1
  • Tripping Characteristic: Instantaneous
  • Indicator: ON/OFF and Trip indicator
  • Protection Function: Against indirect contact and earth leakage currents

Recommendations

For optimal safety, ensure that the RCCB is installed by a qualified electrician and that the load does not exceed the rated current. Regular testing of the trip mechanism is recommended to maintain protection.

Specifications
Brand
GACIA
Category
Residual Current Circuit Breaker (RCCB)
Certification
IEC/EN 61008-1
Compliance certificates
IEC/EN 61008-1
EAN
5901122687566
Input current
40 A
Model
PR8NM 4P 40A 30MA A
MPN
PR8NM 4P 40A 30MA A
On/off switch
Yes
Weight
0.16 kg
