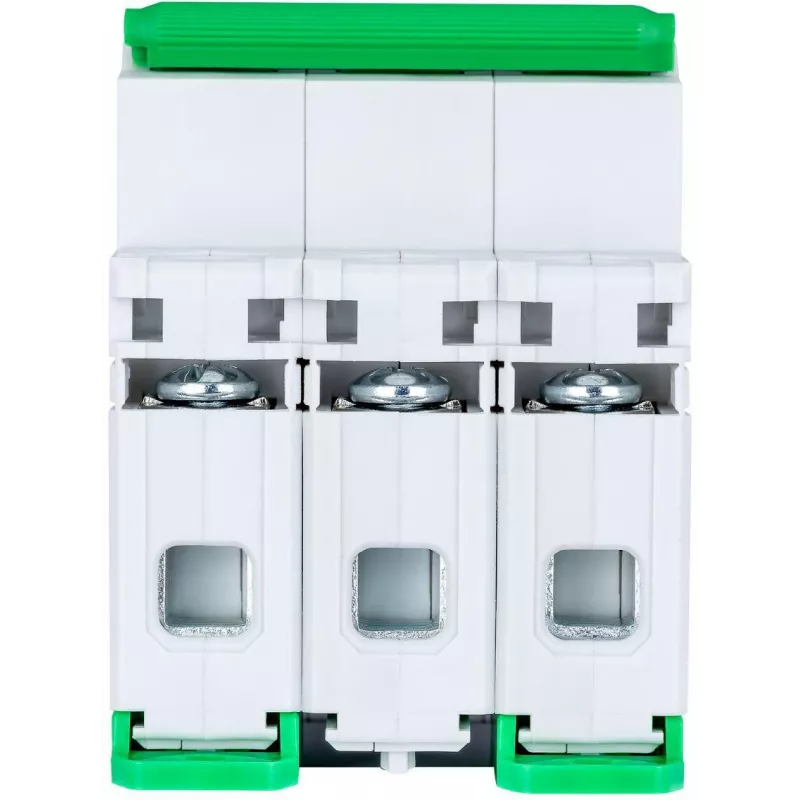

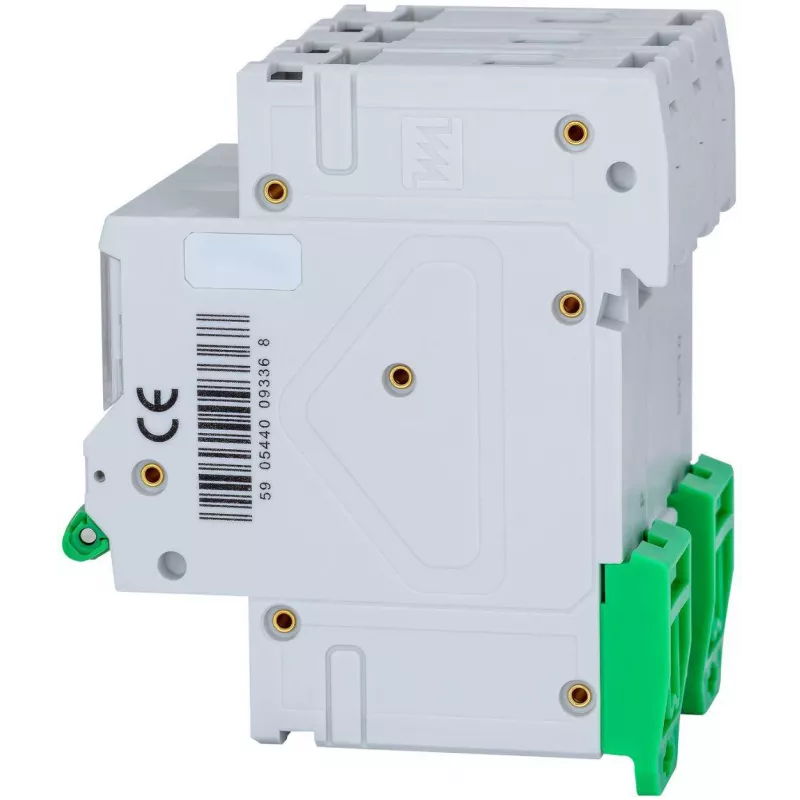

GACIA N8BH 10kA C 3P 32A Miniature Circuit Breaker MCB

The GACIA N8BH is a high-performance miniature circuit breaker (MCB) designed for overload and short-circuit protection in commercial and industrial electrical installations. With a rated current of 32 A and a C-curve tripping characteristic, it ensures reliable protection for circuits with moderate inrush currents, such as lighting and motor loads. The three-pole configuration (3P) provides simultaneous disconnection of all phases, enhancing safety and system integrity.

Advantages

This MCB offers a high breaking capacity of 10 kA, ensuring robust protection even in high-fault-current environments. Its compact DIN-rail mounting design saves space in distribution boards, while the clear ON/OFF position indicator simplifies maintenance and troubleshooting. The screw terminals accommodate conductors up to 35 mm², making installation straightforward and secure.

Suitable for

• Commercial buildings (offices, retail, schools)
• Industrial control panels and machinery
• Residential distribution boards requiring high breaking capacity
• Lighting and socket-outlet circuits with moderate inrush currents

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 3P (Three-Pole)
• Rated Current (In): 32 A
• Tripping Curve: C-Curve
• Rated Short-Circuit Breaking Capacity (Icn): 10 kA
• Rated Voltage (Ue): 230/400 V AC
• Frequency: 50/60 Hz
• Standard Compliance: IEC/EN 60898-1
• Mounting Type: DIN Rail (EN 60715)
• Terminal Capacity: 1-35 mm² (flexible/rigid conductor)
• Electrical Endurance: ≥ 10,000 cycles
• Mechanical Endurance: ≥ 20,000 cycles
• Protection Degree: IP20 (terminals), IP40 (enclosure)
• Operating Temperature Range: -25°C to +55°C
• Energy Limiting Class: 3
• Connection Type: Screw terminals
• Indicator: ON/OFF position indicator

Recommendations

For optimal performance, ensure the MCB is installed by a qualified electrician and that the system's prospective short-circuit current does not exceed 10 kA. Regular testing of the mechanical indicator is recommended to verify proper operation.
