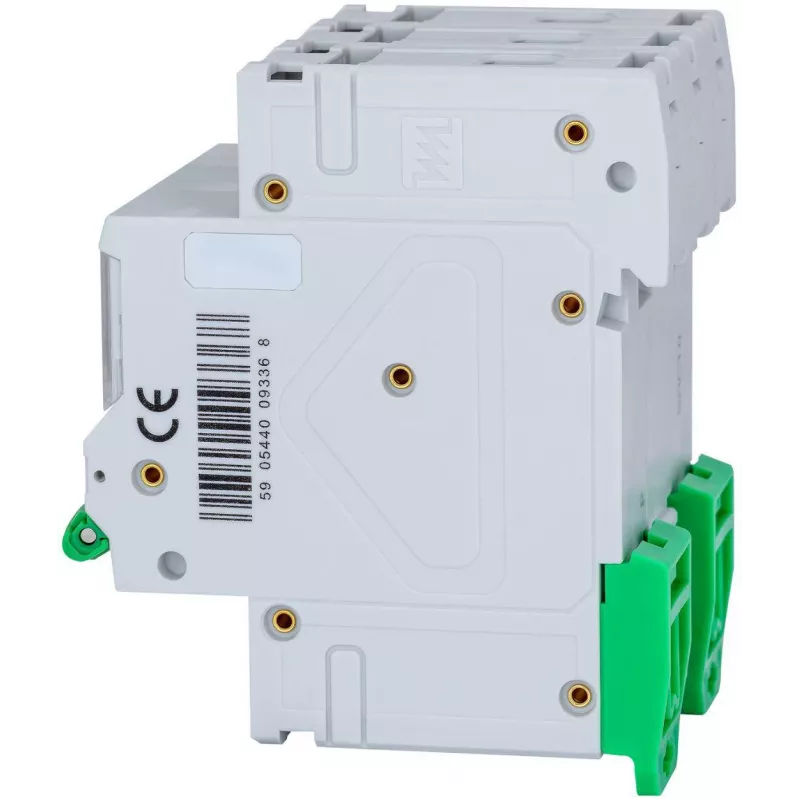

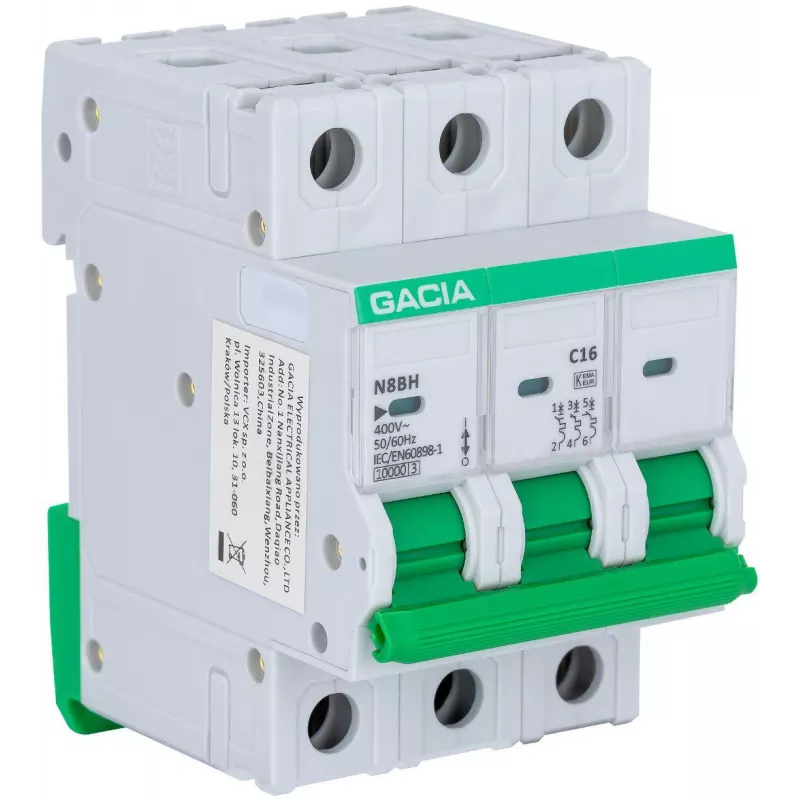

GACIA N8BH 10kA C 3P 16A Miniature Circuit Breaker MCB

The GACIA N8BH 10kA C 3P 16A is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent and short-circuit protection in electrical installations. With a rated current of 16A and a breaking capacity of 10kA, this 3-pole C-curve MCB ensures safe and efficient operation in residential, commercial, and industrial applications. Compliant with IEC/EN 60898-1 standards, it offers thermal-magnetic protection and is suitable for DIN rail mounting.

Advantages

This MCB provides robust protection against overloads and short circuits, with a C-curve tripping characteristic ideal for inductive loads. Its compact 3-module design saves space in distribution boards, while screw terminals ensure secure connections. The high breaking capacity of 10kA guarantees safety even in high-fault-current scenarios.

Suitable for

• Residential electrical panels
• Commercial building distribution boards
• Industrial control cabinets
• Lighting and motor circuits requiring C-curve protection

Key specifications

• Rated Current (In): 16 A
• Number of Poles: 3-Pole
• Tripping Curve: C-Curve
• Rated Short-Circuit Breaking Capacity (Icn): 10 kA
• Rated Voltage (Ue): 400 V AC
• Rated Frequency: 50/60 Hz
• Mounting Type: DIN Rail
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Standard Compliance: IEC/EN 60898-1
• Terminal Capacity: 1-25 mm²
• Operating Temperature Range: -25°C to +55°C
• Protection Degree: IP20 (Terminals), IP40 (Enclosure with cover)
• Energy Limiting Class: 3
• Type of Release: Thermal-Magnetic

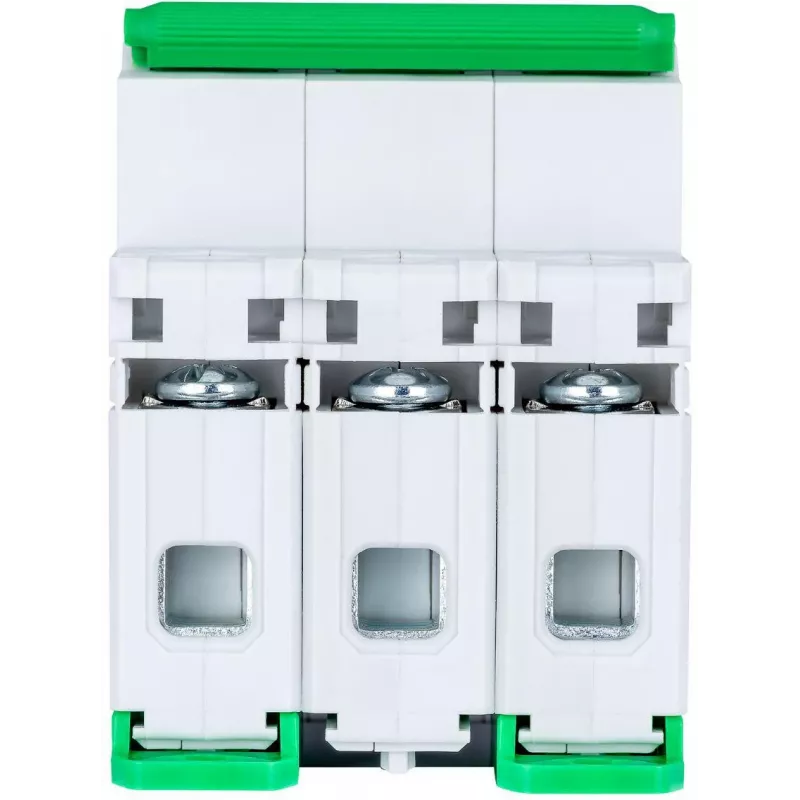

• Connection Type: Screw Terminals
• Module Width: 3 Modules (54 mm)
• Overvoltage Category: III
• Pollution Degree: 2

Recommendations

For optimal performance, ensure proper sizing and installation by a qualified electrician. This MCB is designed for use in distribution boards with adequate ventilation. Always comply with local electrical codes and regulations.
