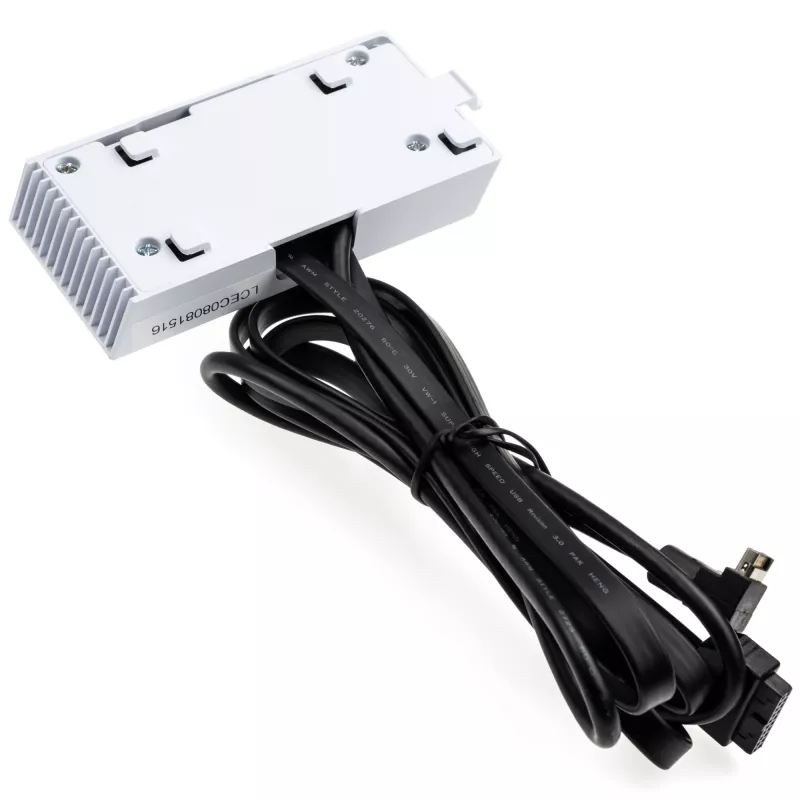

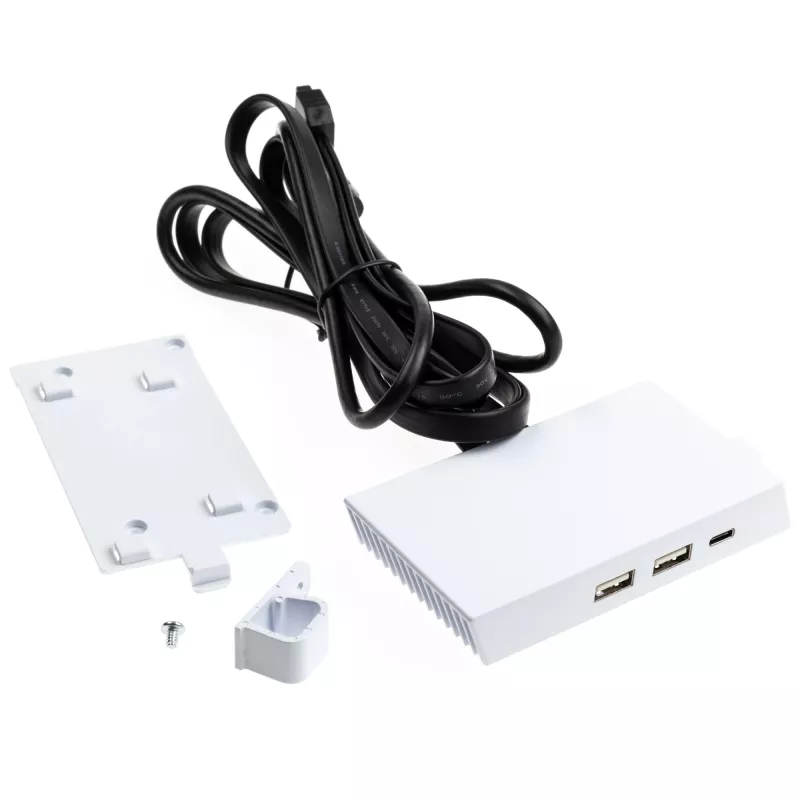

Full Tower Computer Case Lian Li O11DE-3WV2 0.8m Cable

Increase the number of ports on your Lian Li O11D EVO RGB or O11D EVO by adding one USB 3.1 Type-C and two USB 3.0 Type-A ports. This additional I/O kit is designed to replace the base plate and expand connectivity while remaining compatible with O11D EVO models; both the original I/O module and the extra module can be mounted at the bottom of the chassis.

Advantages

The kit provides an extra USB 3.1 Type-C port and two USB 3.0 Type-A ports to extend peripheral connectivity. It is compatible with O11D EVO and O11D EVO RGB when the base plate is replaced, and offers three mounting locations with support for two I/O modules to suit different build layouts.

Suitable for

• Expanding front-panel connectivity on Lian Li O11D EVO or O11D EVO RGB cases
• Connecting USB-C devices such as external drives and modern peripherals
• Adding additional USB-A ports for keyboards, mice, and USB accessories

Key specifications

• Compatible models: Lian Li O11D EVO, O11D EVO RGB (requires base plate replacement for RGB model)
• Additional ports: 1 × USB 3.1 Type-C, 2 × USB 3.0 Type-A
• Mounting: three mounting locations supported; two I/O modules can be installed at the bottom of the chassis

How to use

Replace the case base plate according to the instructions for the O11D EVO RGB if installing on that model; for O11D EVO the kit mounts directly. Fit the additional I/O module into one of the supported mounting locations and secure it following standard case assembly procedures. Connect the module to the motherboard using the appropriate internal USB headers for USB 3.1 Type-C and USB 3.0 Type-A to enable the new ports.

Recommendations

Ensure your motherboard has available internal USB 3.0 and USB 3.1 headers before installation. Power off and unplug the system while installing the module and use the mounting location that best suits your internal cable routing to maintain airflow and accessibility.
