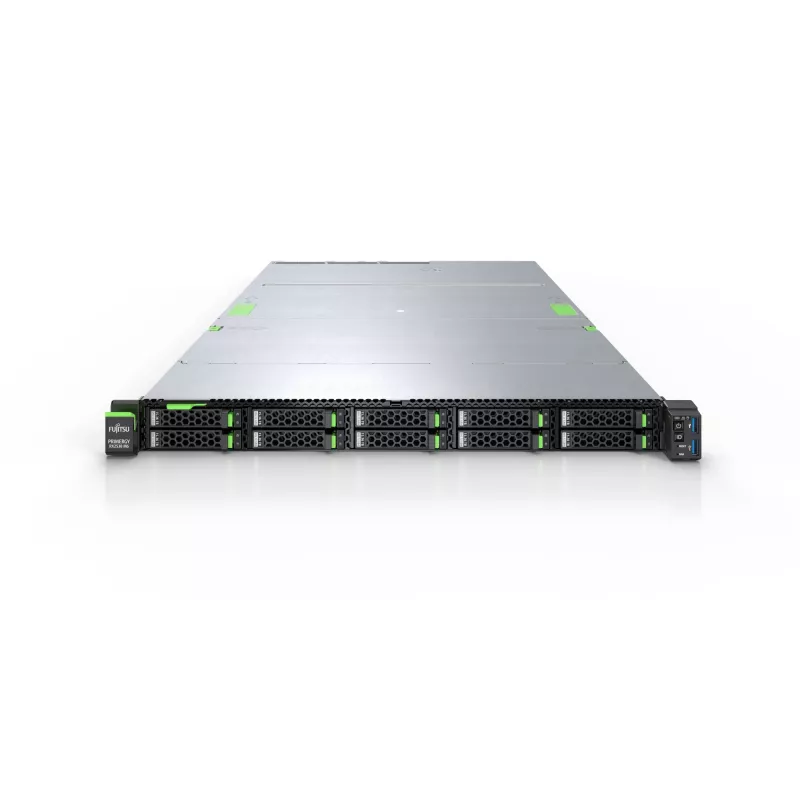

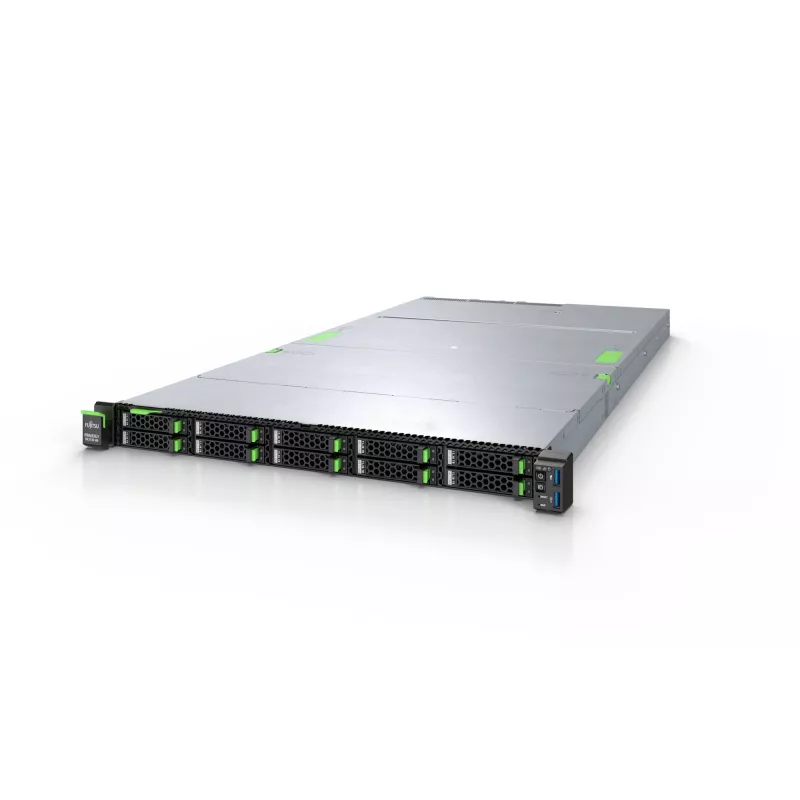

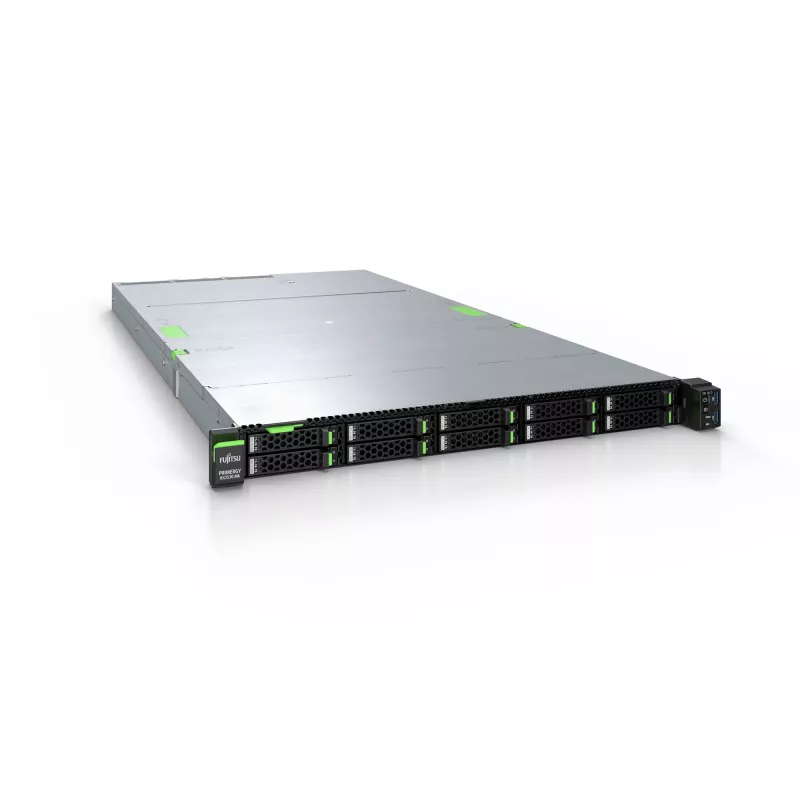

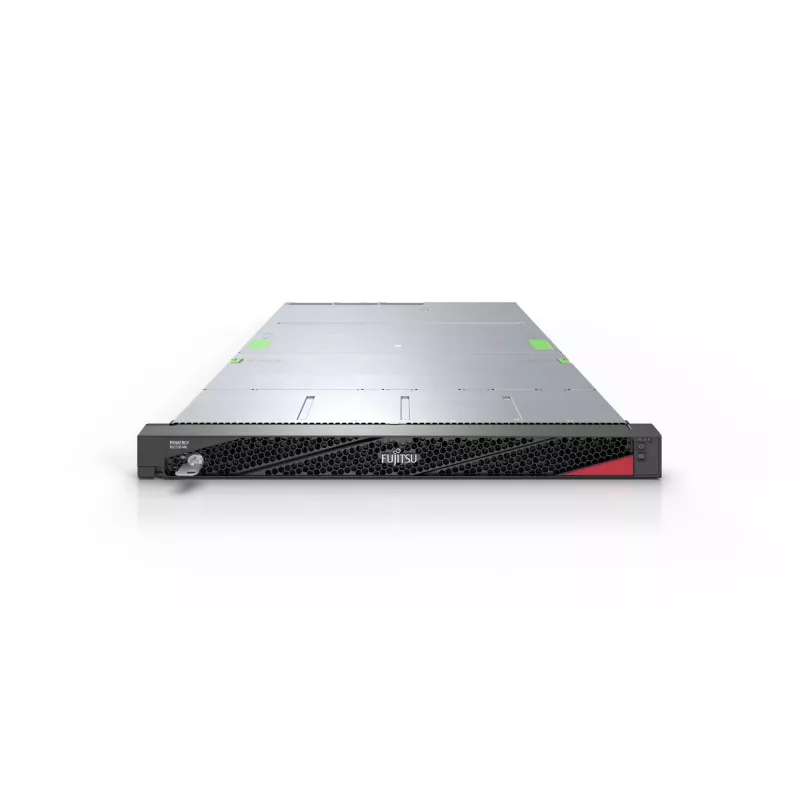

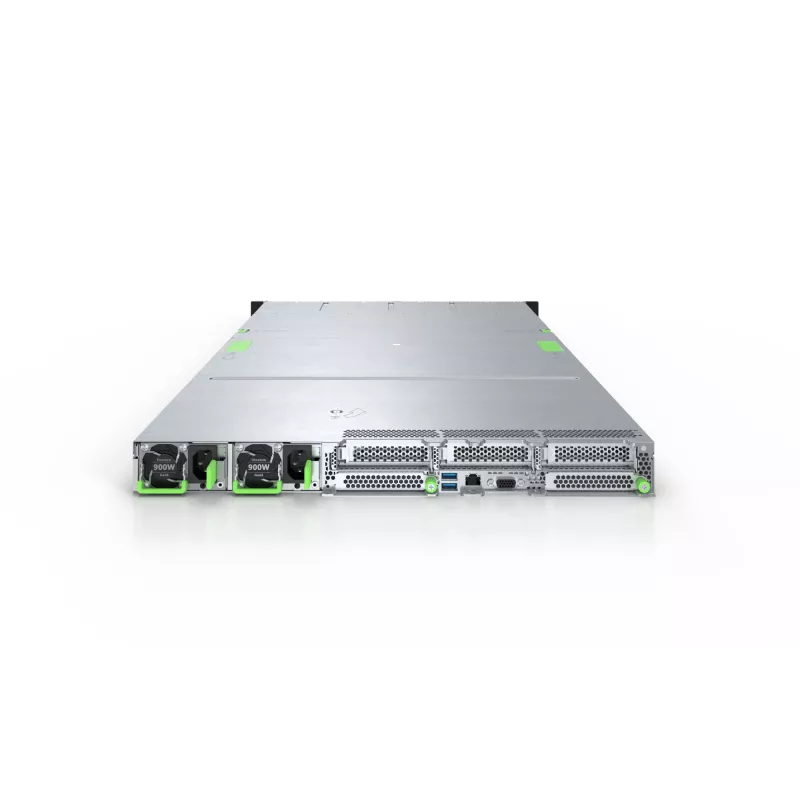

Fujitsu PRIMERGY RX2530 M6 server Rack (1U) Intel Xeon Silver 4314 2.4 GHz 16 GB DDR4-SDRAM 900 W

The Fujitsu PRIMERGY RX2530 M6 is a 1U rack server powered by 3rd Generation Intel® Xeon® Scalable processors, here equipped with an Intel Xeon Silver 4314 (2.4 GHz). It supports up to 32 DIMM slots (with up to 16 slots usable for Intel® Optane™ persistent memory), a maximum memory capacity listed as up to 10 TB, and flexible storage options including 2.5" drives and support for up to eight HDDs in this configuration. The server offers a 900 W power supply and is designed for dense, scale-out data center deployments where compact, reliable compute is required.

Advantages

This rack 1U server provides a balance of compute density and memory expandability, enabling memory‑intensive workloads through support for persistent memory and a large number of DIMM slots. Its support for multiple drive formats and up to 32 drives per height unit in compatible chassis designs allows high storage capacity in compact deployments. Built‑in security features such as Platform Firmware Resilience (PFR) and encryption support help protect firmware, data and virtual machines, while a 900 W power supply and RAID support contribute to reliable operation.

Suitable for

• Scale‑out data center compute
• Memory‑intensive applications and in‑memory databases
• Virtualization and VM hosting with encryption needs
• High‑density storage configurations in rack environments

Key specifications

• Model: Fujitsu PRIMERGY RX2530 M6 (1U rack)
• Processor family: Intel Xeon Silver (example: Xeon Silver 4314, 2.4 GHz)
• Internal memory: 16 GB DDR4 (32 DIMM slots, up to 10 TB supported)
• Persistent memory: Up to 16 DIMMs may be used as Intel® Optane™ PMem
• Storage support: 2.5" drives; this configuration supports up to 8 HDDs (chassis may allow higher density)
• RAID support: Yes
• Power supply: 900 W
• Chassis type: Rack (1U)
• Weight: 18.2 kg

How to use

Install the server in a standard 19" rack using appropriate rails and ensure adequate cooling and power delivery for a 1U unit. Populate memory modules across the 32 DIMM slots according to Fujitsu memory population guidelines; when using Intel® Optane™ persistent memory, follow the vendor instructions for configuring PMem mode or App Direct mode. Configure RAID via the supported controller for required redundancy and initialize the operating system and hypervisor of choice. Apply the latest platform firmware and enable security features such as Platform Firmware Resilience and encryption if required for your workloads.

Recommendations

For memory‑intensive workloads, populate memory evenly across channels and consider using Intel® Optane™ persistent memory to increase effective capacity. Keep firmware and RAID controller drivers up to date and restrict physical access to the rack to maintain platform security.
