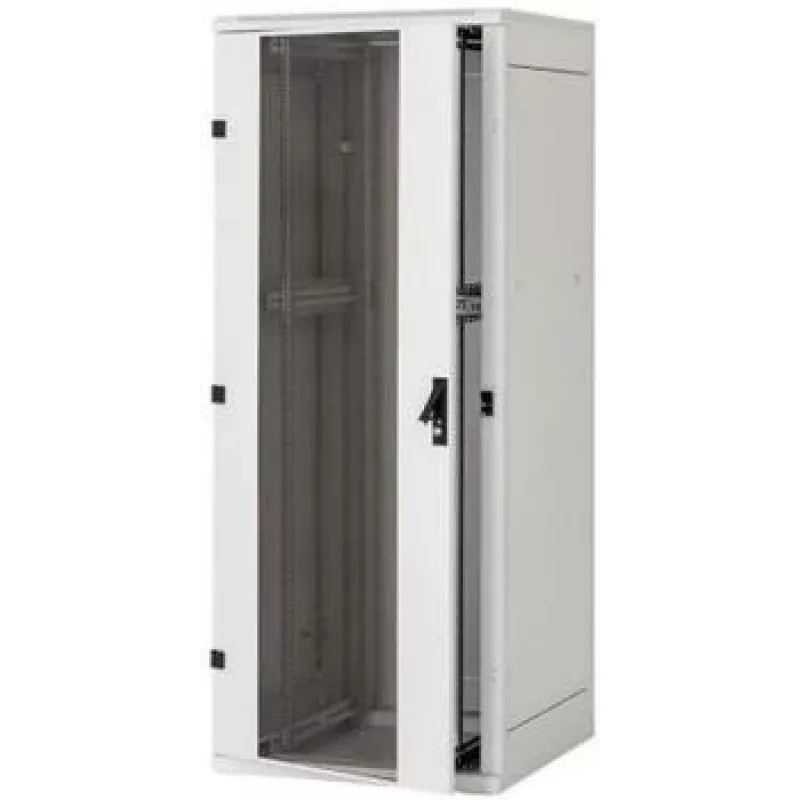

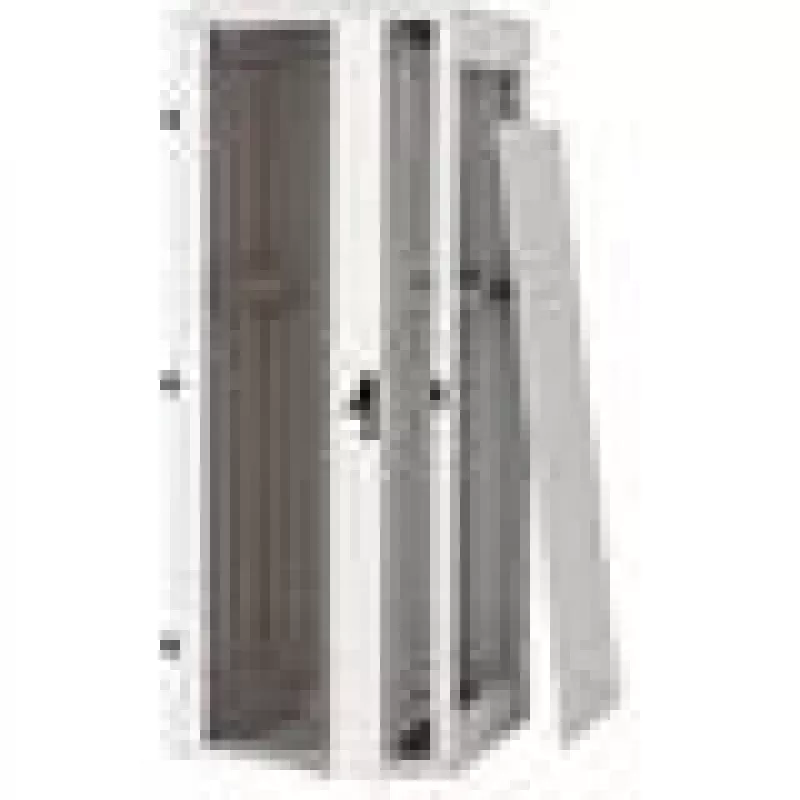

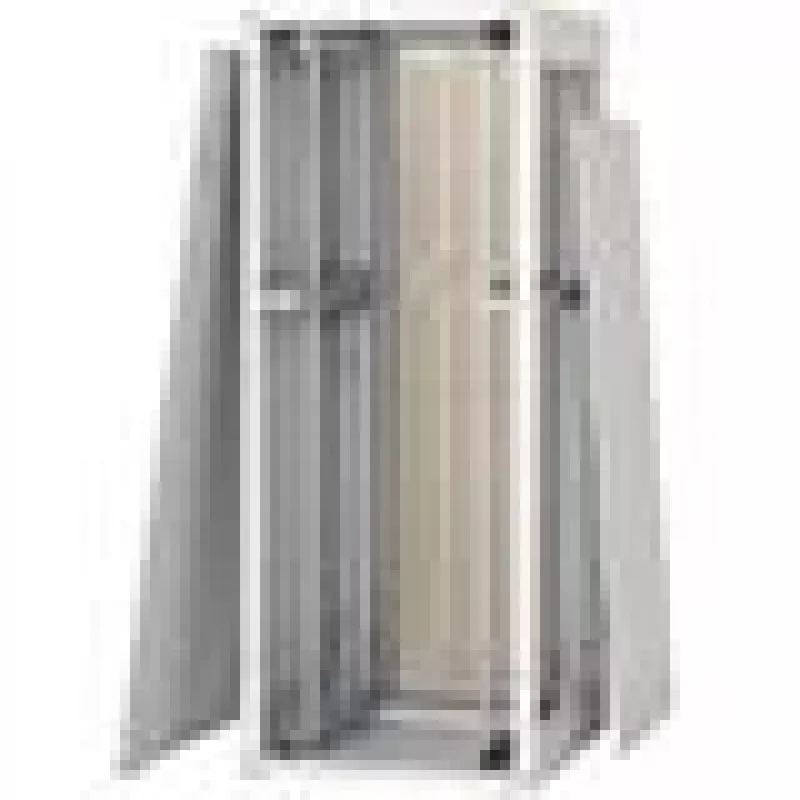

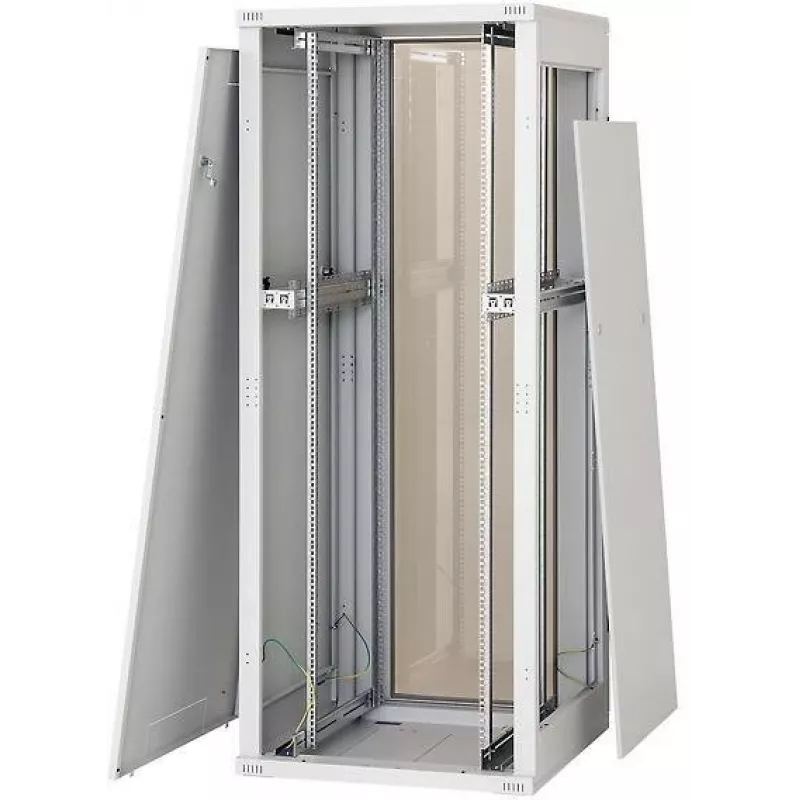

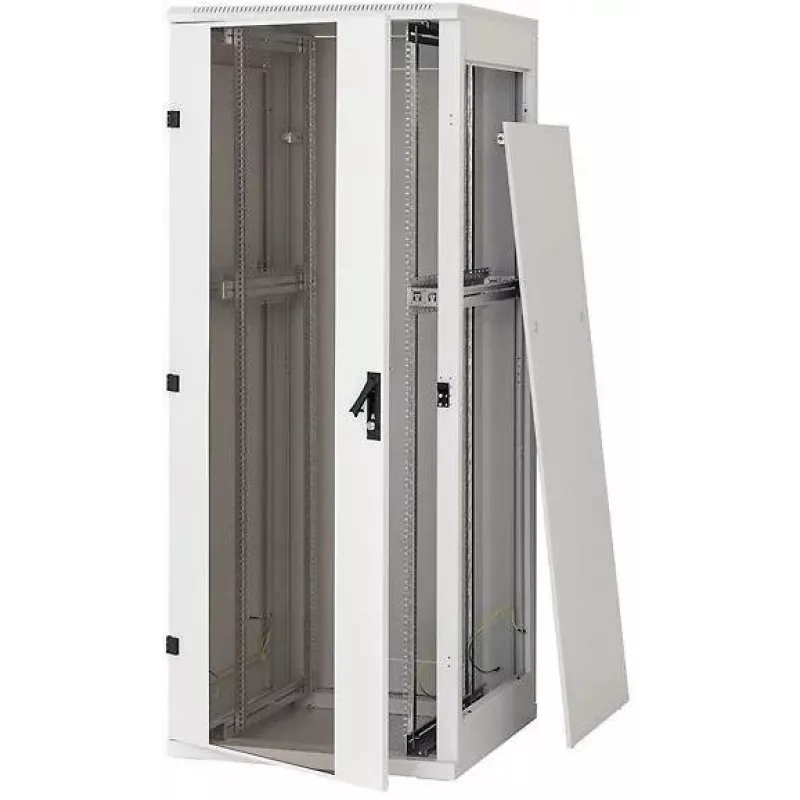

Freestanding rack Triton Triton 19 inch Rack 15U/ 600x800 Glass door

The Triton 19" Rack 15U (600x800) is a freestanding steel cabinet designed for data and telecommunication installations. Built for high strength and heavy load capacity, the cabinet has a grey finish, a lockable glass front door and removable side and rear panels. Sliding 19" rails are rigidly mounted on the cabinet centre line and the 800 mm wide version also supports alternative 21" and offset 19" mounting positions. Cable entry points are provided at the top, bottom and rear, and the cabinet includes ventilation openings, earthing provisions and basic mounting hardware.

Advantages

The cabinet combines robust steel construction with a neat appearance and a 4 mm safety hardened glass door for equipment visibility and security. Adjustable vertical 19" mounting rails on both sides allow precise positioning in depth (and on 800 mm models also across the width). Removable panels, lockable handles and a variety of cable entry and ventilation options make the rack flexible for different installation needs. The frame supports heavy loads and includes levelling feet for stable placement.

Suitable for

• Small to medium server, network and telecom equipment installations
• Environments requiring visible, secured front access (glass door)
• Racks that need flexible mounting positions and cable management
• Installations where natural ventilation and optional fans are used

Key specifications

• Type: Freestanding 19" network cabinet
• U height: 15U
• Dimensions (W×D): 600 × 800 mm
• Weight capacity: up to 300 kg (maximum load)
• Weight: 39.1 kg
• Front door: 4 mm safety hardened glass, lockable swing handle, 180° hinge
• Construction: Steel sheet, grey colour
• Mounting rails: Two pairs of adjustable vertical 19" rails; 800 mm version supports 21" and offset 19" positions
• Cable entry: Top, bottom and upper/lower rear breakout panels (333 cm² opening area)
• Ventilation: Vented top and bottom, openings for fan units, top 3D cover
• Other: Earthing system, brush strip for cable entries, adjustable levelling feet, supplied with basic mounting material

How to use

Position the freestanding rack on a level surface and adjust the levelling feet to stabilise the cabinet. Unlock and open or remove the front glass door and the side or rear panels as needed to access the interior. Fit equipment on the 19" rails, adjusting the rails in depth (and across width on 800 mm models) to suit unit depths. Route cables through the nearest breakout panels at top, bottom or rear; use the brush strip to limit dust ingress. If active cooling is required, install fan units in the provided top or base openings and secure them under the 3D cover where applicable. Connect the earthing point according to site safety rules.

Recommendations

For stable long-term operation, distribute weight evenly across the mounting rails, secure heavy equipment at lower U positions, and ensure proper earthing and ventilation. Use the lockable door and removable panels to restrict access and facilitate maintenance.
