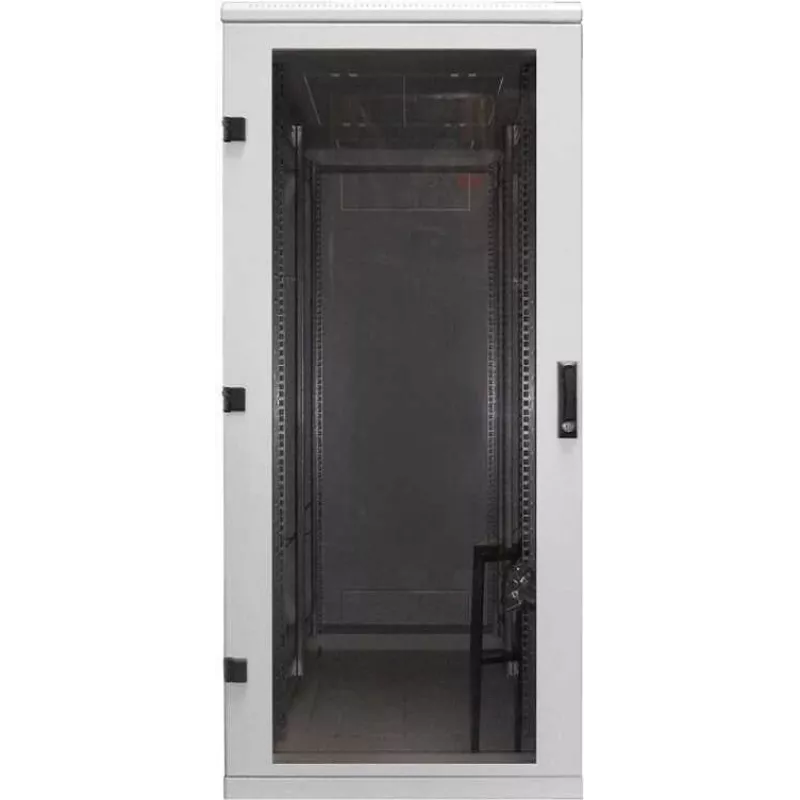

Freestanding rack Triton RMA-37-A69-CAX-N1 37U 800 kg Grey

The Triton RMA-37-A69-CAX-N1 is a freestanding 37U network cabinet designed for data and telecommunication equipment. Constructed with a welded skeleton and 1.3 mm thick rails, it supports up to 800 kg of installed equipment and provides multiple cable entry points, adjustable 19" vertical rails, removable side panels and rear cover, and options for castors or levelling feet. The cabinet has IP20 protection and comes in grey.

Advantages

Rigid welded construction and wider skeleton rails ensure mechanical stability for heavy installations. The hinge system allows almost 180° door opening and reversible mounting for flexible access. Removable panels and perforated skeleton improve accessibility and airflow, and the cabinet supports various accessories including fan unit doors, horizontal cable management and an optional swing frame for easier equipment servicing.

Suitable for

• Server and network equipment installation in offices and server rooms
• Telecommunication racks and patch-panel organization
• Environments requiring up to 800 kg load capacity and IP20 protection
• Installations needing adjustable 19" rails, cable management and fan units

Key specifications

• Model: Triton RMA-37-A69-CAX-N1
• Rack capacity: 37U
• Max load capacity: 800 kg
• Width: 600 mm
• Depth: 900 mm
• Height: 1750 mm
• Vertical rails: adjustable 19" (flex frame option for 21" / 23" on 800 mm width)
• Protection rating: IP20
• Colour: Grey

How to use

Place the cabinet on the included levelling feet or fit optional castors or a base as required. Adjust the vertical 19" rails to the needed depth and mount equipment using standard rack screws. Route cables through the breakout-type blanking panels on the base, ceiling and rear wall; seal cable openings with the supplied brush strips or protective fringe to reduce dust ingress. If active cooling is required, order the compatible fan unit door or Triton fan units and install in the dedicated opening.

Recommendations

For heavy loads or systems exceeding 500 kg, install the horizontal cable management inside the skeleton to reinforce the structure. Use the swing frame (available for 800 mm wide cabinets) to simplify service on mounted equipment and consider the middle pair of vertical rails for deeper enclosures to improve mounting flexibility.
