Freestanding rack Digitus DN-19 32U-6/6-1

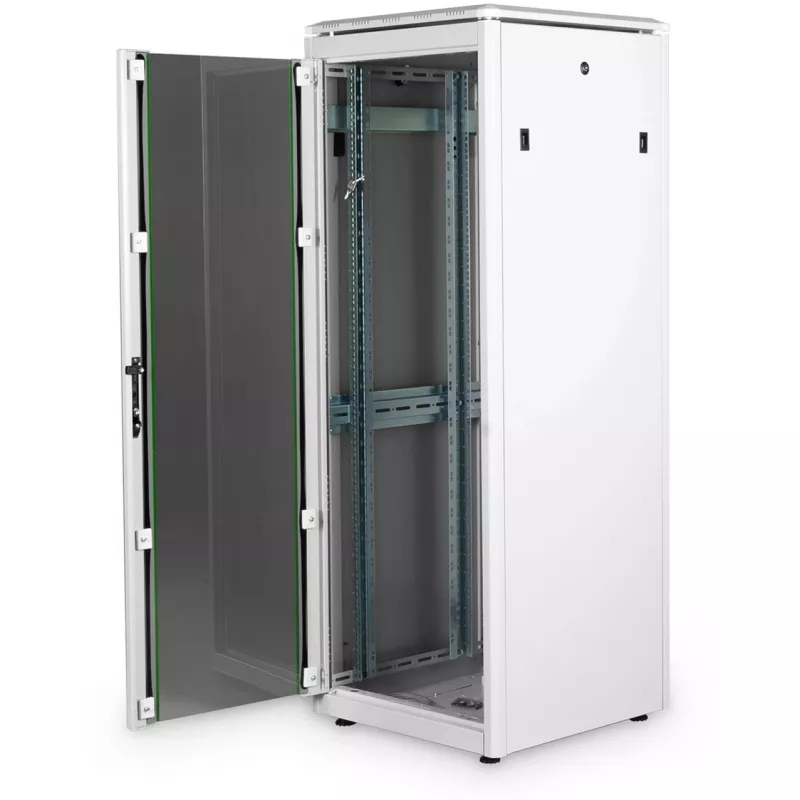

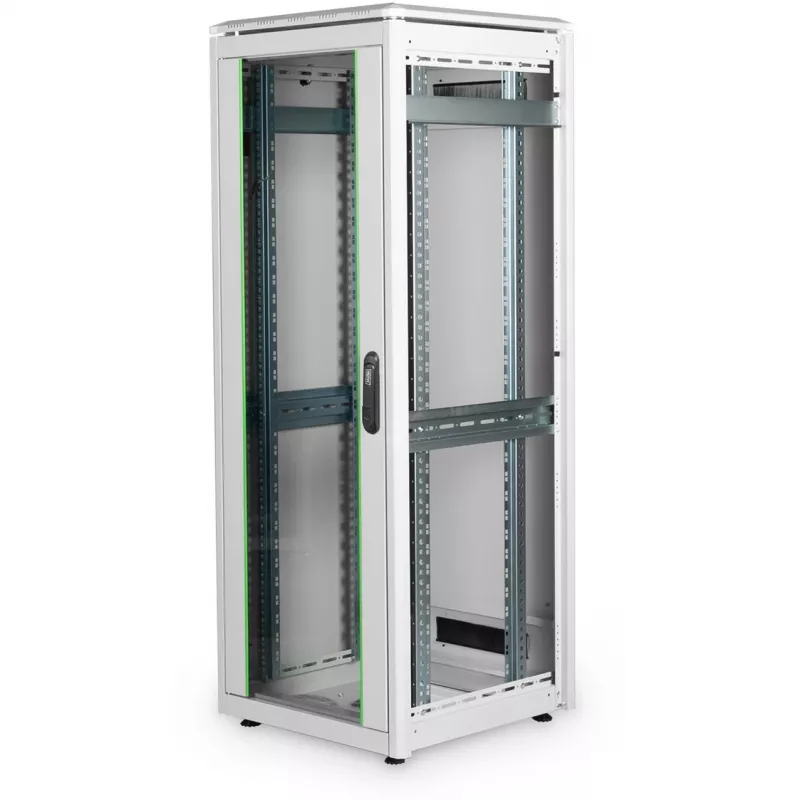

The DIGITUS® Unique Series freestanding rack DN-19 32U-6/6-1 is a 32U network cabinet designed for organised installation and protection of network equipment. Constructed in Germany to high standards, the cabinet has a 600 x 600 mm footprint, a maximum load capacity of up to 800 kg and IP20 protection. The cabinet is made from sheet steel (up to 1.5 mm) with an electrostatic powder coating in grey (RAL 7035). It features removable and lockable side panels and doors, reversible hinges, and two pairs of adjustable 483 mm (19") profile rails with RU markings readable in both directions.

Advantages

The Unique Series rack offers flexible cable management with roof and floor brush inlets, a sliding cable entry with rubber sealing at the base and additional brush management panels at the rear. A special removable roof cover with ventilation slits and a mount for a fan module improves airflow. Vertical cable channels and depth-adjustable rails enhance installation options, while a pivot-lever lock (adapter for profile half cylinder included) and modular removable design simplify access and security.

Suitable for

• Server rooms and small data centres
• Network closets and telecommunications cabinets
• IT infrastructure installations requiring organized cable routing
• Environments needing a 32U, 600×600 mm freestanding rack with IP20 protection

Key specifications

• Model: DIGITUS DN-19 32U-6/6-1
• Height: 32U
• Width: 600 mm
• Depth: 600 mm
• Material thickness: up to 1.5 mm sheet steel
• Load capacity: up to 800 kg
• Protection rating: IP20
• Colour: Grey (RAL 7035)
• 19" profile rails: two pairs, 483 mm, depth-adjustable
• Lock system: pivot lever on front door (adapter for profile half cylinder included)

How to use

Place the freestanding rack on a level surface and assemble side panels, doors and profile rails according to the included instructions. Adjust the 19" profile rails to the required depth and mount equipment using standard 19" fixings. Route cables through the roof and floor brush inlets or the sliding cable entry with rubber sealing. If required, mount the fan module in the removable roof cover and connect it to your power and ventilation scheme.

Recommendations

Use the brush inlets and vertical cable channels to separate power and data cabling where possible, and ensure the cabinet is installed in a ventilated, dust-reduced environment. Observe the 800 kg maximum load and distribute equipment weight evenly across the rails.
