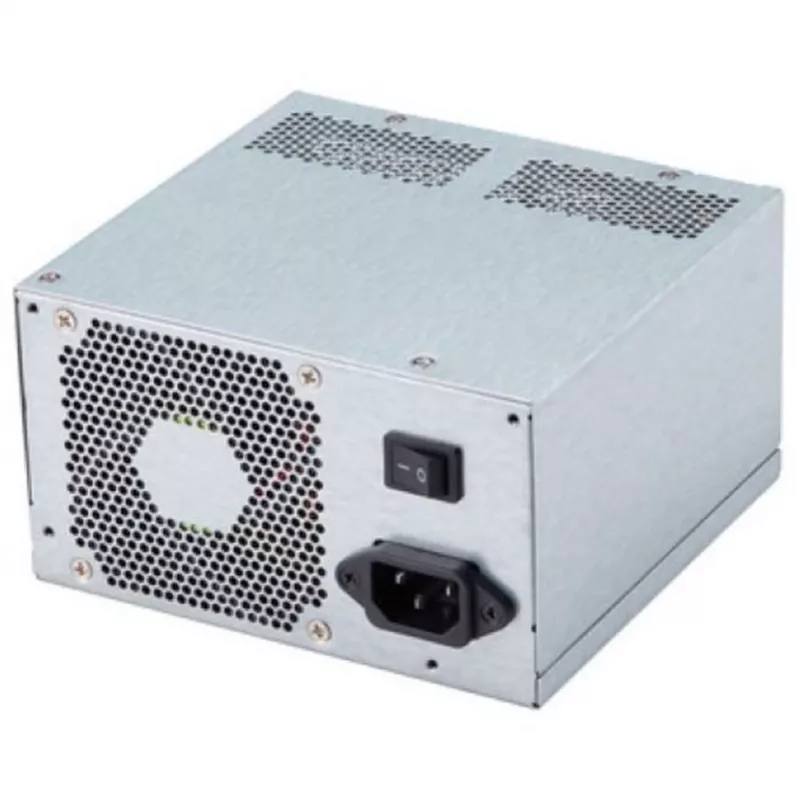

Fortron FSP 500-70PFL (SK) ATX 500W Power Supply 80 PLUS Bronze

The Fortron FSP 500-70PFL (SK) is a reliable and efficient ATX power supply delivering 500W of continuous power. Designed for mainstream desktop systems, it offers stable performance with 80 PLUS Bronze certification, ensuring up to 85% efficiency under typical loads. This non-modular unit features a 120mm sleeve bearing fan for quiet cooling and comprehensive protection circuits for safe operation.

Advantages

With Active PFC and a robust single +12V rail (40A), this PSU provides clean and stable power to your components. The 80 PLUS Bronze certification reduces energy waste and lowers electricity costs. Its compact ATX form factor fits most standard cases, and the included cables cover essential connections for a typical build.

Suitable for

• Home and office PCs
• Entry-level to mid-range gaming systems
• Workstations requiring reliable power

Key specifications

• Total Power: 500W
• Form Factor: ATX
• Efficiency: 80 PLUS Bronze
• PFC: Active
• Modular: Non-Modular
• Fan: 120mm Sleeve Bearing
• Input Voltage: 100-240 VAC
• Input Frequency: 50-60 Hz
• MTBF: 100,000 hours
• Protection: OVP, UVP, OPP, SCP, OTP
• Main Connector: 1x 20+4 Pin
• EPS/ATX 12V: 1x 4+4 Pin
• PCI-E: 2x 6+2 Pin
• SATA: 6x
• Peripheral (Molex): 3x
• Floppy: 1x
• +12V Rail: 40A (480W)
• Certifications: CE, CB, TUV, cTUVus, FCC, EAC, RCM, RoHS, WEEE

Recommendations

For a dependable and efficient power supply that won't break the bank, the Fortron FSP 500-70PFL (SK) is an excellent choice. It delivers clean power, runs quietly, and includes all necessary protections for your valuable components.
