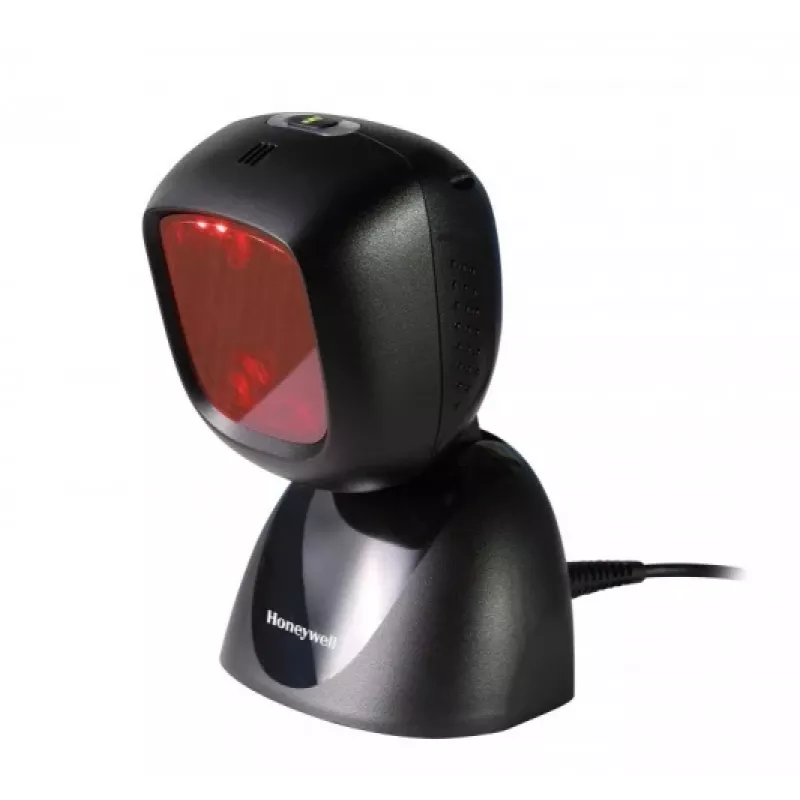

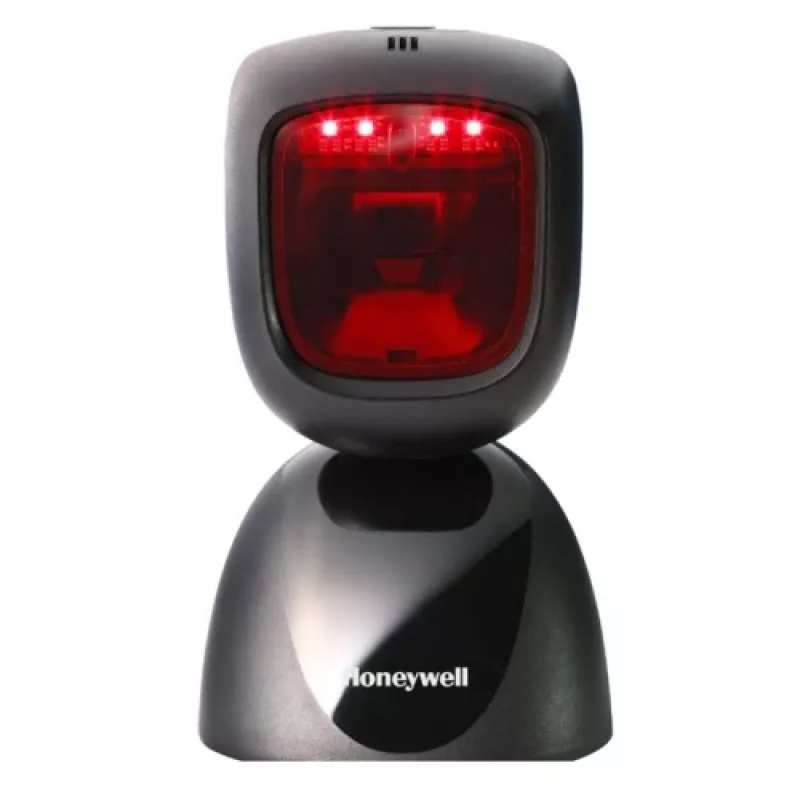

Fixed bar code reader Honeywell Youjie HF600

The Honeywell Youjie HF600 fixed bar code reader delivers stable 1D and 2D scanning performance in a compact, wired unit. Designed for small and medium-sized businesses, the HF600 reads common linear and matrix codes with a photodiode sensor and connects via RS-232, USB or keyboard wedge. Its small footprint (98.2 mm × 87.4 mm), low power consumption and 340 g weight make it suitable for retail counters, kiosks and light industrial environments.

Advantages

The HF600 provides reliable decoding of linear and 2D barcodes such as Code 39, Data Matrix, PDF417 and QR Code while maintaining low power consumption (typical 2 W, standby 0.45 W). Wired connectivity options (RS-232, USB, keyboard wedge) ensure simple integration with existing POS, membership and logistics systems. The compact, black housing and photodiode sensor offer stable performance in constrained installation spaces.

Suitable for

• E-membership card reading
• Mobile coupon scanning
• Warehousing and logistics document control
• Retail POS and kiosk scanning

Key specifications

• Scanner type: 1D/2D
• Sensor type: Photo diode
• Connectivity: Wired (RS-232, USB, keyboard wedge)
• Supported 1D codes: Code 39
• Supported 2D codes: Data Matrix, PDF417, QR Code
• Dimensions (W × D): 98.2 mm × 87.4 mm
• Power: DC, typical 2 W, standby 0.45 W
• Weight: 0.34 kg
• Colour: Black

How to use

Install the HF600 on a stable surface or mount it according to your workstation layout and connect it to the host system using the required wired interface (RS-232, USB or keyboard wedge). Position items so the barcode faces the scanner window; the photodiode sensor will read 1D and 2D codes when brought into the scanning field. Configure host software or POS settings to accept input from the chosen interface and verify successful reads using test barcodes.

Recommendations

For consistent read rates, keep the scanner window clean and ensure barcodes are not excessively damaged or obscured. Use the wired interface that matches your system requirements and verify power supply compatibility (DC) before installation.
