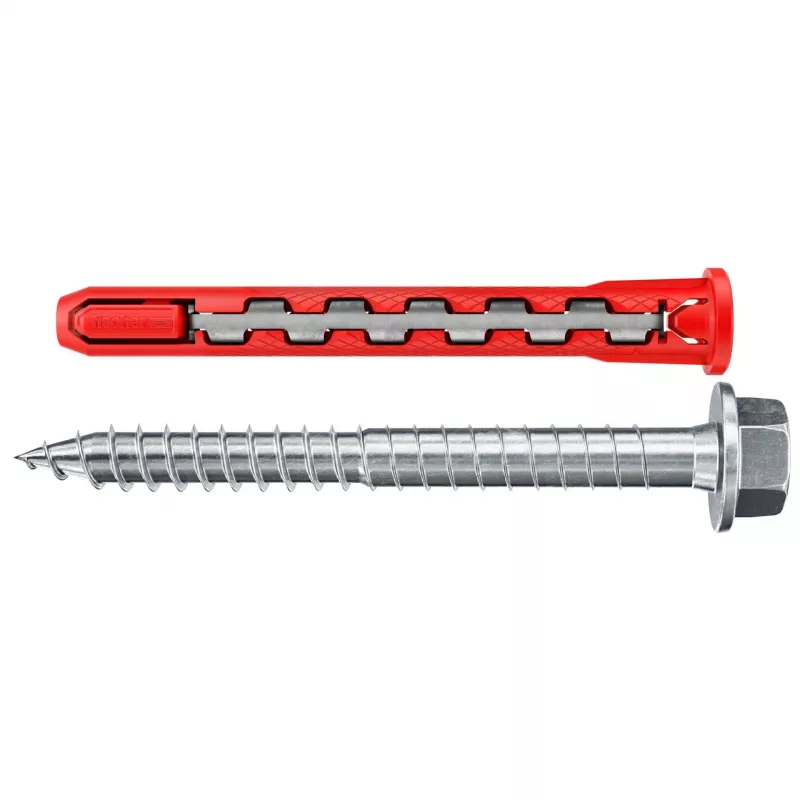

Fischer HybridPower 10x90 FUS Frame Fixing Anchor 10x90 mm

The Fischer HybridPower 10x90 FUS is a high-performance frame fixing anchor designed for secure and reliable fastening of window and door frames, facade sub-constructions, gates, and squared timbers. This innovative hybrid anchor combines a high-quality nylon plug with a galvanized steel screw, offering exceptional load-bearing capacity and ease of installation. With a drill hole diameter of 10 mm and an anchor length of 90 mm, it is suitable for a wide range of base materials including concrete, solid brick, perforated brick, aerated concrete, lightweight concrete, and natural stone.

Advantages

The HybridPower FUS system provides maximum flexibility and safety. Its through-fixing installation method allows for quick and efficient mounting, while the Torx (TX30) drive ensures optimal power transmission and reduces the risk of cam-out. The galvanized steel screw offers reliable corrosion protection, making it suitable for both indoor and outdoor applications. The anchor is approved with ETA (European Technical Assessment), guaranteeing high performance and compliance with European standards.

Suitable for

• Window and door frame installations
• Facade sub-constructions
• Gate and squared timber fastening
• Concrete, solid brick, perforated brick, aerated concrete, lightweight concrete, and natural stone

Key specifications

• Anchor Type: Frame Fixing
• System: HybridPower FUS
• Drill Hole Diameter: 10 mm
• Anchor Length: 90 mm
• Max. Usable Length (Concrete/Solid Brick): 50 mm
• Max. Usable Length (Perforated Brick/Aerated Concrete): 30 mm
• Screw Diameter: 7 mm
• Screw Head Type: Countersunk
• Screw Drive Type: Torx (TX30)
• Material (Plug): High-quality Nylon (Polyamide)
• Material (Screw): Galvanized Steel
• Installation Method: Through-fixing
• Minimum Drill Hole Depth: 100 mm
• Embedment Depth: 40 mm
• Approvals: ETA (European Technical Assessment)
• Corrosion Protection: Galvanized
• Recommended Drill Bit: Hammer drill bit
• Quantity per pack: 1

Recommendations

For optimal performance, ensure the drill hole is clean and free of dust. Use a hammer drill bit of the correct diameter (10 mm) and drill to the minimum depth of 100 mm. The anchor is designed for through-fixing, so the screw can be inserted through the fixture and into the plug. Always follow the manufacturer's installation guidelines for best results.
