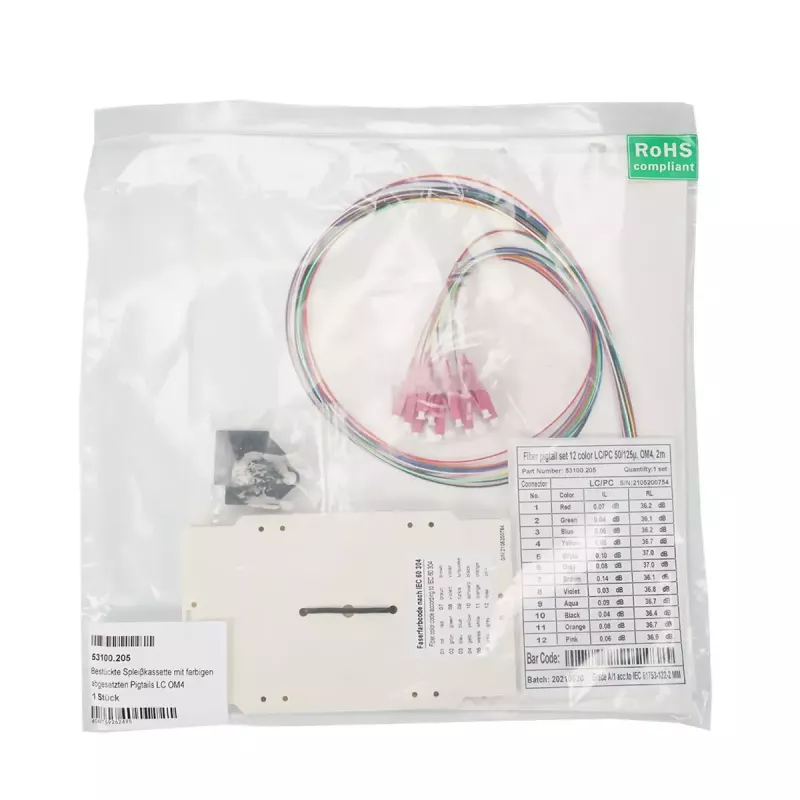

Fibre optic connector EFB Elektronik LC male OM4 model 53100.205

Equipped splice cassette with factory-installed pigtails for fibre types OM3, OM4, OM5, OS2 and OS2/APC. The cassette is available with LC or SC mating faces and includes colour-coded pigtails (VDE-0888) with a twelve-colour jacket. Each pigtail is pre-stripped and routed into the splice cassette with an 80 cm free tail outside the cassette to simplify cable routing within the splice box. Measurement protocols for individual fibres are included in the packaging. The cassette also contains a pre-assembled crimp splice holder for up to 12 splices; shrink splice protectors (2 × 6 splices) are supplied in the package.

Advantages

This splice cassette offers factory-installed, colour-coded pigtails for consistent identification and standard-compliant termination. The 80 cm tails facilitate easy routing and installation in patch panels or splice enclosures. Pre-assembled crimp splice holder and supplied shrink protectors reduce on-site assembly time and help ensure stable, low-loss splices. Delivered measurement protocols provide traceability for each fibre.

Suitable for

• Data centre patch panels and fibre distribution frames
• Telecommunication splice boxes and enclosures
• LAN and short-distance multimode links using OM3/OM4/OM5
• Singlemode deployments using OS2 or OS2/APC

Key specifications

• Fibre types: OM3, OM4, OM5, OS2, OS2/APC
• Mating faces: LC or SC (depending on model)
• Pigtail tail length outside cassette: 80 cm
• Pigtail coding: VDE-0888 colour-coded with 12-colour jacket
• Crimp splice holder: pre-assembled for 12 splices
• Shrink splice protectors: included, 2 × 6 splices
• Documentation: measurement protocols for individual fibres included

How to use

Mount the splice cassette inside the patch panel or splice enclosure compatible with LC or SC mating faces. Route the incoming fibre to the cassette and secure it according to the enclosure manufacturer’s instructions. Prepare fibres for splicing, perform fusion or mechanical splices into the provided crimp holder, and protect each splice with the supplied shrink splice protectors. Route the 80 cm pigtail tails to the patching side and terminate or connect to transceivers, adapters or patch cords as required. Keep the enclosed measurement protocols with the installation record for verification and future maintenance.

Recommendations

Use appropriate fibre handling and ESD precautions during installation. For best results, perform fusion splicing and verify attenuation values using the included measurement protocols; follow manufacturer guidance for bend radius and strain relief to maintain low-loss performance.
