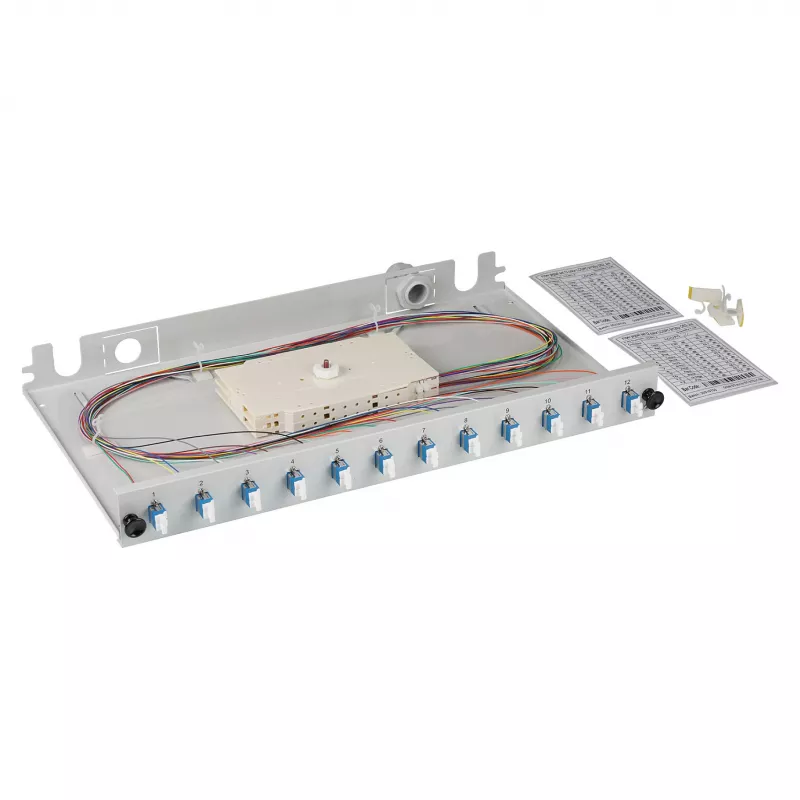

Fiber splice box EFB Elektronik BA71921L24, LC 9/125µm OS2, 24 pigtails separated, 12 couplers, pull-out

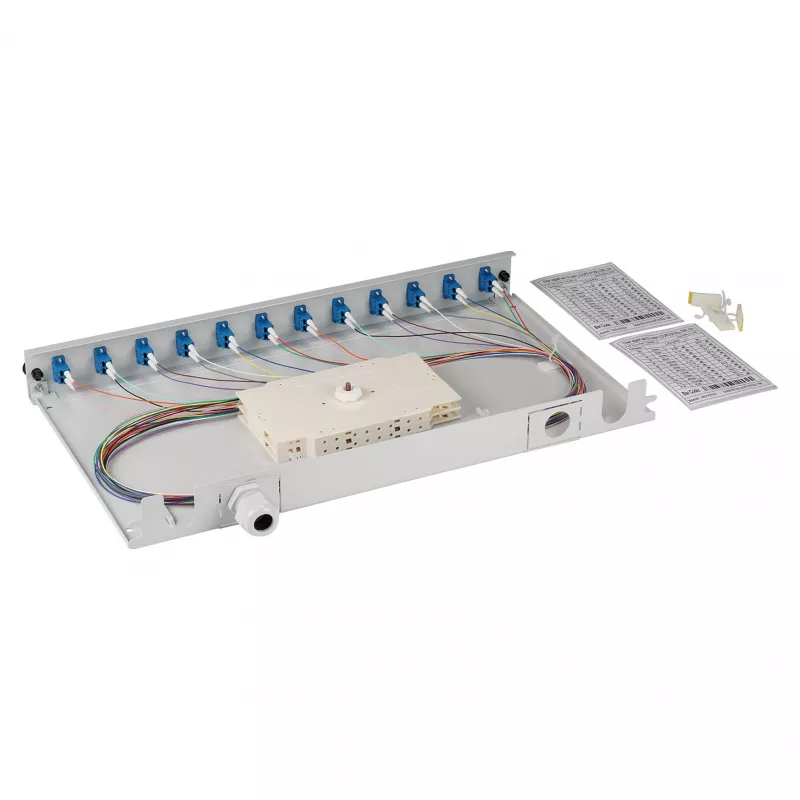

Compact pull-out fiber splice box EFB Elektronik BA71921L24 designed for LC 9/125µm OS2 singlemode cabling. The unit contains 24 separated pigtails and 12 couplers, providing organized splice protection and connector access in confined installation spaces. The pull-out design allows installers to access splices and connectors without disconnecting adjacent cables, while the compact footprint suits wall- or rack-mounted fiber distribution points.

Advantages

The splice box provides a compact, space-efficient enclosure that keeps fiber splices and connectors protected and accessible. Separate pigtails and pre-mounted couplers reduce assembly time and enable straightforward routing and cable management. Its pull-out tray design ensures safe handling of fibers during inspection, maintenance and upgrades, and the durable housing offers mechanical protection in typical indoor network environments.

Suitable for

Key specifications

How to use

Mount the splice box in the chosen wall or rack location and secure it according to local installation practices. Feed incoming fibers into the enclosure through the provided entry points, strip and splice fibers to the internal pigtails, and place splices into the splice holders for protection. Route the pigtails to the mounted LC couplers and snap connectors into place. Use the pull-out tray to access splices and connectors during testing and maintenance; retract the tray when work is complete to restore the compact enclosure footprint.

Recommendations

Handle all fibers with appropriate ESD and eye protection procedures; avoid bending fibers beyond their minimum bend radius and secure cables to reduce strain on splices and connectors. Use within indoor networking environments and follow industry-standard fiber optic installation and testing practices to ensure optimal performance.
