Fiber Optic Splice Box Digitus DN-96321/3

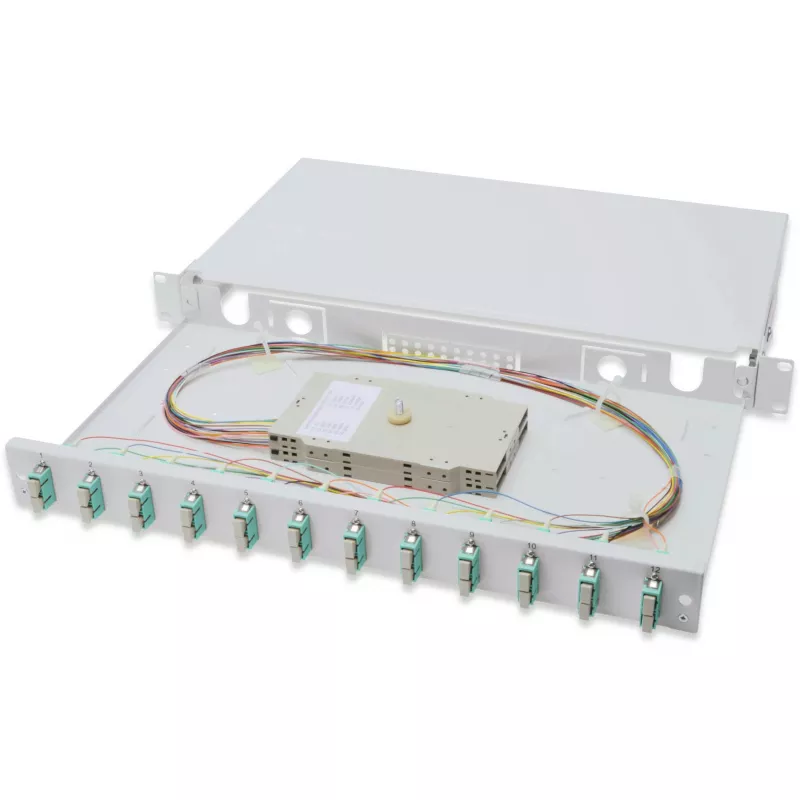

The Digitus Fiber Optic Splice Box DN-96321/3 is a 1U, pre-equipped splice box designed for 12 SC duplex (DX) ports and compatible with OM3 multimode fiber. Housed in a robust steel enclosure, it includes a splice cassette, colored pigtails and SC couplers to provide a compact and protected solution for organizing and terminating fiber splices in racks or wall-mounted installations.

Advantages

The unit combines a space-saving 1U form factor with a sturdy steel housing for mechanical protection and rack compatibility. Pre-installed components—splice cassette, colored pigtails and SC DX couplers—reduce on-site assembly time and simplify deployment. Compatibility with OM3 fibre ensures performance suitable for short-range multimode networks, while the 12x SC DX layout supports common duplex connections.

Suitable for

• Data centers and server rooms for fiber management
• Telecommunications closets and rack installations
• Patch and splice consolidation in structured cabling
• Short-range multimode network links using OM3 fiber

Key specifications

• Model: Digitus DN-96321/3
• Form factor: 1U rack-mountable splice box
• Connector type: 12 × SC duplex (DX) couplers
• Included: splice cassette, colored pigtails, couplers
• Fiber type: OM3 multimode
• Housing material: steel
• Package dimensions (W × D): 315 mm × 515 mm
• Brand: DIGITUS
• MPN: DN-96321/3, EAN: 4016032278351

How to use

Mount the 1U splice box in a standard 19-inch rack or suitable wall bracket. Route incoming fiber cables to the rear or side entry points, secure them with strain relief, and prepare fibers for splicing according to standard fiber splicing procedures. Install splices into the included splice cassette and route pigtails to the front panel SC DX couplers for patching. Close the cover and ensure cables are secured to prevent bending below the specified bend radius.

Recommendations

Handle fiber strands with care and follow industry best practices for cleaning, stripping and splicing. Use appropriate tools for OM3 multimode fiber and maintain minimum bend radii to preserve optical performance. Verify connections with an optical power meter or light source after installation.
