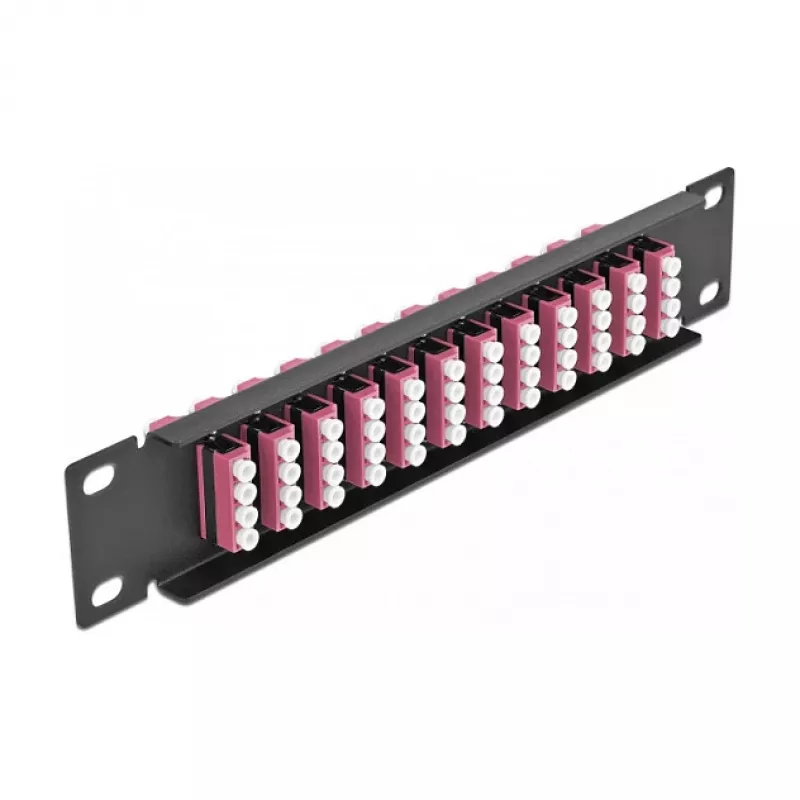

Fiber Optic Patch Panel DeLOCK 10 inch 12 Port LC Quad Violet 1U Black

The DeLOCK 10" Fiber Optic Patch Panel is a 1U rack-mountable unit designed to house twelve LC Quad fiber couplers for organized fiber cable management in 10" network cabinets. Made of durable metal and finished in black with violet accents, the panel provides a compact solution for connecting fiber optic male connectors via LC Quad couplers.

Advantages

The patch panel supports twelve LC Quad ports in a 1U form factor, enabling high-density fiber terminations while saving rack space. Its metal construction ensures mechanical stability and long-term durability. The front-mounted LC Quad couplers allow quick and reliable connections between fiber optic male connectors.

Suitable for

• Data centre fiber management
• Telecommunications and network racks
• Server rooms and IT closets with 10" cabinets
• Environments requiring high-density LC Quad connections

Key specifications

• Brand: DELOCK
• Model / MPN: 66780
• EAN: 4043619667802
• Form factor: 1U, 10" rack mount
• Ports: 12 × LC Quad
• Material: Metal
• Colour: Black with violet accents
• Dimensions (W × H × D): 44 mm × 10 mm × 254 mm

How to use

Install the patch panel into a compatible 10" network cabinet using standard rack screws. Terminate or insert LC Quad fiber optic male connectors into the front couplers to establish connections between fiber cables. Route and secure fiber cables to avoid sharp bends and mechanical strain, and label ports as required for easy identification.

Recommendations

Handle fiber connectors and couplers with care and keep end faces clean to maintain signal quality. Follow standard fiber handling and safety procedures when installing or servicing the patch panel.
