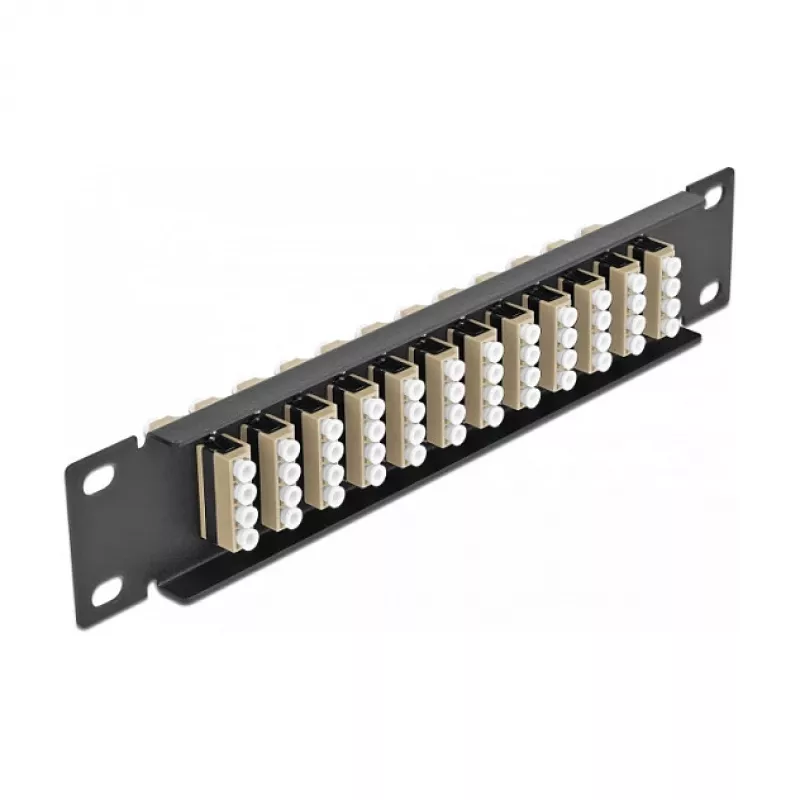

Fiber Optic Patch Panel DeLOCK 10 inch 12 Port LC Quad Beige 1U Black

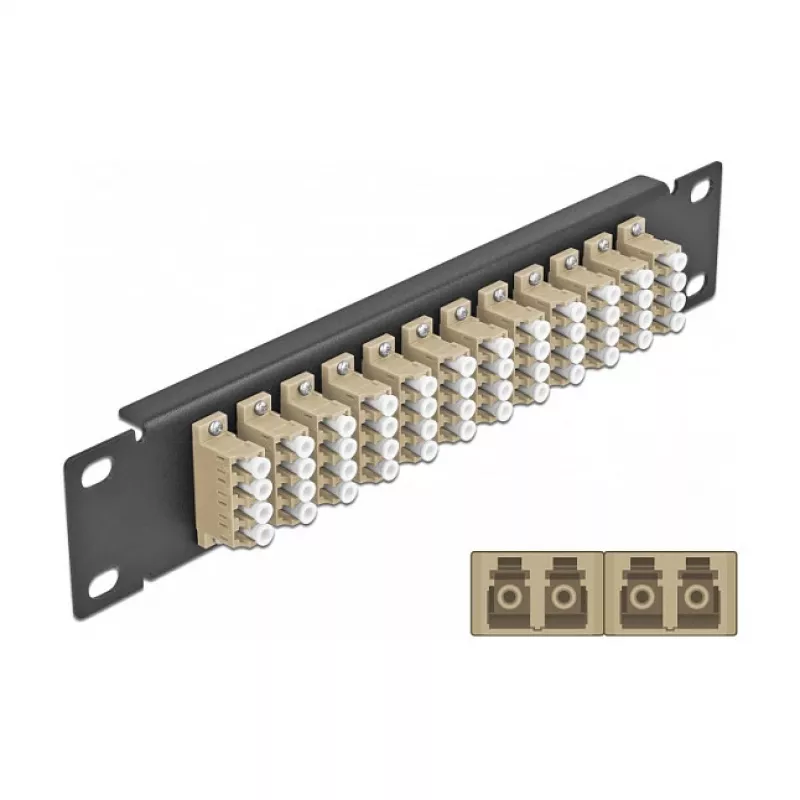

The DeLOCK 10" Fiber Optic Patch Panel provides twelve LC Quad fiber optic couplers in a 1U metal housing for mounting in a standard 10" network cabinet. Designed for organized fiber management, the panel allows simple connection of LC Quad male connectors and is available in a beige front with a black chassis.

Advantages

The patch panel offers 12 LC Quad couplers in a compact 1U format, enabling high-density fiber termination in a single rack unit. Its metal construction ensures durable rack-mounted installation, while the standard 10" form factor and neutral beige/black colour scheme support compatibility with common network environments.

Suitable for

• Data centers and telecom cabinets
• Server rooms and network racks
• FTTx distribution panels and fiber backbone terminations
• Structured cabling installations requiring LC Quad connections

Key specifications

• Model: DeLOCK 10" Fiber Optic Patch Panel
• Ports: 12 × LC Quad couplers
• Rack size: 10" compatible, 1U
• Material: metal housing
• Colours: beige front, black chassis
• Manufacturer MPN: 66778
• EAN: 4043619667789

How to use

Install the 1U patch panel into a compatible 10" network cabinet using standard rack screws. Route fiber cables to the rear or front access points as required by your rack layout and insert LC Quad male connectors into the corresponding LC Quad couplers. Ensure proper cable management and strain relief to maintain connector integrity and signal performance.

Recommendations

For reliable operation, use appropriate fiber cleaning tools before mating connectors and secure cables with strain-relief accessories. Verify compatibility of LC Quad connectors with your transceivers and perform loss testing after installation.
