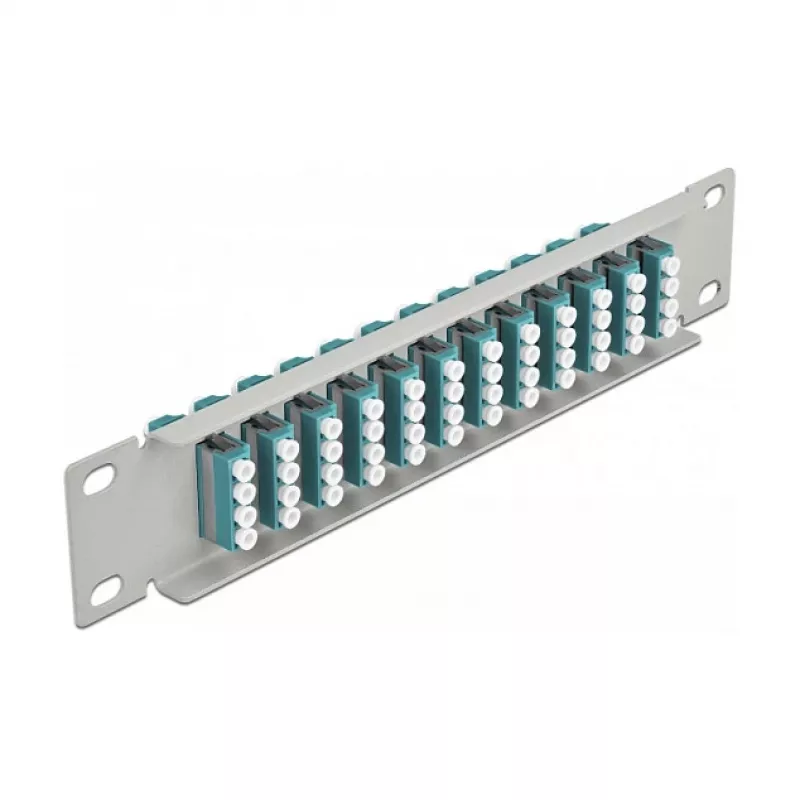

Fiber Optic Patch Panel DeLOCK 10 inch 12 Port LC Quad Aqua 1U Grey

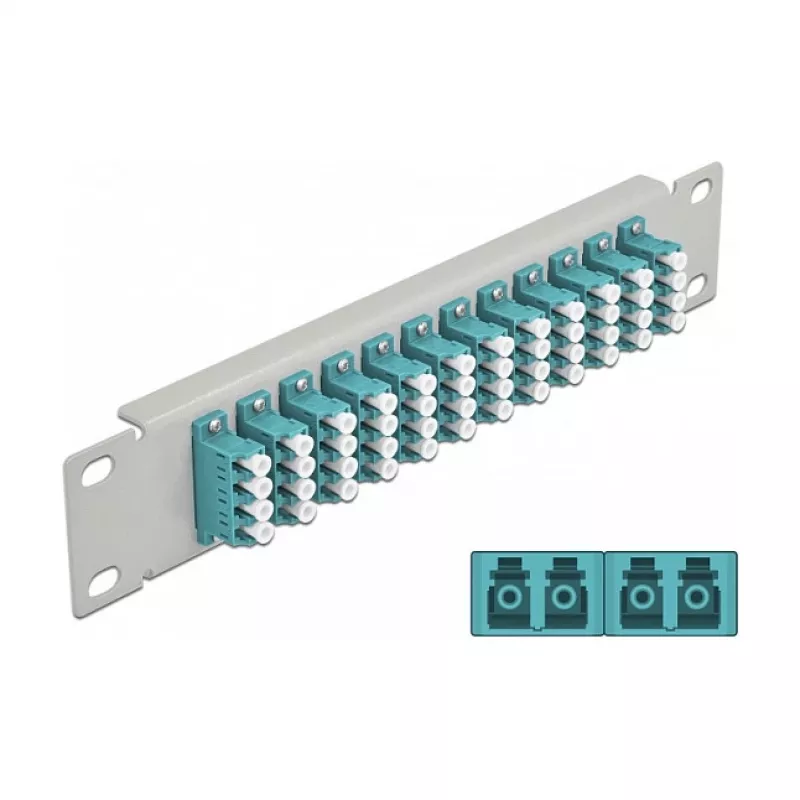

The DeLOCK 10" 12 Port LC Quad Aqua 1U grey fiber optic patch panel provides a compact, rack-mounted solution for organizing and connecting fiber optic cabling. It includes twelve LC Quad couplers, allowing four-fiber LC connector assemblies to be connected through each port. The panel is designed for installation in a standard 10" network cabinet and is built from durable metal with an aqua front and grey chassis.

Advantages

The patch panel supports twelve LC Quad ports in a 1U form factor, enabling high-density fiber connections in limited rack space. Metal construction ensures mechanical stability and reliable rack mounting. Preinstalled LC Quad couplers simplify the termination and connection of multi-fiber LC assemblies.

Suitable for

• Data center fiber distribution and patching
• Server rooms and telecommunication cabinets
• High-density fiber management where space saving is required

Key specifications

• Ports quantity: 12 LC Quad couplers
• Rack size: 10" / 1U
• Material: metal chassis
• Colour: aqua front, grey body
• Dimensions (W×H×D): 44 mm × 10 mm × 254 mm
• Brand: DELOCK, MPN: 66799, EAN: 4043619667994

How to use

Mount the patch panel into a 10" network cabinet using standard rack screws. Route fiber cables to the rear of the panel and terminate them with LC connectors compatible with LC Quad couplers. Insert LC connector assemblies into the front-facing LC Quad couplers to establish connections. Label ports as needed to maintain an organized fiber patching scheme.

Recommendations

Handle fiber connectors and couplers with care to avoid contamination; use dust caps when ports are not in use and perform cleaning before making connections. Ensure bend radius guidelines for your fiber cables are respected during installation and secure cables with proper strain relief.
