Fiber Connector Crimping Kit FOK-XKT14 - Fiber Optic Termination Tool Kit with Cleaver, Power Meter, VFL, Strippers, and Accessories in ABS Case

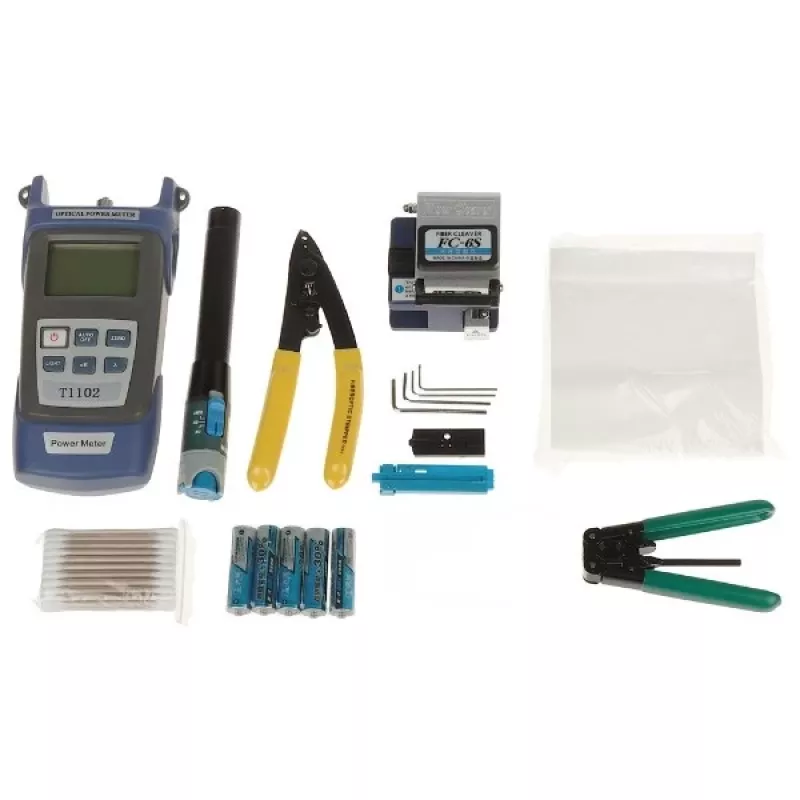

Inconsistent fiber terminations from mismatched or low-quality tools cause costly rework and network downtime. The FOK-XKT14 Fiber Connector Crimping Kit solves this by bundling every essential instrument for fiber optic cable preparation, splicing, and connector termination into one durable ABS carrying case. This all-in-one kit includes a high-precision fiber cleaver rated for up to 48,000 cleaves, an optical power meter covering 850/980/1300/1310/1490/1550/1625 nm with a measurement range of -70 to +10 dBm, and a visual fault locator (VFL) with 650 nm wavelength and 1 mW output for continuity testing and fault location. Cable preparation is handled by a 3-hole fiber optic stripper and a drop cable stripper, while Kevlar shears, an alcohol dispenser, and lint-free wipes ensure clean, reliable splices. The kit supports both single-mode and multi-mode fibers and includes universal 2.5mm (SC, FC, ST) and 1.25mm (LC) adapters for the power meter and VFL. Active tools are powered by AA batteries (not included). With an operating temperature range of -10°C to +50°C, this kit is suitable for both indoor and outdoor use.

Who is it for

Designed for fiber optic installers, network technicians, and maintenance crews who need a portable, all-in-one solution for connector termination and troubleshooting in FTTH, enterprise, and data center environments.

Main features

• High-precision fiber cleaver with blade life up to 48,000 cleaves
• Optical power meter with 7 calibrated wavelengths and wide measurement range
• Visual fault locator (650 nm, 1 mW) for quick fault identification
• Complete cable preparation tools: 3-hole stripper, drop cable stripper, Kevlar shears
• Cleaning accessories: alcohol dispenser and lint-free wipes
• Universal adapters for SC, FC, ST (2.5mm) and LC (1.25mm) connectors
• Durable ABS carrying case for organized transport and storage

Specifications

• Kit type: Fiber optic termination tool kit
• Cleaver blade life: Up to 48,000 cleaves
• Power meter wavelengths: 850/980/1300/1310/1490/1550/1625 nm
• Power meter measurement range: -70 to +10 dBm
• VFL wavelength: 650 nm
• VFL output power: 1 mW (Class II)
• Fiber compatibility: Single-mode (SM) and multi-mode (MM)
• Connector adapters: 2.5mm (SC, FC, ST), 1.25mm (LC)
• Case material: Durable ABS plastic
• Power source: AA batteries (not included)
• Operating temperature: -10°C to +50°C
• Storage temperature: -20°C to +70°C

Tips

Always inspect and clean fiber ends with the included alcohol and wipes before splicing to ensure low loss. For accurate power measurements, select the correct wavelength on the power meter and use the appropriate adapter for your connector type. Store the kit in the ABS case when not in use to protect tools from dust and impact.
