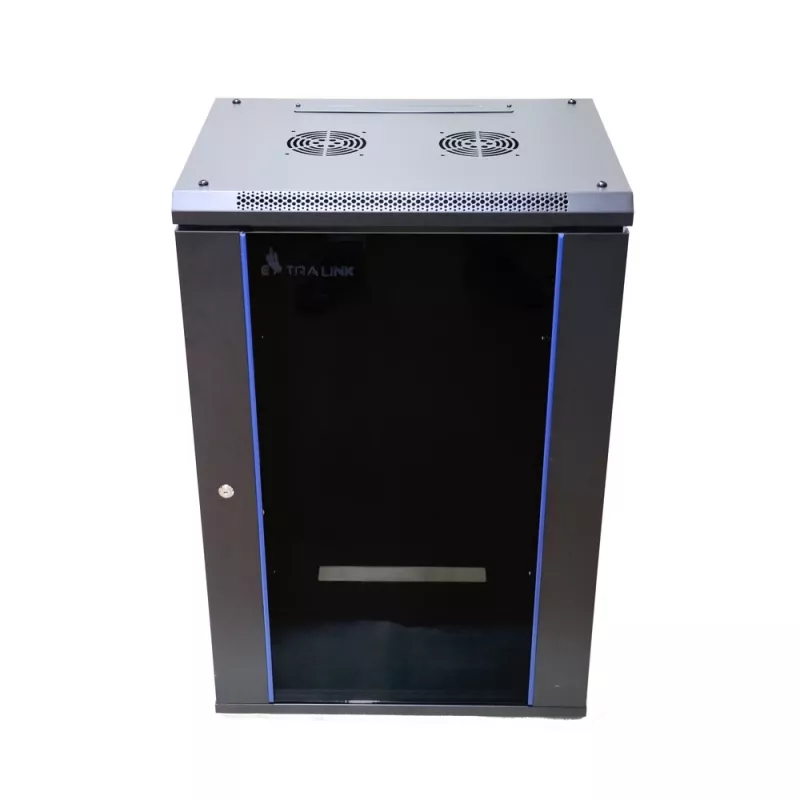

Extralink 18U 600x600 Black Wall-Mounted Rack Cabinet with Glass Door and Key Lock

Network administrators in small offices and branch locations often need a secure, space-saving enclosure for switches, patch panels, and servers. The Extralink 18U wall-mounted rack cabinet answers that need with a sturdy 600x600 mm footprint, tempered glass front door, and key lock. Mount it on the wall to keep critical equipment off the floor and protected from unauthorized access.

Key specifications

• 18U rack capacity, 19-inch standard mounting
• External dimensions: 600 mm width, 600 mm depth, 900 mm height
• Cold rolled steel construction with black powder-coated finish (RAL 9004)
• Tempered glass front door with key lock

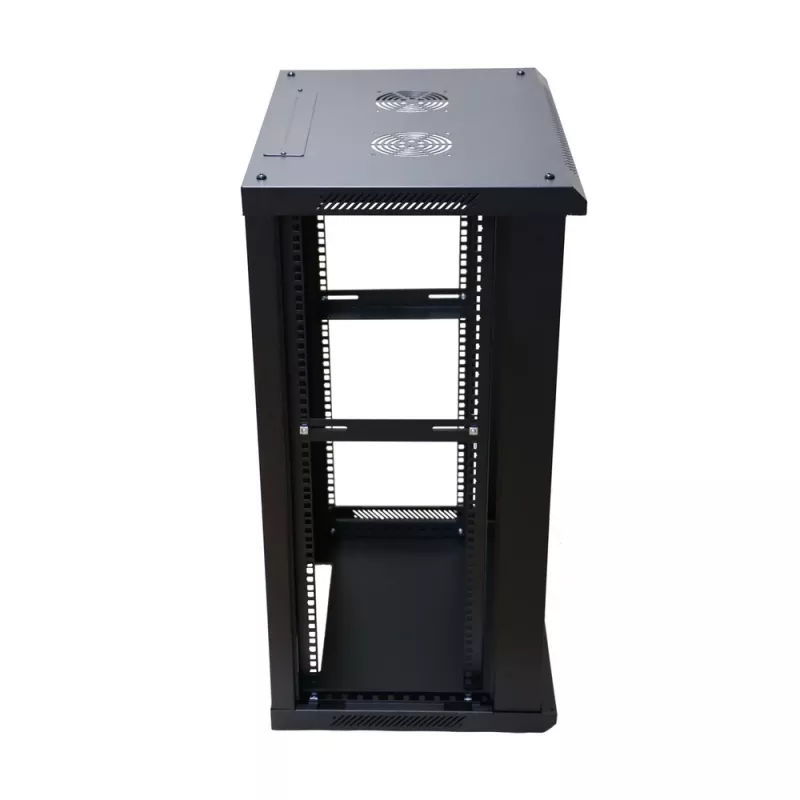

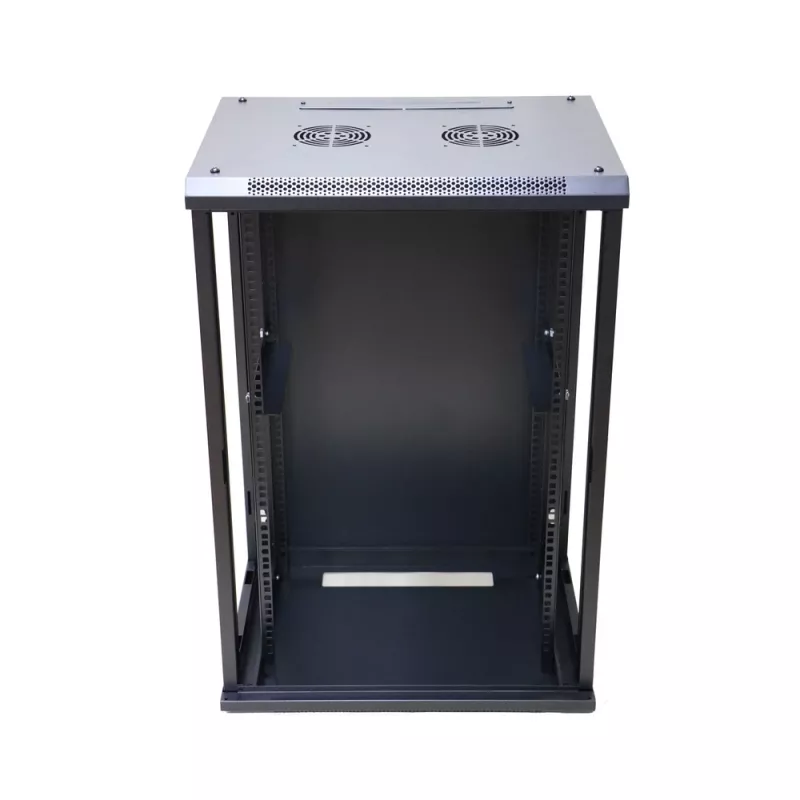

• Removable solid side panels for easy access
• Top and bottom cable entry points
• Load capacity up to 60 kg
• Passive ventilation with provisions for fan mounting
• IP20 protection rating
• Compliant with EIA-310-D and IEC 60297-2
• Flat-pack assembly, includes mounting hardware and 2 keys

Why choose it

This cabinet combines durability with a professional appearance. The tempered glass door allows visual monitoring of equipment status LEDs without opening the cabinet, while the key lock deters tampering. Removable side panels simplify installation and maintenance, and the wall-mount design saves valuable floor space in compact environments.

Ideal use cases

• Small office network closets
• Retail back rooms with limited space
• Branch office server rooms
• Industrial control panels
• Educational facilities

Good to know

The cabinet ships flat-packed for easy transport and requires assembly. All necessary mounting hardware is included, along with two keys for the front door lock. The black powder-coated finish resists scratches and fingerprints, keeping the cabinet looking clean in any setting.
