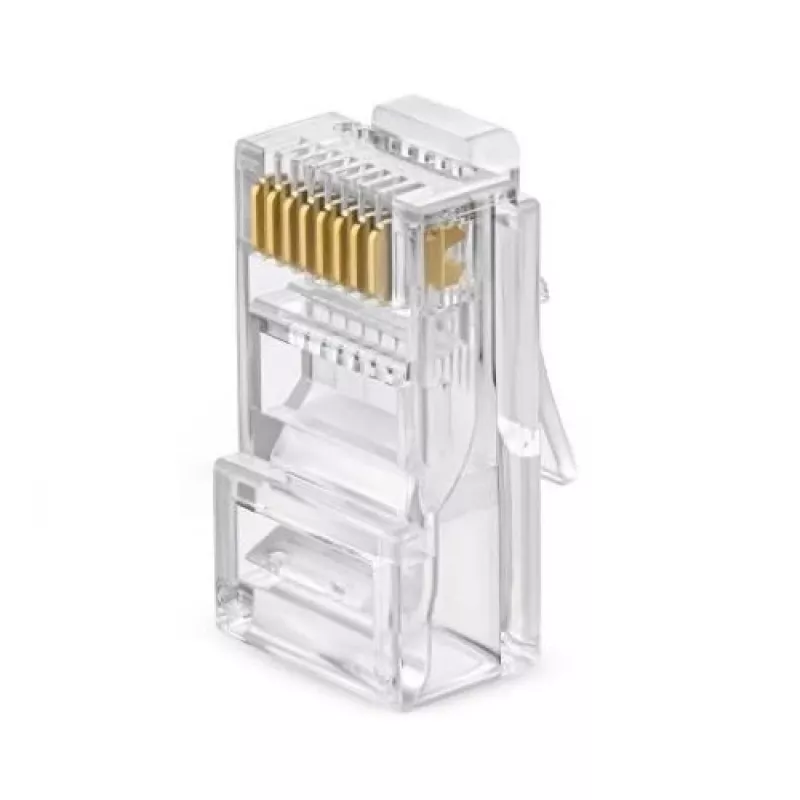

EXTRA DIGITAL RJ45 UTP Cat5e Modular Plug (8P8C, 50µ Gold Plated, 100-Pack)

Built for fast, consistent network installations, this 8P8C modular plug is the go-to choice for assembling custom UTP Cat5e patch cables. Its 50-micron gold-plated contacts ensure corrosion-free signal transfer, while the transparent polycarbonate housing lets you verify the wire pairing at a glance.

Highlights

• RJ45 8P8C connector for UTP Cat5e networks
• 50µm gold-plated contacts for reliable conductivity
• Supports 23–26 AWG solid or stranded conductor
• Transparent housing for easy wire-mapping verification
• Crimp-on termination for quick field assembly
• Pack of 100 connectors for bulk cabling jobs

In daily use

Whether you are building short patch leads or long structured cabling runs, these plugs work with standard crimp tools. The two-piece design secures the cable sheath, reducing strain and ensuring the connector stays in place. After termination, test with a cable tester to confirm pinout and continuity.

Full specifications

• Connector Type: RJ45 (8P8C)
• Category Rating: Cat5e
• Shielding: UTP (Unshielded)
• Contact Plating: 50 µm Gold
• Number of Contacts: 8
• Housing Material: High-Impact Polycarbonate
• Wire Gauge: 23–26 AWG
• Conductor Types: Solid and Stranded
• Termination: Crimp-on
• Data Rate: Up to 1000 Mbps
• Frequency Bandwidth: 100 MHz
• Compliance: TIA/EIA-568-C.2, RoHS
• Colour: Transparent
• Operating Temperature: -10°C to 60°C
• Durability: 750 mating cycles
• Pack Quantity: 100

Final note

These plugs are compatible with standard RJ45 crimp tools and are suitable for both home and enterprise network builds. For best results, pair them with quality Cat5e UTP cable and perform a quick continuity test after crimping.
