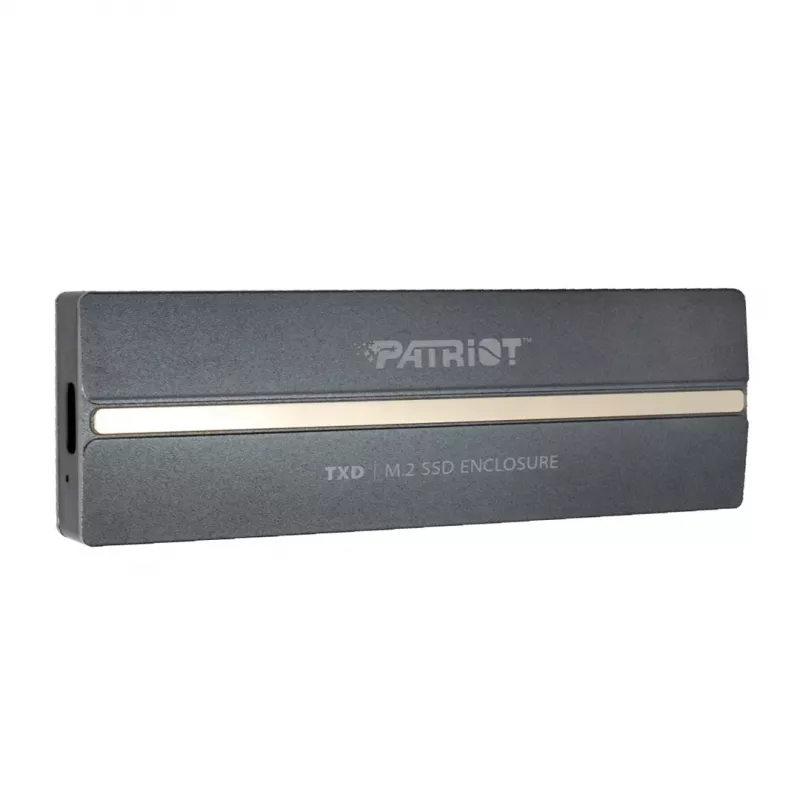

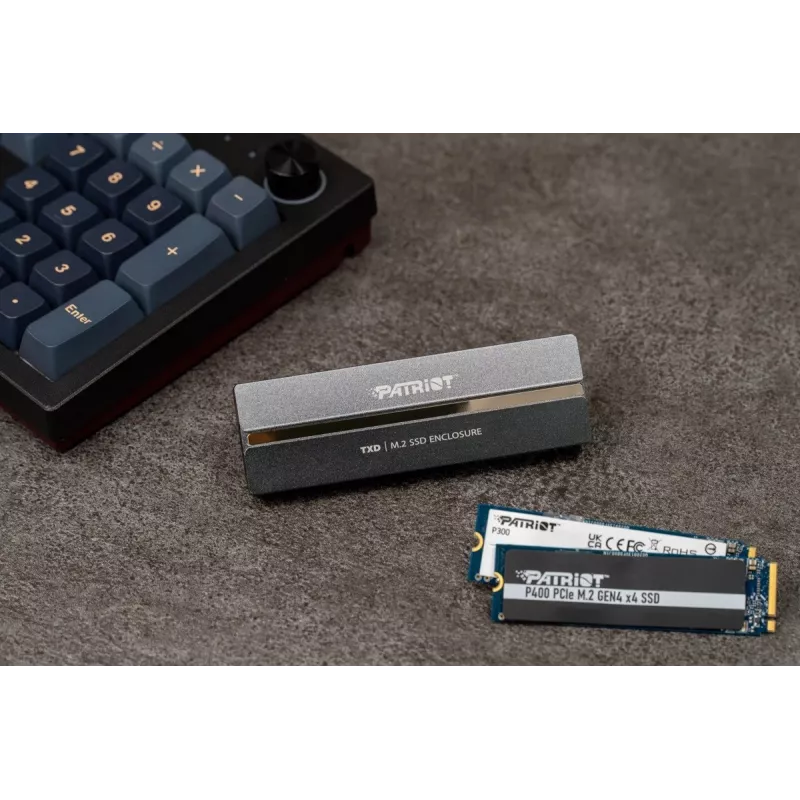

External NVMe M.2 PCIe SSD Enclosure PATRIOT PV810UPNGM — USB-C 3.2 Gen 2, supports 2230/2242/2260/2280, up to 8 TB, aluminium, grey

PATRIOT PV810UPNGM is an external NVMe M.2 PCIe SSD enclosure with a USB‑C (USB 3.2 Gen 2) interface. It supports M.2 NVMe drives in sizes 2230, 2242, 2260 and 2280 with capacities up to 8 TB, and delivers read and write performance around 1000 MB/s. The enclosure has an aluminium housing in grey and includes vibration‑proof protection while remaining lightweight for portable use.

Advantages

The aluminium housing provides durability and heat dissipation while keeping the unit lightweight. USB‑C (USB 3.2 Gen 2) delivers high transfer speeds for NVMe drives, and broad OS compatibility ensures plug‑and‑play use with Windows, macOS, Linux and Android devices. The enclosure supports multiple M.2 lengths, offering flexibility when installing various NVMe SSDs.

Suitable for

• Expanding external storage for laptops and desktops
• Fast file transfers and backups
• Portable working with large media files (photo/video editing)
• Migrating or testing M.2 NVMe SSDs

Key specifications

• Interface: USB‑C (USB 3.2 Gen 2)
• Supported drive type: M.2 NVMe (PCIe 3.0 x4, NVMe 1.3)
• Compatible M.2 sizes: 2230, 2242, 2260, 2280
• Maximum supported capacity: 8 TB
• Typical read speed: ~1000 MB/s
• Typical write speed: ~1000 MB/s
• Material: Aluminium housing
• Protection: Vibration proof
• Colour: Grey
• Dimensions (H×W×D): 33 × 102.5 × 13 mm
• Weight: 45.4 g

How to use

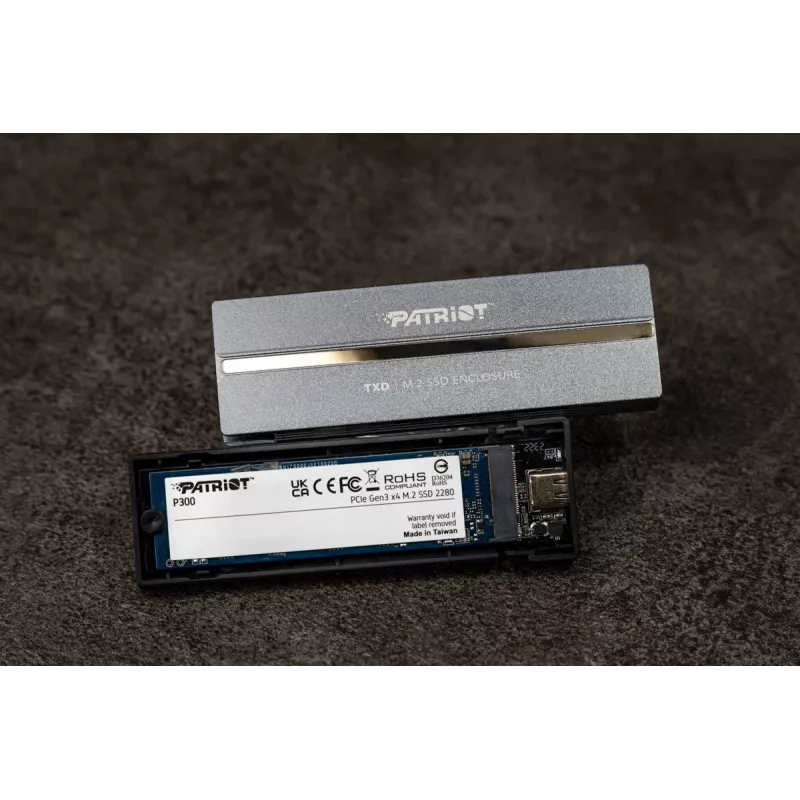

Open the enclosure following the manufacturer’s instructions, insert a compatible M.2 NVMe SSD (2230/2242/2260/2280) into the M.2 slot, secure the drive with the provided screw or mounting post, then close the enclosure. Connect the enclosure to a host device using a USB‑C cable supporting USB 3.2 Gen 2. The device should be detected by Windows, macOS, Linux or Android; format the drive in the desired file system if required before use.

Recommendations

For optimal thermal performance, avoid prolonged heavy transfers in poorly ventilated environments. Use a quality USB‑C cable rated for USB 3.2 Gen 2 to ensure full data rates. Regularly back up important data and ensure the installed NVMe SSD is compatible with PCIe 3.0 x4 and NVMe 1.3 specifications.
