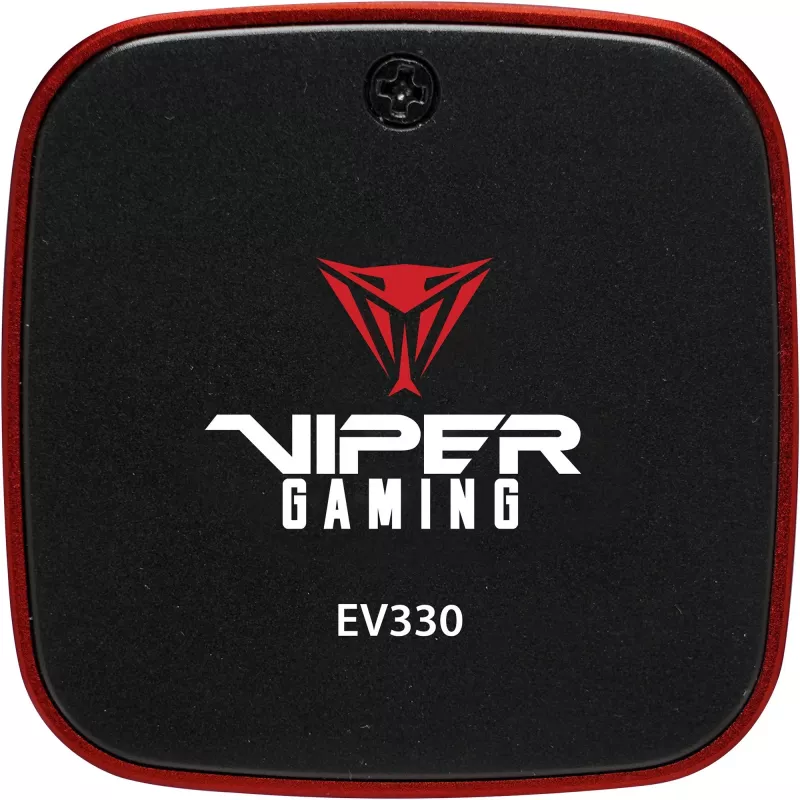

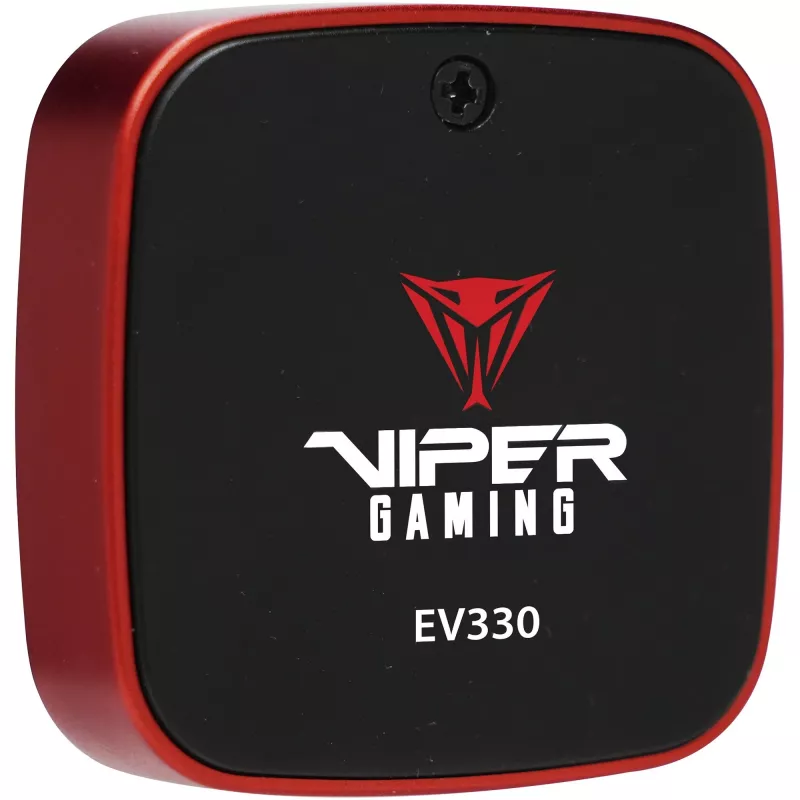

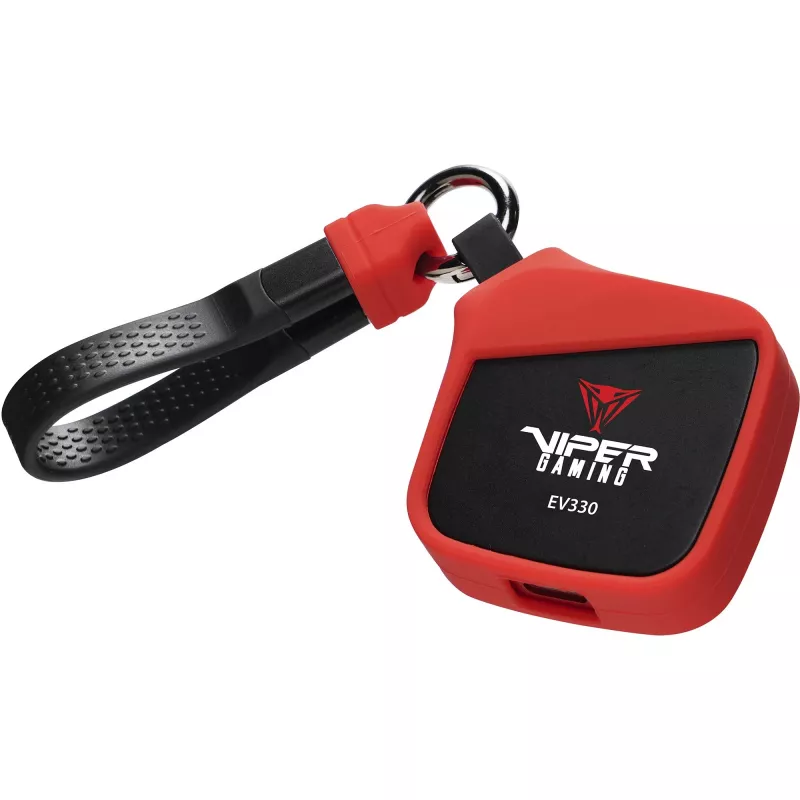

External M.2 NVMe Enclosure PATRIOT EV330U31CK for 2230 SSD, USB Type-C 3.2 Gen2 10Gbps

PATRIOT EV330U31CK is an external enclosure designed specifically for M.2 2230 NVMe SSDs. The enclosure converts a compact NVMe module into a USB Type-C 3.2 Gen2 portable drive, supporting data transfer rates up to 10 Gbps. Bus-powered and lightweight, it enables direct connection to laptops and desktops with a USB-C port, offering quick file transfers, convenient backups and portable system storage without additional power adapters.

Advantages

The enclosure supports NVMe protocol for fast sequential and random read/write performance when paired with a compatible 2230 SSD and a USB-C 3.2 Gen2 host. Its compact form factor conserves desk and travel space while remaining sturdy enough for regular handling. With bus-powered operation there is no need for an external power supply, and the USB Type-C interface provides reversible connection and broad compatibility with modern systems. Tool-free or minimal-tool installation simplifies swapping or installing the SSD.

Suitable for

• Expanding laptop or desktop storage using a compact 2230 NVMe SSD
• Fast file transfers between systems with USB-C 3.2 Gen2 ports
• Portable backups and on-the-go access to large data sets
• Testing, cloning or troubleshooting M.2 2230 NVMe SSDs

Key specifications

• Form factor supported: M.2 2230 (NVMe)
• Interface to host: USB Type-C 3.2 Gen2 (up to 10 Gbps)
• Drive interface inside: NVMe over PCIe
• Power: Bus-powered via USB-C (no external adapter required)
• Physical: compact, lightweight enclosure suitable for portable use
• Installation: user-installable M.2 2230 module

How to use

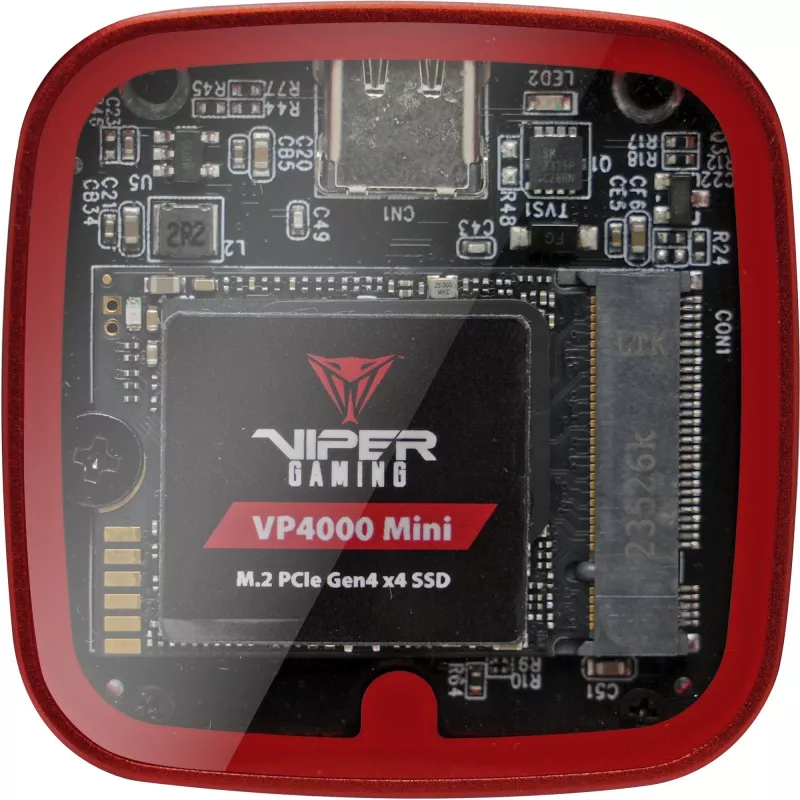

Open the enclosure following the included mechanical instructions, insert an M.2 2230 NVMe SSD into the M.2 slot at the correct angle, and secure it with the provided screw or retention mechanism. Close the enclosure and connect it to a computer using a USB Type-C cable. The host operating system should recognize the NVMe SSD as an external drive; if necessary, initialize or format the drive in the operating system’s disk management utility before first use. Safely eject the device from the OS before disconnecting to avoid data corruption.

Recommendations

Use a USB-C 3.2 Gen2 port on the host for maximum throughput and ensure the installed M.2 module is a 2230 NVMe SSD. Keep the enclosure ventilated during sustained heavy transfers and avoid excessive shock or moisture. For frequent swapping of drives, handle the M.2 module by its edges and store unused modules in anti-static packaging.
