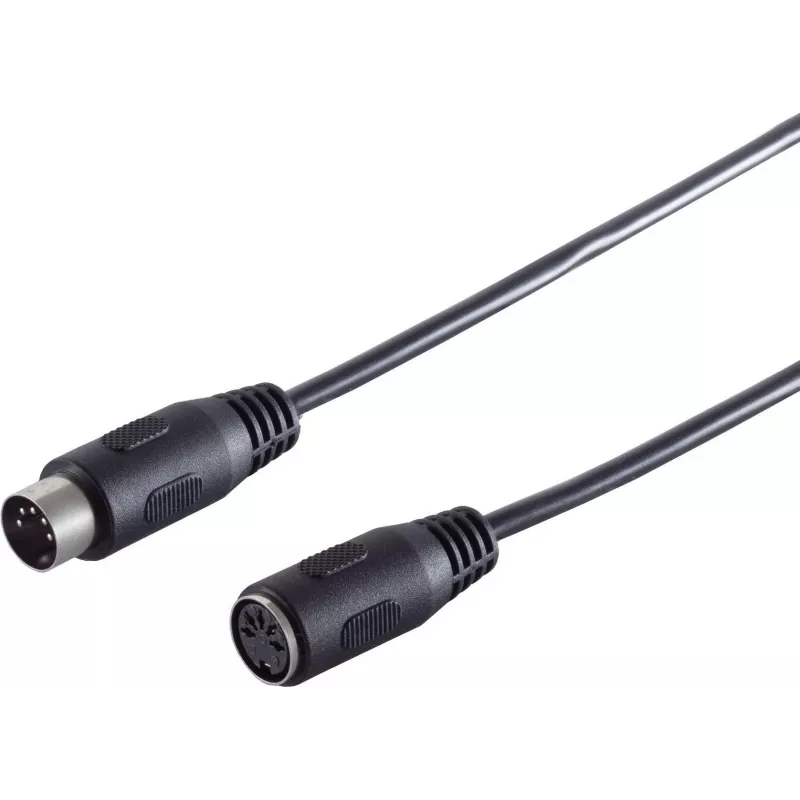

Extension cable ShiverPeaks 10102 — 5-pin Diodenkabel-DIN connector

ShiverPeaks 10102 is a 1.5 m extension cable with a 5-pin Diodenkabel-DIN connector designed to extend and preserve existing 5-pin DIN connections. The cable maintains the original pinout so connected devices continue to operate without rewiring. It is intended for situations where additional reach or flexible placement is needed for audio, control or signal equipment that uses a 5-pin DIN interface.

Advantages

The extension cable preserves the original 5-pin DIN pinout and ensures reliable signal continuity between devices. Its fixed 1.5 m length provides a predictable extension distance while minimizing signal degradation for short-range connections. The plug-and-play design requires no modifications to existing wiring and supports straightforward installation for both temporary setups and permanent rearrangements.

Suitable for

• Extending connections between audio devices that use 5-pin DIN interfaces
• Repositioning control or signal components in studio or stage setups
• Temporary or permanent extension of legacy equipment with 5-pin DIN connectors

Key specifications

• Connector type: 5-pin Diodenkabel-DIN plug to 5-pin Diodenkupplung (coupling)
• Cable length: 1.5 m
• Pinout: preserves original 5-pin DIN wiring
• Application: audio, control and low-voltage signal transmission
• Installation: plug-and-play, no soldering or rewiring required

How to use

Connect the 5-pin plug of the extension cable to the source device and attach the coupling end to the receiving device or to an existing 5-pin DIN cable. Ensure connectors are aligned and fully seated to maintain proper pin contact. Route the cable to avoid sharp bends and excessive tension. If used in permanent installations, secure the cable with clips or ties to prevent strain on connectors.

Recommendations

For best performance, keep the extension length as short as required and avoid running the cable alongside high-voltage power lines to reduce potential interference. Inspect connectors periodically for corrosion or wear and replace the cable if signal issues occur.
