Extender EK Water Blocks Quantum Torque Extender Rotary MM 14

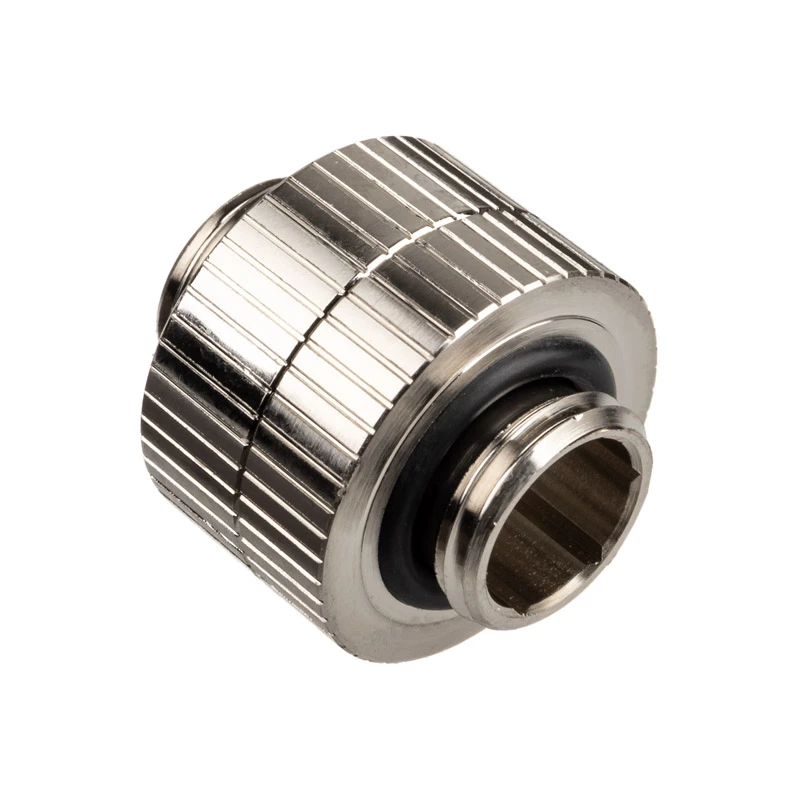

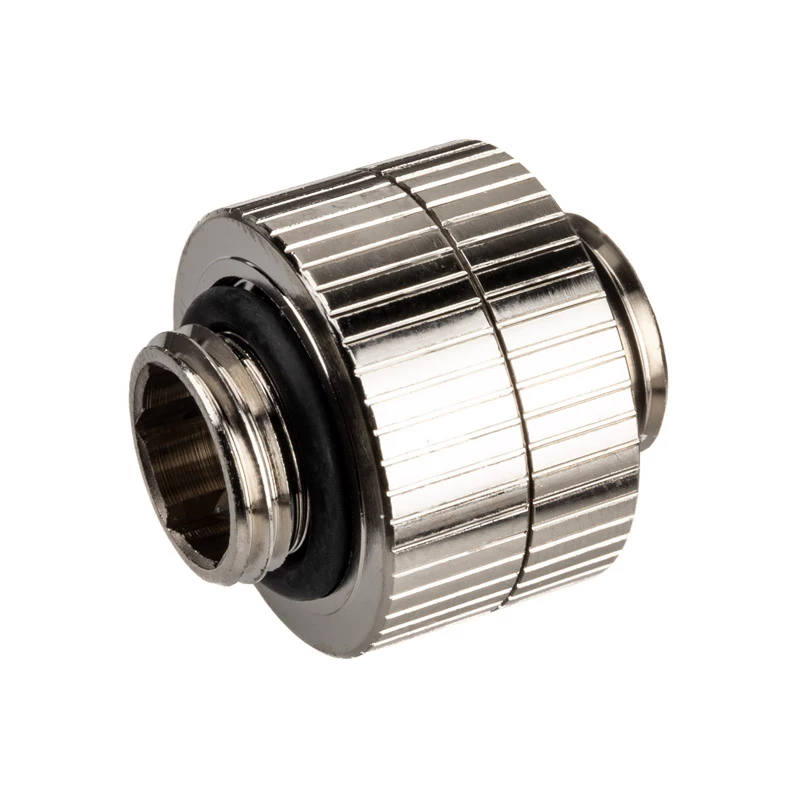

EK-Quantum Torque Extender Rotary MM 14 is a revolvable male-to-male threaded extender designed to connect two water-cooling components with female G1/4" threads. Machined from nickel-plated brass and sealed with EPDM O-rings, the extender provides a rotatable connection that helps route tubing and align fittings in custom PC liquid cooling loops.

Advantages

The nickel-plated CNC-machined brass construction ensures mechanical strength and corrosion resistance, while EPDM O-rings provide reliable sealing. The rotary design allows rotation after installation for easier alignment without twisting tubing. Part of the Torque series, it follows an industrial aesthetic and supports an optional color ring for personalization.

Suitable for

• Connecting two components with female G1/4" ports
• Aligning and routing tubing in custom PC water-cooling loops
• Installations requiring a rotatable male-to-male connection

Key specifications

• Thread type: male G1/4" on both ends
• Material: nickel-plated brass (CNC machined)
• Sealing: EPDM O-rings
• Function: rotatable (revolvable) extender
• Outer diameter (approximate): 23 mm

How to use

Thread the extender into the female G1/4" ports of the two components and hand-tighten until seated. After initial tightening, rotate the extender to achieve the desired alignment of tubing and fittings. For increased torque, use an appropriate wrench or EK-Loop Multi Allen Key / 9 mm Allen key (not included) with care to avoid over-tightening.

Recommendations

Use compatible G1/4" fittings and hand-tighten first; verify O-ring seating and perform a leak test before powering the system. Avoid excessive force when using tools to prevent damage to threads or O-rings.
