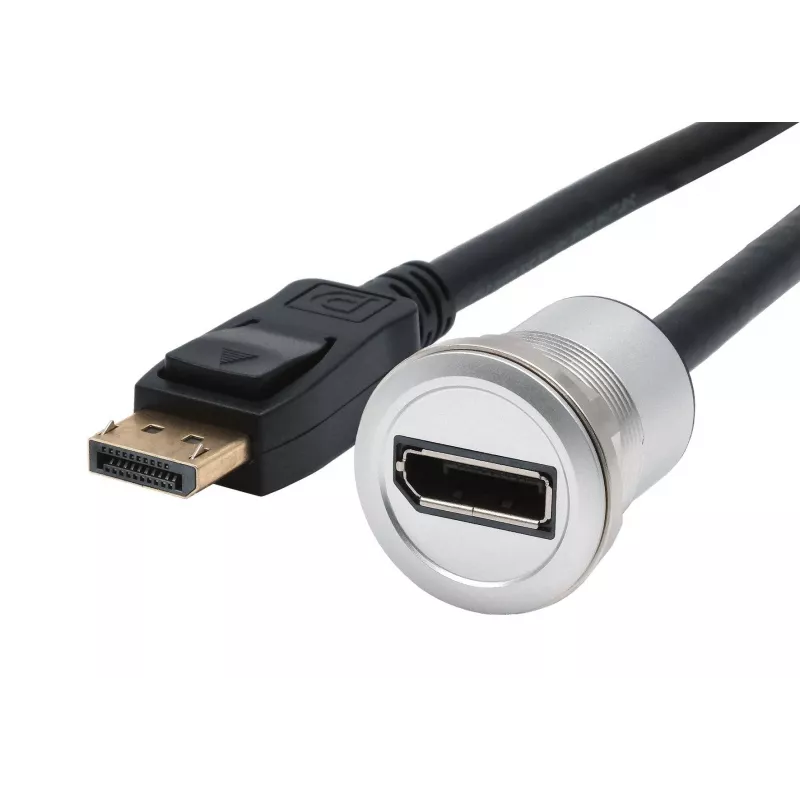

EXSYS EX-49185 Panel Mount DisplayPort Adapter Cable, 30 cm, Male to Female, Metal Housing, 4K 60Hz

Integrating a DisplayPort connection into a device chassis or wall plate often leaves you with a flimsy, unreliable port that can't withstand repeated plugging. The EXSYS EX-49185 solves this by providing a robust panel mount adapter with a metal female socket that screws securely into your enclosure, giving you a professional, durable connection point for your DisplayPort devices.

Who is it for

This adapter is ideal for system integrators, AV installers, and IT professionals who need to add a DisplayPort interface to a custom enclosure, server rack, kiosk, or wall plate. It's perfect for anyone who requires a clean, fixed mounting solution without sacrificing signal quality.

Main features

• Panel mount female DisplayPort connector with metal housing for durability
• Male DisplayPort connector on the other end for direct connection to internal hardware
• 30 cm cable length for flexible routing inside enclosures
• Supports DisplayPort 1.2 with resolutions up to 4K UHD (3840 x 2160) at 60Hz
• High data rate of 21.6 Gbps (HBR2) for smooth video and audio
• HDCP compliant for protected content playback
• Triple shielded cable to minimize electromagnetic interference
• Plug and play – no drivers required

Specifications

• Connector A: DisplayPort Male
• Connector B: DisplayPort Female (Panel Mount)
• Cable Length: 30 cm
• DisplayPort Standard: 1.2
• Max Resolution: 3840 x 2160 @ 60Hz
• Max Data Rate: 21.6 Gbps
• HDCP Support: Yes
• Audio Support: Yes, digital audio
• Connector B Housing Material: Metal
• Cable Colour: Black
• Mounting Type: Screw-on (screws not included)
• Backward Compatibility: DisplayPort 1.1a
• Video Features: Deep Color, Multi-Stream Transport (MST)
• Cable Shielding: Triple Shielded

Tips

Ensure the panel cutout matches the dimensions of the female connector housing. For a secure installation, use appropriate screws (not included) to fasten the connector to your panel. This adapter is ideal for extending a DisplayPort port from a motherboard or graphics card to a convenient location on your case or wall.
