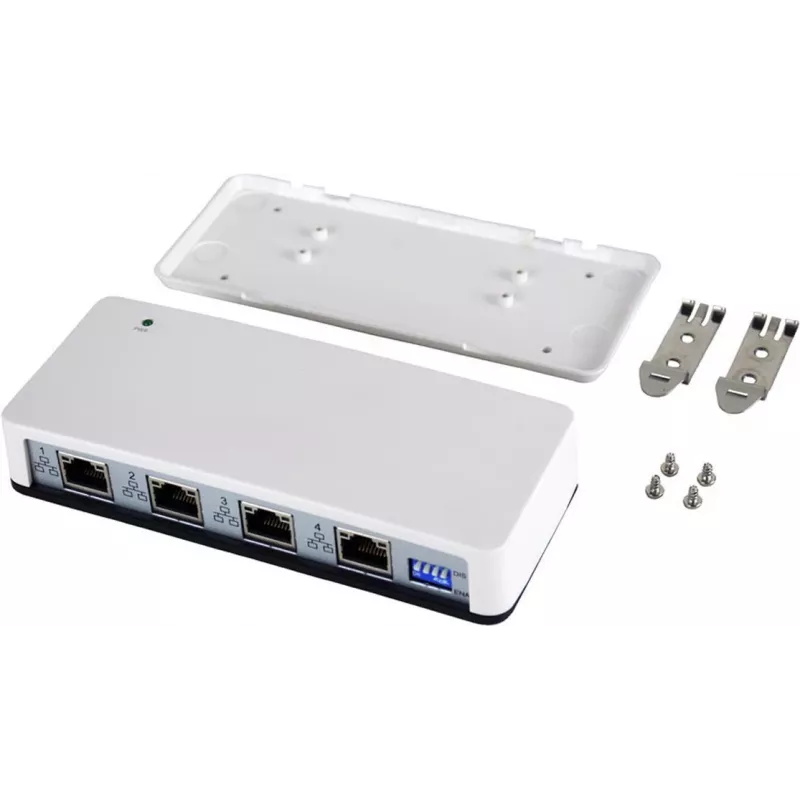

EXSYS EX-1329 USB-C 3.1 Gen 1 to 4-Port Gigabit Ethernet Adapter

Expand your device's network connectivity with the EXSYS EX-1329, a robust USB-C 3.1 Gen 1 adapter that adds four independent Gigabit Ethernet ports. Each port delivers up to 1000 Mbps, making it ideal for high-speed data transfers, network segregation, or connecting multiple networks simultaneously. The compact aluminum housing ensures durability and efficient heat dissipation, while the integrated 15 cm USB-C cable provides a secure, tangle-free connection.

Advantages

Four Gigabit Ethernet ports over a single USB-C connection eliminate the need for multiple adapters. The USB 3.1 Gen 1 interface provides ample bandwidth (5 Gbps) to support full-speed operation on all ports. Auto MDI/MDIX and Wake-on-LAN support simplify setup and enable remote management. The metal housing offers superior protection and thermal performance, ensuring long-term reliability in demanding environments.

Suitable for

• Laptops and ultrabooks with limited built-in Ethernet ports
• IT professionals requiring multiple isolated network connections
• Industrial PCs and embedded systems needing reliable wired networking
• Virtualization environments where separate NICs are beneficial
• Users seeking a durable, bus-powered network expansion solution

Key specifications

• Host Interface: USB-C 3.1 Gen 1 (USB 3.0 compatible)
• Network Interface: 4 x Gigabit Ethernet (RJ-45)
• Chipset: Realtek RTL8153B (x4)
• Data Rates: USB up to 5 Gbps; Ethernet up to 1000 Mbps per port
• Network Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3az
• Features: Auto MDI/MDIX, Wake-on-LAN, Jumbo Frames (up to 9K), Full/Half Duplex
• Power: USB-C bus-powered; optional 5V/2A DC input (adapter not included)
• Housing: Aluminum
• Integrated Cable Length: 15 cm
• LED Indicators: Link/Activity per port
• OS Compatibility: Windows 7/8/10/11, macOS 10.10+, Linux Kernel 3.2+

Recommendations

For maximum performance, connect the adapter directly to a USB-C port on your computer. If using a USB-A port, a USB-C to USB-A adapter is required but may limit bandwidth. The optional external power supply is recommended when connecting power-hungry devices to the Ethernet ports. Install the latest drivers from the Realtek website for optimal compatibility and feature support.
