EV charging station QOLTEC 52430 22 kW Wi‑Fi RFID 3‑phase, 32 A, Type 2, IP54

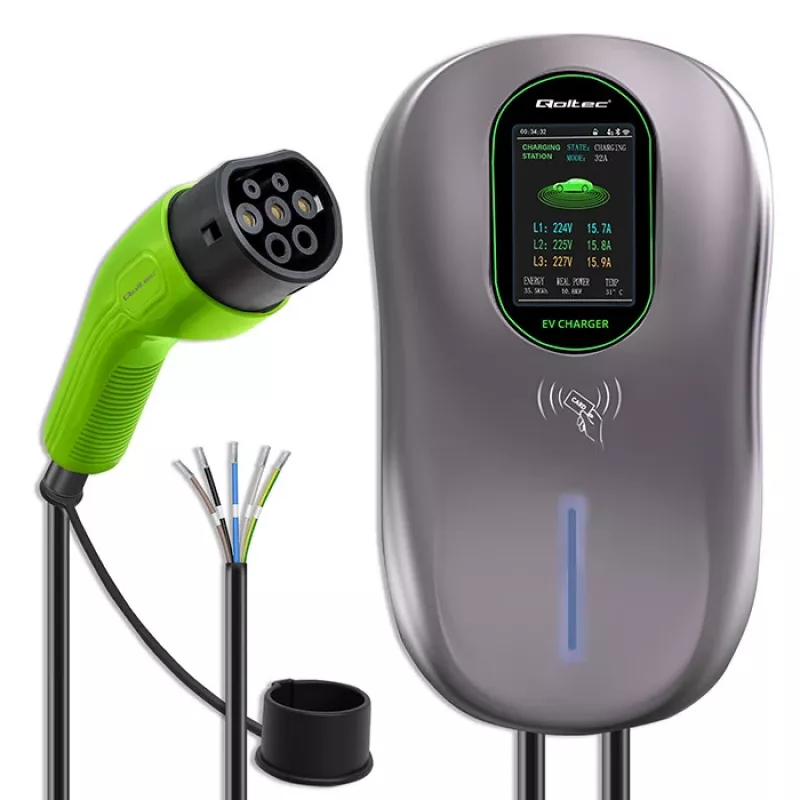

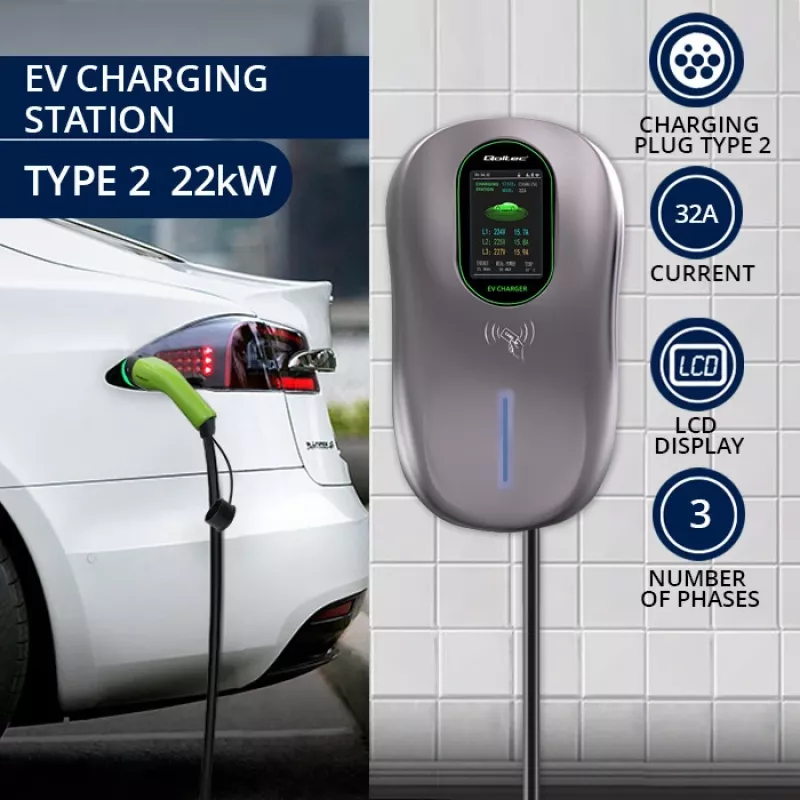

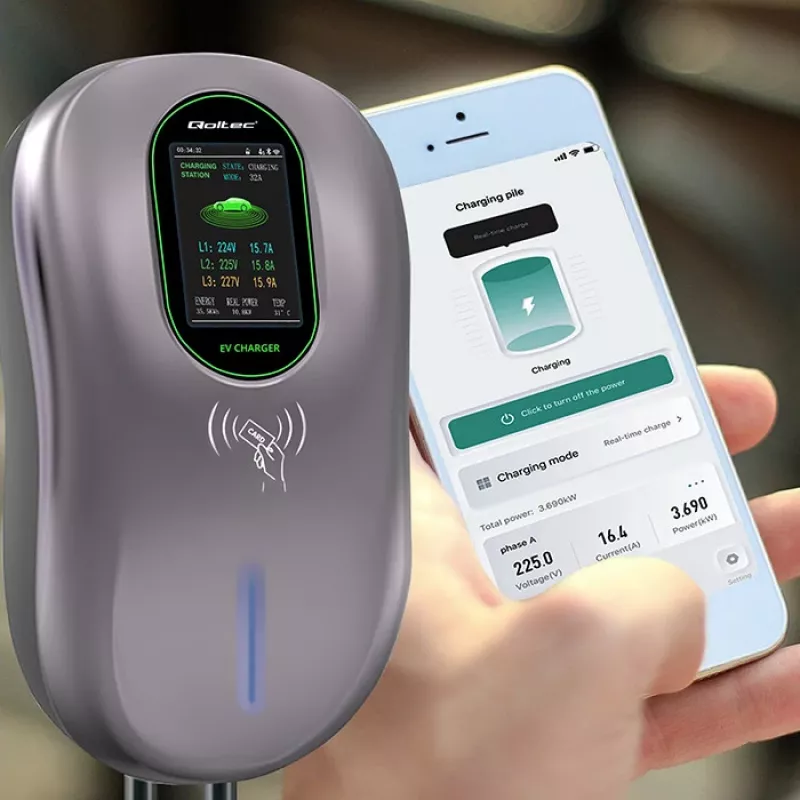

Wall-mounted EV charging station QOLTEC 52430 delivers up to 22 kW AC charging on a three-phase supply. The station accepts a Type 2 (IEC 62196-2) plug, supports 32 A charge current, and operates with a 400 V input and 230 V output. Built-in Wi‑Fi and RFID access control enable remote connectivity and user authentication. The unit has multiple safety protections and an IP54 rating for indoor and outdoor installation.

Advantages

The charging station provides three-phase 22 kW charging capacity with a Type 2 interface, 32 A current rating, and integrated Wi‑Fi and RFID for networked control and restricted access. Comprehensive safety features include under-voltage, over-voltage, short-circuit, over-temperature, over-current protections, as well as ungrounded and leakage protection. The IP54 enclosure offers dust protection and splash resistance for versatile installation options.

Suitable for

• Private garages and residential wall-mounted chargers
• Small commercial parking areas and workplaces
• Businesses requiring user access control via RFID
• Locations needing sheltered outdoor or indoor charging

Key specifications

• Maximum AC charging power: up to 22 kW (three-phase)
• Input voltage: 400 V (three-phase)
• Output voltage: 230 V (per phase)
• Rated current: 32 A

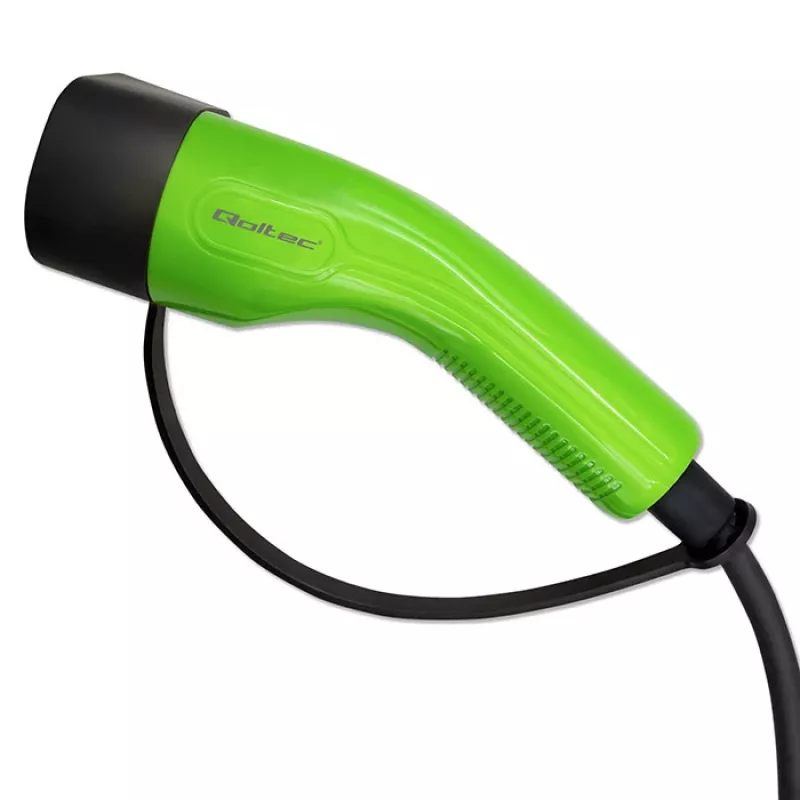

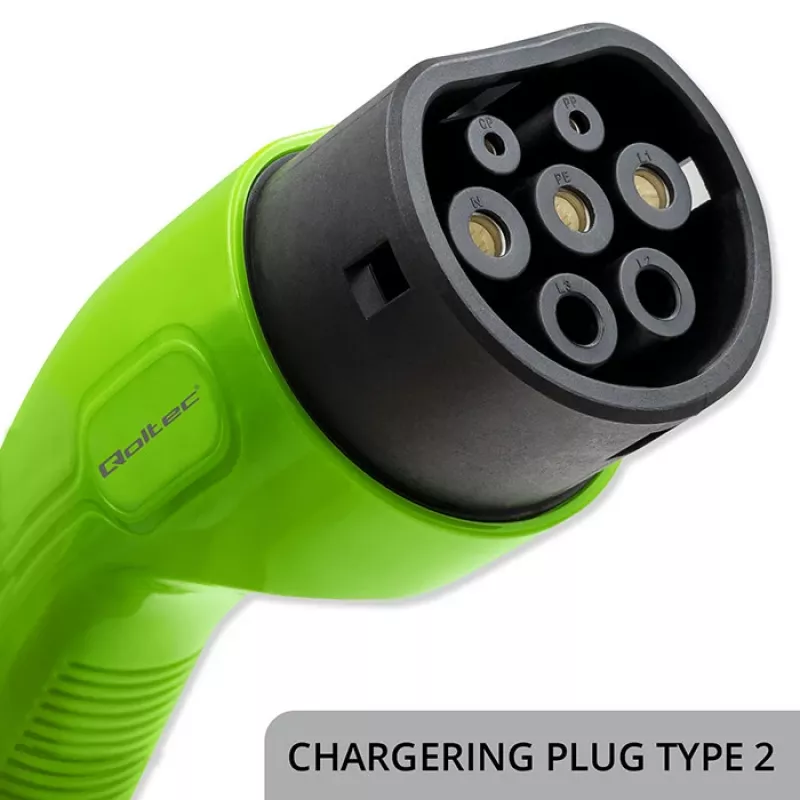

• Connector type: IEC 62196-2, Type 2
• Frequency: 50 Hz
• Insulation resistance: >10 MΩ
• Enclosure protection: IP54
• Safety protections: under-voltage, over-voltage, short-circuit, over-temperature, over-current, ungrounded protection, leakage protection

How to use

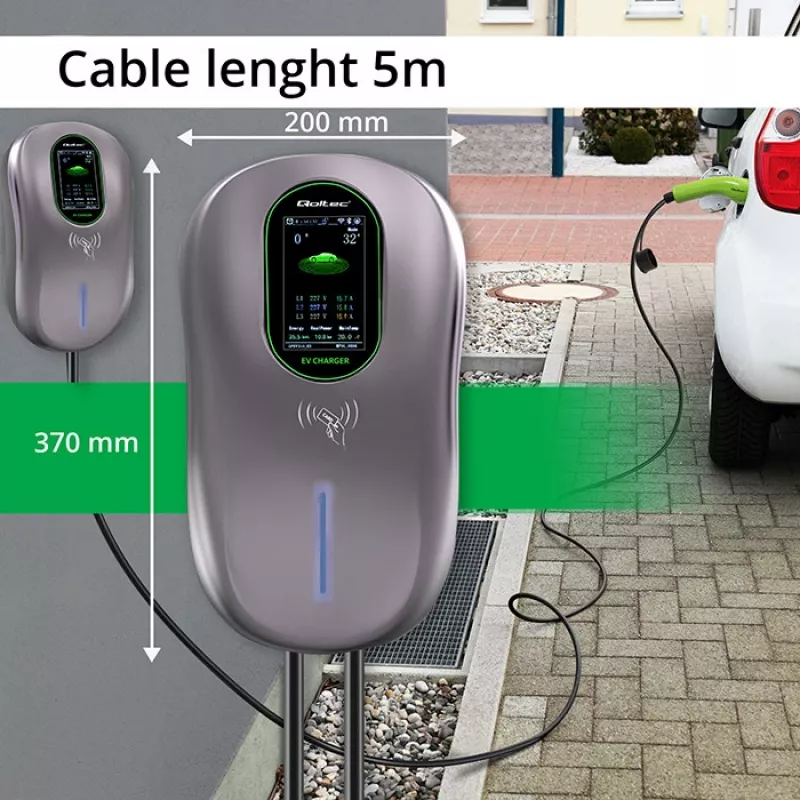

Mount the charger on a suitable wall or bracket according to local electrical codes and connect to a compatible three-phase 400 V supply via a qualified electrician. Configure Wi‑Fi and RFID settings following the manufacturer’s setup procedure to enable network functions and access control. Plug the Type 2 connector into the vehicle charging inlet to start charging; the station will manage charging current and safety protections automatically.

Recommendations

Avoid contact with water and do not expose the unit to direct jets of water; while the IP54 rating provides splash resistance, submersion or heavy water exposure may damage the product.
