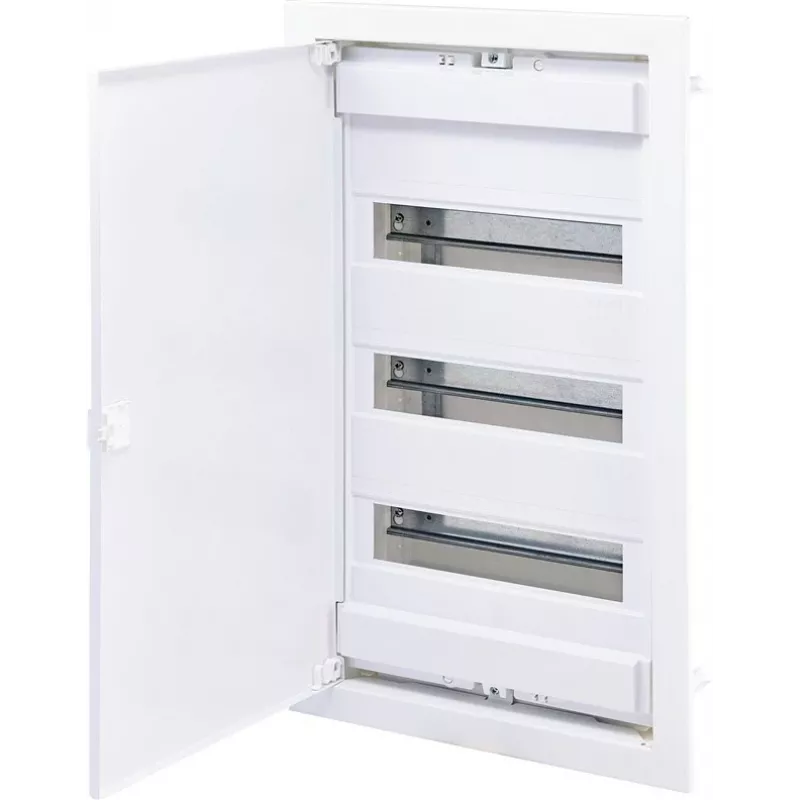

ETI BOARD DISTRIB FLUSH ECG42 IP40 36+6 MOD Distribution Board

The ETI BOARD DISTRIB FLUSH ECG42 IP40 36+6 MOD is a high-quality flush-mounted distribution board designed for reliable electrical distribution in residential and commercial installations. With a capacity of 36+6 modules (42 total) across 3 rows, it offers ample space for circuit breakers and other DIN-rail mounted devices. The board features an IP40 protection rating, making it suitable for indoor use where protection against solid objects larger than 1mm is required.

Advantages

This distribution board combines robust construction with ease of installation. The flush-mount design allows for a clean, recessed finish that blends seamlessly with walls. The transparent PC door provides visibility of the internal components while maintaining protection. The housing is made from halogen-free ABS/PC plastic, ensuring safety and environmental compliance. With a glow wire test temperature of 650°C for the housing and 850°C for live parts, it offers excellent fire resistance.

Suitable for

• Residential electrical distribution systems
• Commercial buildings requiring flush-mounted boards
• Installations needing up to 42 modules with 3 rows
• Applications requiring IP40 protection and IK07 impact resistance

Key specifications

• Mounting Type: Flush-mounted (Recessed)
• IP Protection Rating: IP40
• Number of Modules: 36 + 6 (42 total)
• Number of Rows: 3
• Enclosure Material: ABS/PC Plastic
• Door Material: Transparent PC (Polycarbonate)
• Color: White (RAL 9003)
• Rated Insulation Voltage (Ui): 500 V
• Rated Operational Voltage (Ue): 230/400 V AC
• Rated Current (In): Up to 63 A
• Standards Compliance: EN 61439-3, IEC 61439-3
• Terminal Blocks Included: N (Neutral) and PE (Protective Earth)
• DIN Rail: Yes, included
• Glow Wire Test Temperature: 650 °C (housing), 850 °C (live parts)
• Impact Resistance: IK07
• Operating Temperature Range: -25°C to +60°C
• Halogen-Free: Yes
• Degree of Pollution: 2

Recommendations

For optimal performance, ensure that the distribution board is installed by a qualified electrician and that all connections are tightened to the manufacturer's specifications. This board is designed for indoor use only and should not be exposed to moisture or extreme environmental conditions beyond its rated parameters.
