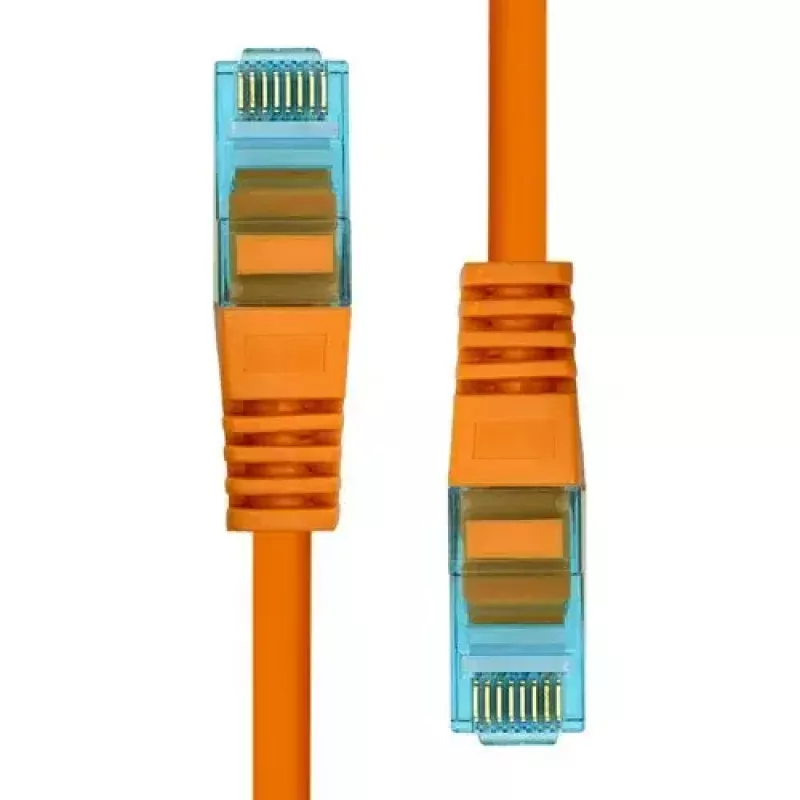

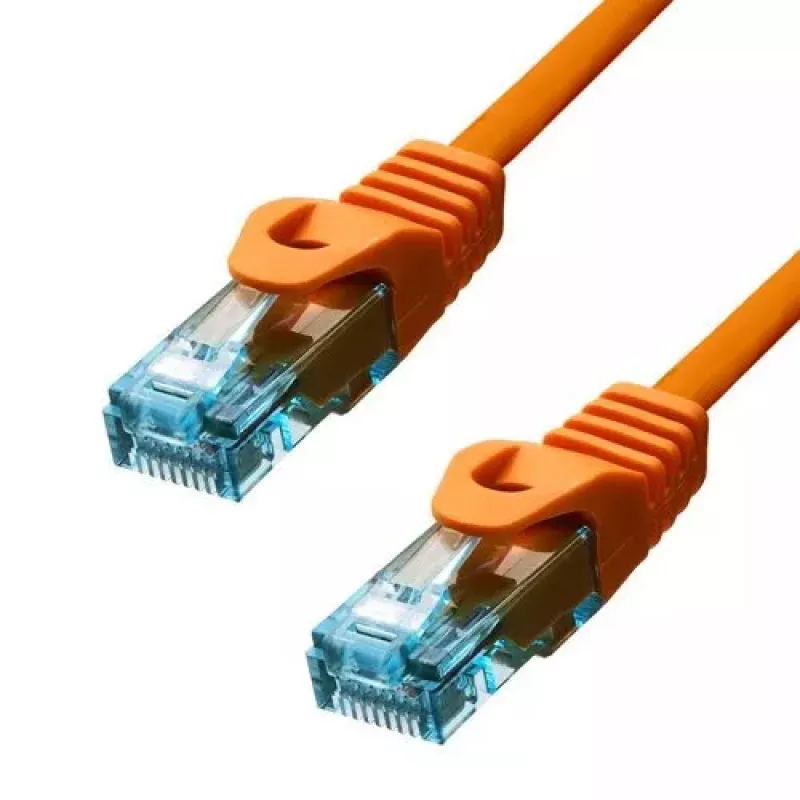

Ethernet Cable ProXtend CAT6A RJ-45 U/UTP 7m Orange

The ProXtend CAT6A U/UTP CU LSZH Ethernet Cable (7 m) with RJ-45 connectors is designed for 10GBase-T networks and supports data rates up to 10000 Mbit/s. Constructed with 99.9% pure copper strands (AWG 24) and an LSZH outer jacket, the cable offers reliable high-speed transmission while reducing smoke and toxic fumes in case of fire. The orange cable includes gold-plated 50µ"U" connectors and strain relief with snagless latch protection for durable, secure connections. All ProXtend CAT6A U/UTP CU cables support PoE+ and are available in multiple lengths and shieldings to match network requirements.

Advantages

The cable combines 99.9% pure copper conductors and AWG 24 sizing for consistent signal quality and low attenuation at 10G speeds. LSZH sheathing lowers smoke and halogen emissions in emergencies. 50µ"U" gold-plated RJ-45 contacts improve contact durability and transmission stability compared with standard metal connectors, and the reinforced strain relief with snagless latch protection reduces connector damage during installation and handling.

Suitable for

• 10GBase-T wired networks requiring up to 10000 Mbit/s throughput
• PoE+ powered devices such as wireless access points and IP cameras
• Structured cabling in office, data center, and professional AV setups

Key specifications

• Length: 7 m
• Connectors: RJ-45 to RJ-45
• Cabling technology: CAT6A U/UTP, 10GBase-T
• Conductor: 99.9% pure copper, AWG 24
• Outer jacket: LSZH (Low Smoke Zero Halogen)
• Contact plating: 50µ"U" gold
• Supports: PoE+
• Color: Orange

How to use

Plug each RJ-45 connector into the corresponding Ethernet port on your network devices, such as switches, routers, or networked equipment. Ensure connectors are fully inserted until the latch clicks to establish a secure physical and electrical connection. Route the cable to avoid sharp bends, excessive tension, or sources of electromagnetic interference. For permanent installations, maintain proper cable management and adhere to the maximum recommended bend radius and pull force for CAT6A cables.

Recommendations

Use this CAT6A U/UTP cable for short- to medium-length high-bandwidth links within racks, between switches, and from switches to PoE+ devices. Avoid installing the cable alongside high-voltage power lines to minimize interference and follow local fire-safety requirements when selecting LSZH cables for enclosed public spaces.
