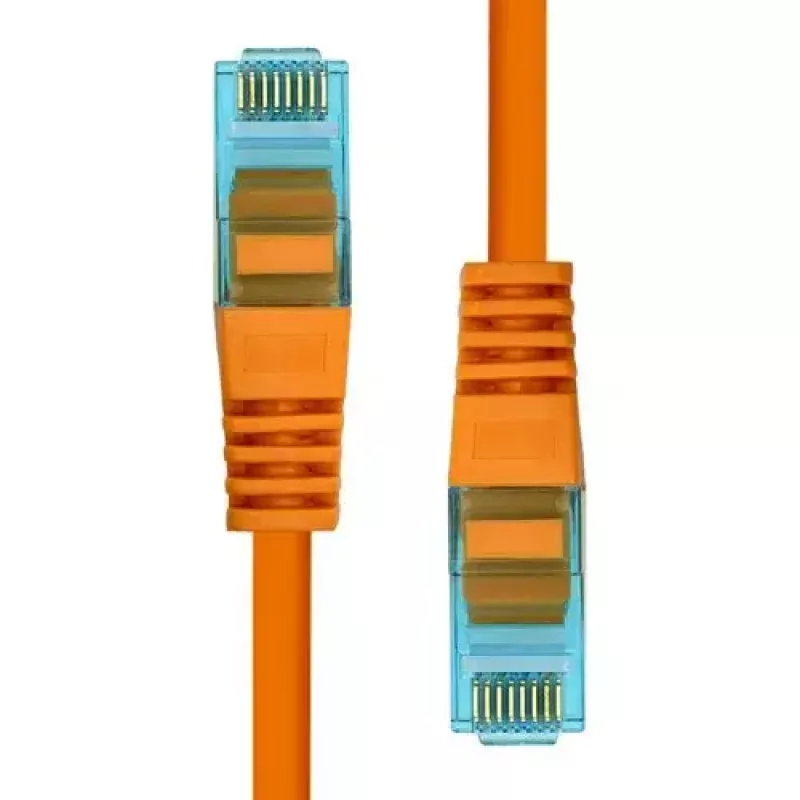

Ethernet Cable ProXtend CAT6A RJ-45 U/UTP 2M Orange

The ProXtend CAT6A U/UTP CU LSZH Ethernet Cable (2 m, orange) is designed for high-speed networking and reliable signal transmission. Constructed with 99.9% pure copper conductors of AWG 24 and U/UTP topology, the cable supports 10GBase-T data rates up to 10000 Mbit/s and is compatible with Power over Ethernet Plus (PoE+). The LSZH outer jacket reduces smoke and toxic emissions in case of fire while the bright orange jacket provides easy cable identification.

Advantages

The cable uses 99.9% pure copper strands and AWG 24 to ensure low electrical resistance and stable high-speed performance. A 50 μ” gold-plated RJ-45 connector improves contact durability and transmission quality compared with standard metal connectors. Strain relief and a snagless latch protector increase mechanical durability and simplify installation. The U/UTP design reduces external interference for consistent 10GBase-T operation over the specified length.

Suitable for

• Connecting switches, routers and patch panels in data networks
• High-speed 10GBase-T workstations and server uplinks
• PoE+ powered devices such as access points and IP cameras
• Structured cabling where LSZH jacket is required

Key specifications

• Length: 2 m
• Connector type: RJ-45 to RJ-45
• Cabling: CAT6A U/UTP, AWG 24, 99.9% pure copper
• Data rate: up to 10000 Mbit/s (10GBase-T)
• PoE support: PoE+
• Outer jacket: LSZH (Low Smoke Zero Halogen)
• Connector plating: 50 μ” gold
• Color: Orange
• Weight: 0.085 kg

How to use

Insert the gold-plated RJ-45 connectors into compatible Ethernet ports on network devices until the latch clicks. Route the cable to avoid sharp bends and excessive tension; use the built-in strain relief and latch protector to reduce wear at connection points. For structured installations, label both ends and test the installed link with appropriate network test equipment to verify 10GBase-T performance and PoE+ delivery.

Recommendations

For optimal long-term performance, avoid running the cable parallel and close to high-voltage power lines and maintain bend radii larger than the cable diameter. Use LSZH cables in enclosed public or commercial spaces where reduced smoke and toxic emission levels are required.
