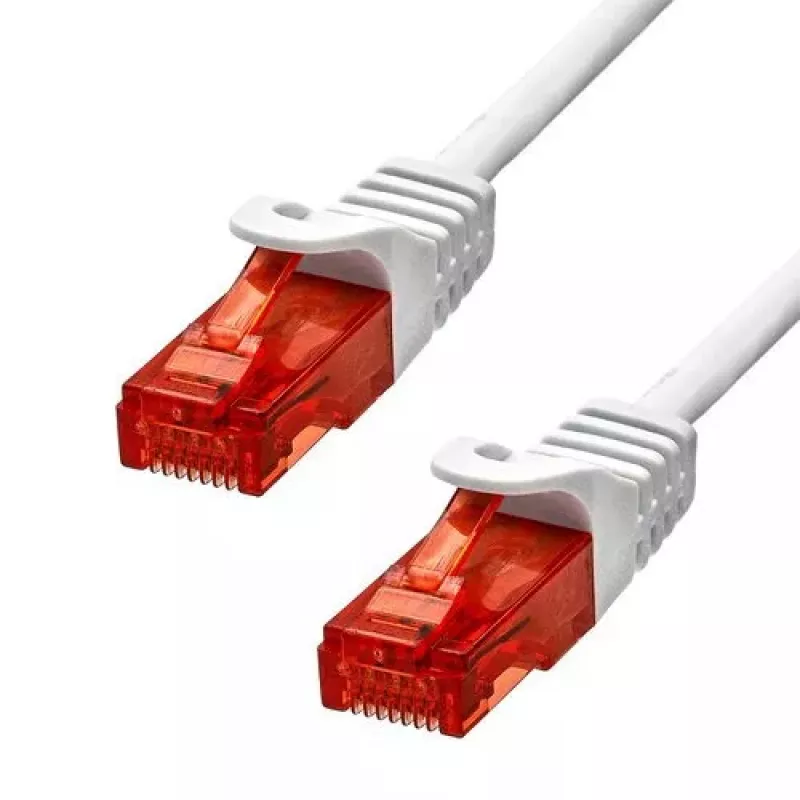

Ethernet Cable ProXtend CAT6 RJ-45 U/UTP 7M White

The ProXtend CAT6 U/UTP CU Ethernet Cable (7 m) is a white LSZH-jacketed network cable designed for stable Gigabit connections and safe use in environments where low smoke and halogen-free materials are required. Constructed with 24 AWG strands of 99.9% pure copper and fitted with RJ-45 connectors, the cable supports 10/100/1000Base-T(X) networks and delivers data transfer rates up to 1000 Mbit/s. The cable is compatible with Power over Ethernet (PoE+) and is intended for typical home and office networking installations where a 7-meter length is needed.

Advantages

The cable’s 99.9% pure copper conductors and 24 AWG specification provide consistent electrical performance and low signal loss over the 7 m length. Its LSZH outer jacket reduces smoke and toxic halogen emissions in case of fire, and the strain relief with a snagless latch protector increases mechanical durability during installation. RJ-45 connectors are plated with 50µ” gold to improve contact reliability and transmission quality compared with standard connectors.

Suitable for

• Home networking and connections between devices (PC, NAS, router, switch)
• Office network installations and patching between switches and workstations
• PoE+ devices such as IP phones, wireless access points and cameras
• Situations requiring low-smoke, halogen-free cabling (public buildings, data closets)

Key specifications

• Length: 7 m
• Category: CAT6
• Shielding: U/UTP (unshielded pair overall)
• Conductor: 99.9% pure copper, 24 AWG
• Connectors: RJ-45 to RJ-45, 50µ” gold plated
• Jacket: LSZH (Low Smoke Zero Halogen), color: White
• Standards: 10/100/1000Base-T(X)
• PoE support: PoE+
• Weight: 0.28 kg

How to use

Uncoil the cable and route it along the desired path, avoiding tight bends and sharp edges. Insert RJ-45 connectors into corresponding ports until the latch clicks. Use the strain relief and latch protector to prevent accidental disconnection and reduce stress at the connector. For best performance, keep the cable away from high-voltage power lines and sources of electromagnetic interference.

Recommendations

For reliable Gigabit performance maintain recommended bend radius (typically four times the cable diameter), avoid kinking, and do not exceed the cable’s mechanical load ratings. Use LSZH cabling in areas where reduced smoke and halogen emissions are required.
