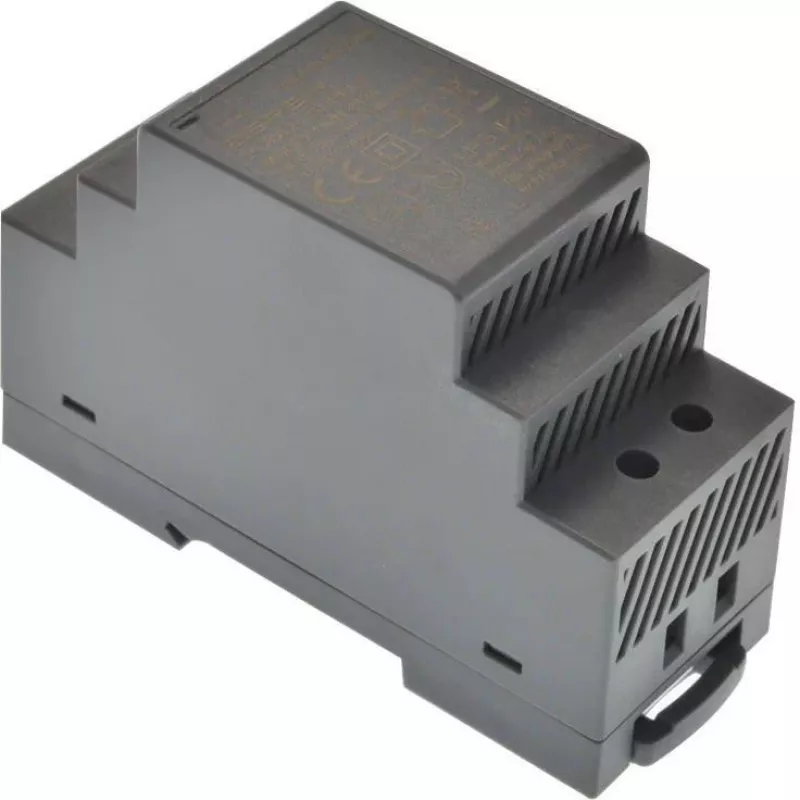

ESPE HDN-3012 DIN Rail Switching Power Supply 12V/24W/2A

Industrial control panels and building automation systems need reliable DC power, and the ESPE HDN-3012 delivers it from a compact DIN rail module. Mount it on a TS-35 rail, connect 85–264 VAC, and get a regulated 12 VDC output rated at 2 A (24 W) for sensors, controllers, and small actuators.

Key specifications

• Output voltage: 12 VDC, adjustable from 10.8 to 13.2 VDC
• Rated output current: 2 A
• Rated output power: 24 W
• Input voltage: 85–264 VAC, 47–63 Hz
• Efficiency: 83%
• Ripple & noise: <100 mVp-p
• Protection: short circuit, overload, overvoltage
• Operating temperature: -20°C to +50°C
• Cooling: free air convection
• LED indicator for power on
• Isolation voltage: 3000 VAC input-output
• Safety standards: EN60950-1, UL60950-1
• EMC standards: EN55022 Class B, EN61000-3-2, EN61000-3-3

Why choose it

The HDN-3012 is a switching power supply built for DIN rail installation in electrical cabinets. Its wide AC input range handles unstable mains, and the adjustable output lets you compensate for voltage drop on long cable runs. Convection cooling means no fan noise or maintenance.

Ideal use cases

• Powering PLCs and industrial controllers
• Supplying sensors and transmitters in automation
• Driving small DC motors or solenoids
• Building automation and HVAC control circuits

Good to know

The unit mounts on standard TS-35/7.5 or TS-35/15 DIN rails. It includes short circuit, overload, and overvoltage protection to safeguard both the supply and connected loads.
