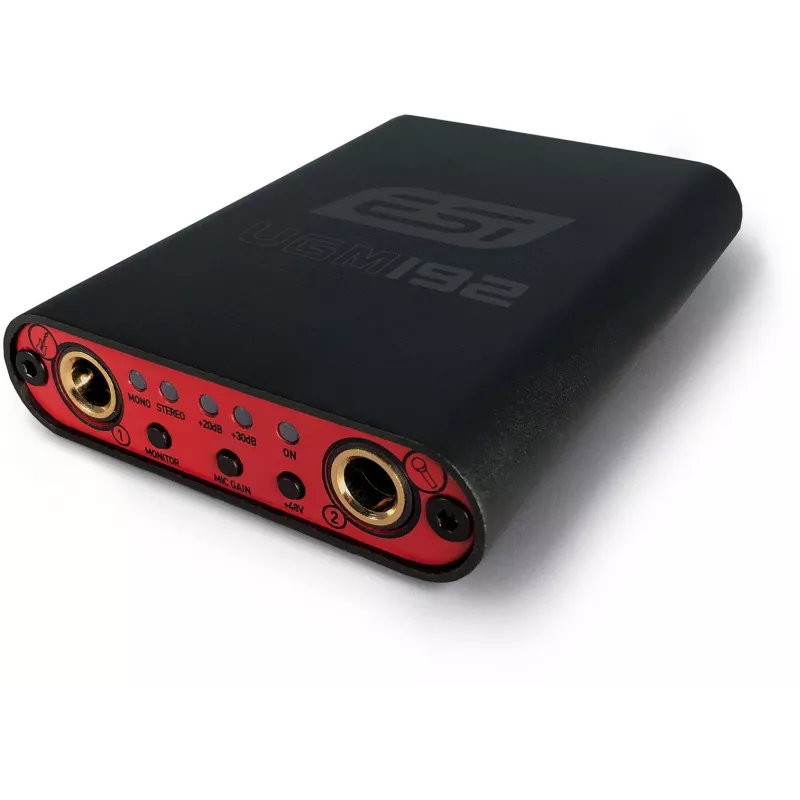

ESI UGM192 USB-C Audio Interface with 192 kHz 24-Bit Conversion, XLR/TRS Combo Input, Hi-Z Instrument Input, Direct Monitoring

Capturing a clean, detailed recording from a microphone or instrument often depends on the interface you use. Many built-in sound cards introduce noise, latency, and limited resolution, which can compromise your takes. The ESI UGM192 addresses this by providing a portable, bus-powered USB-C audio interface that delivers studio-grade 24-bit/192 kHz conversion in a compact metal chassis. Whether you are a musician tracking demos at home, a podcaster needing a reliable mic preamp, or a mobile creator working with an iPad, this interface offers a straightforward path to high-quality audio.

Who is it for

The UGM192 is built for musicians, podcasters, streamers, and content creators who need a reliable, high-resolution audio interface that travels well. Its USB-C connectivity and bus-powered design make it an ideal companion for modern laptops, tablets, and even smartphones with USB-C. If you are looking to upgrade from a built-in sound card or need a compact solution for on-the-go recording, this interface fits the bill.

Main features

• High-resolution 24-bit/192 kHz AD/DA conversion for detailed, accurate sound.
• One XLR/TRS combo input with a switchable +48V phantom power, suitable for condenser microphones.
• One 1/4" TS Hi-Z instrument input for direct guitar or bass recording.
• Two balanced 1/4" TRS line outputs for connecting studio monitors or external gear.
• Dedicated 1/4" TRS stereo headphone output with independent volume control.
• Direct monitoring for zero-latency monitoring while recording.
• USB bus-powered – no external power supply needed.
• Rugged metal enclosure for durability on the road.
• Compatible with Windows, macOS, and iOS/iPadOS.
• Includes USB-C to USB-C and USB-C to USB-A cables for broad connectivity.

Specifications

• Interface Type: USB 3.1 Gen 1 Audio Interface
• Connectivity: USB-C
• Max Sample Rate: 192 kHz
• Bit Depth: 24-bit
• Microphone Inputs: 1 x XLR/TRS Combo
• Phantom Power: +48V (switchable)
• Instrument Inputs: 1 x 1/4" TS Hi-Z
• Line Outputs: 2 x 1/4" TRS Balanced
• Headphone Outputs: 1 x 1/4" TRS Stereo
• Direct Monitoring: Yes
• Power Source: USB Bus Powered
• Compatibility: Windows 7, 8, 10, 11 (ASIO 2.0, MME, WDM, DirectSound); macOS (CoreAudio); iOS/iPadOS
• Chassis Material: Metal
• Included Cables: USB-C to USB-C, USB-C to USB-A

Tips

To get the best results, set your sample rate to 192 kHz only if your recording software and computer can handle the higher CPU load. For most projects, 44.1 kHz or 48 kHz with 24-bit depth is sufficient. When using a condenser microphone, remember to engage the +48V phantom power switch. For direct monitoring, use the dedicated knob to blend the input signal with the playback from your computer to avoid latency.
