Ergotron HX Series HX ARM WITH VERY HEAVY DUTY PIVOT WALL WHITE FOR 1000R 57 inch MONITORS

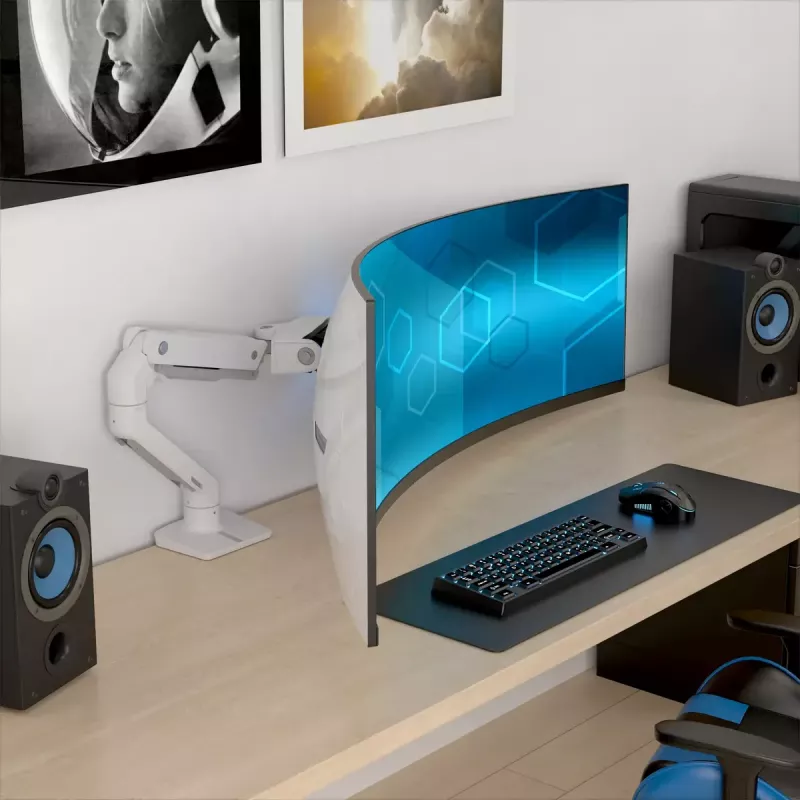

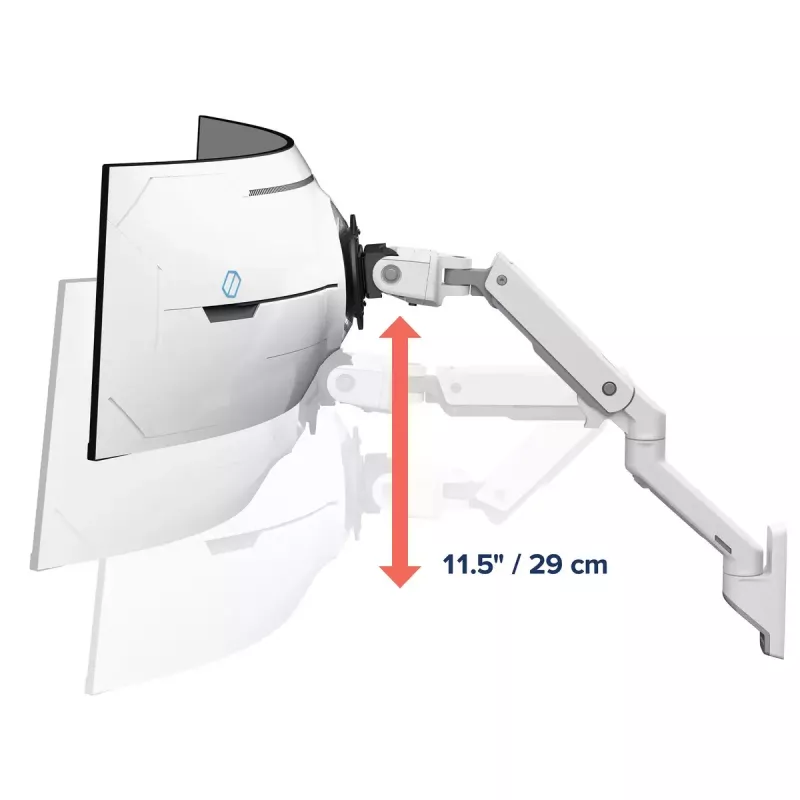

The Ergotron HX Series arm with a very heavy-duty pivot wall mount is designed for ultra-wide 1000R 57" monitors such as the Samsung Odyssey G9. It enables immersive viewing while freeing desk space and supports displays with depths of 9.1"–13.8" (23–35 cm) and weights of 28.7–37.5 lbs (13–17 kg). This wall-mounted arm provides height adjustment and a tilt range suitable for deep curved panels.

Advantages

This HX Arm variation includes a reinforced pivot to handle the extra depth and weight of 1000R 57" monitors, delivering stable support and controlled tilt. It is compatible with select models of the Samsung G9 family when the monitor’s depth and weight match the specified ranges. The mounting solution reclaims desk area and allows flexible positioning for gaming and professional use.

Suitable for (tasks / use cases)

• Mounting ultra-wide 1000R 57" curved gaming monitors (e.g., Samsung Odyssey G9 variants that meet size/weight limits)
• Ergonomic workstation setups in home or office environments
• Multimedia and immersive gaming installations where deep curved displays require reinforced support

Key specifications

• Supported display depth: 9.1"–13.8" (23–35 cm)
• Supported weight: 28.7–37.5 lbs (13–17 kg)

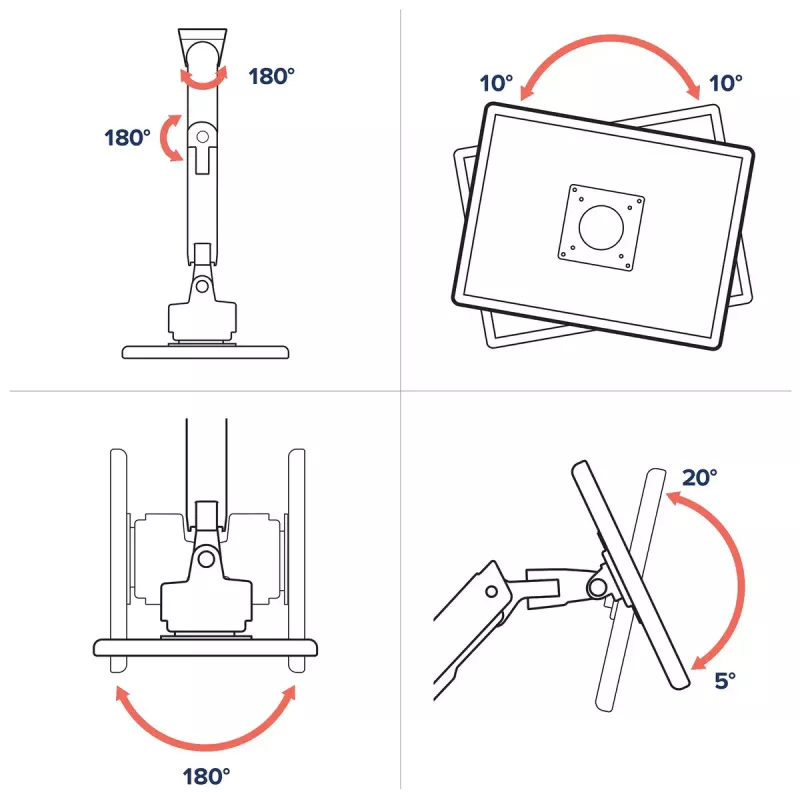

• Tilt range: 5° to 20°
• Mount type: Wall mount with very heavy-duty pivot
• Color: White
• Model / MPN: Ergotron HX Series HX Arm, MPN 45-694-216
• EAN: 0698833091946

How to use

Verify your monitor’s depth and weight to ensure compatibility with this HX Arm. Attach the arm to a suitable wall stud or to a hollow-wall system using the required Wall Track accessory (see technical specifications). Follow the included installation instructions to secure the pivot wall mount, then install the monitor and adjust height and tilt to the preferred viewing position.

Recommendations

Check the specific Samsung G9 variant’s dimensions and mass before purchase; other G9 versions may require the standard HX Arm or the HX Arm with HD Pivot. Use the Wall Track accessory when mounting to a hollow-wall stud to ensure safe installation.
