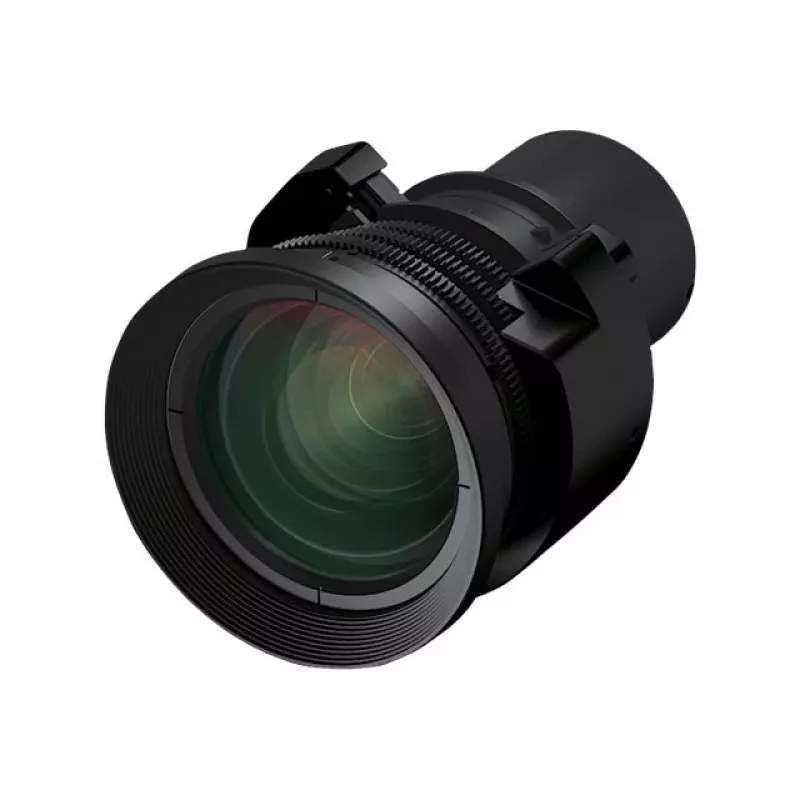

Epson ELP LW05 Wide-Throw Zoom Lens for Pro L and G7000 Series Projectors (V12H004W05)

Projectors often come with a fixed lens that limits placement options, but the Epson ELP LW05 wide-throw zoom lens solves that by giving you the flexibility to adjust the image size without moving the projector. Designed for Epson Pro L and Pro G7000 series projectors, this lens lets you fill a large screen from a short distance, making it ideal for auditoriums, lecture halls, and large venues.

Who is it for

This lens is for AV professionals, system integrators, and venues that need a reliable wide-angle zoom lens for their Epson Pro L or Pro G7000 series projectors. It is particularly useful in spaces where the projector must be placed close to the screen but still produce a large, sharp image.

Main features

• Wide-angle zoom with focal length range of 17.6 mm to 24.3 mm
• Bright aperture range of f/2.0 to f/2.23
• Powered zoom and focus for remote adjustment
• Vertical lens shift of -60% to +60% and horizontal lens shift of -18% to +18%
• Bayonet mount for quick and secure installation
• Throw ratio range of 0.87:1 to 1.18:1 for WUXGA projectors

Specifications

• Product Type: Projector Lens
• Lens Type: Wide-angle Zoom Lens
• Focal Length: 17.6 - 24.3 mm
• Aperture Range: f/2.0 - f/2.23
• Optical Zoom: 1.38x
• Throw Ratio Range (WUXGA): 0.87 - 1.18:1
• Focus Adjustment: Powered
• Zoom Adjustment: Powered
• Vertical Lens Shift: -60% to +60% (Powered)
• Horizontal Lens Shift: -18% to +18% (Powered)
• Mount Type: Bayonet Mount
• Compatibility: Epson Pro L Series, Epson Pro G7000 Series Projectors
• Colour: Black

Tips

When installing this lens, ensure the projector is powered off and cooled down. Use the powered lens shift to fine-tune the image position without physically adjusting the projector. For best image quality, clean the lens with a soft, dry cloth and avoid touching the glass.
