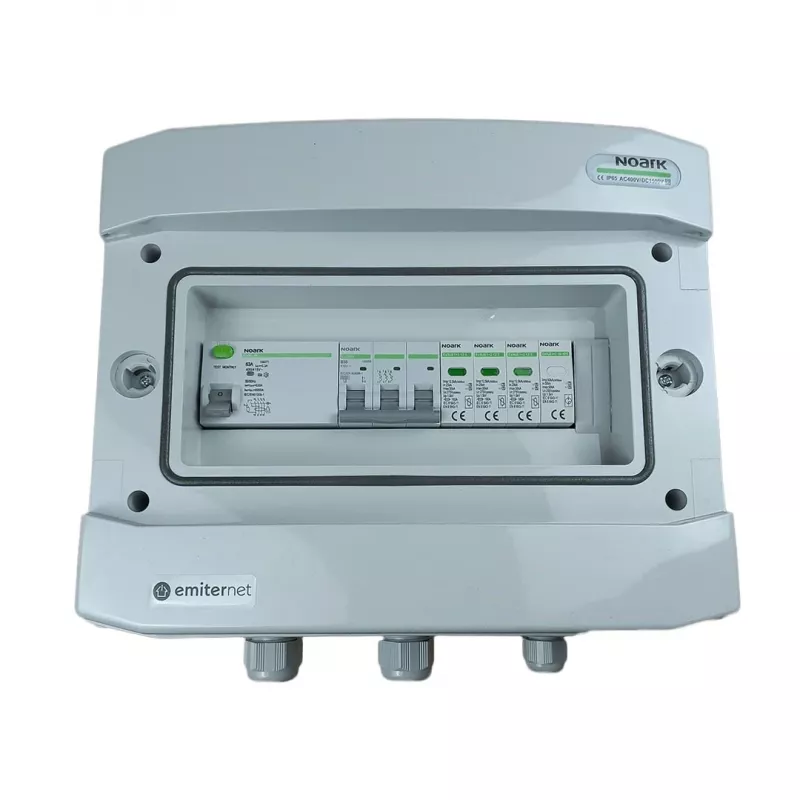

EMITER Switchgear Attached AC Hermetic IP65 EMITTER with Surge Arrester AC Noark Type 1+2, 50A 3-Phase, RCD Type A 63A/300mA

The EMITER Switchgear Attached AC Hermetic IP65 EMITTER is a robust and reliable electrical distribution solution designed for demanding AC power systems. This all-in-one unit integrates a surge protective device (SPD) and a residual current device (RCD) in a weatherproof IP65 enclosure, ensuring safe and continuous operation in outdoor or harsh environments.

Advantages

This switchgear offers comprehensive protection against overcurrent, earth faults, and surges, making it ideal for critical installations. The hermetic IP65 enclosure provides dust-tight and water-jet protection, extending the lifespan of internal components. With a Type 1+2 surge arrester from Noark and a Type A RCD, it meets high safety standards for commercial and industrial applications.

Suitable for

• Outdoor power distribution in industrial facilities
• Commercial buildings requiring weatherproof electrical protection
• AC power systems with 3-phase configuration up to 50A
• Installations needing combined surge and earth fault protection

Key specifications

• Product Type: Electrical Switchgear / Distribution Board
• Enclosure Protection Rating: IP65 (Hermetic/Weatherproof)
• Phase Configuration: 3-Phase
• Main Rated Current: 50 A
• Included Surge Protective Device (SPD): Yes, Type 1+2 by Noark
• Included Residual Current Device (RCD): Yes, Type A, 63 A, 300 mA
• Nominal Voltage (AC): 230/400 V
• Frequency: 50/60 Hz
• Mounting Type: Surface Mounted

Recommendations

For optimal performance, ensure the switchgear is installed by a qualified electrician and that the supply voltage and current ratings match the system requirements. Regular testing of the RCD and SPD is recommended to maintain protection levels.
