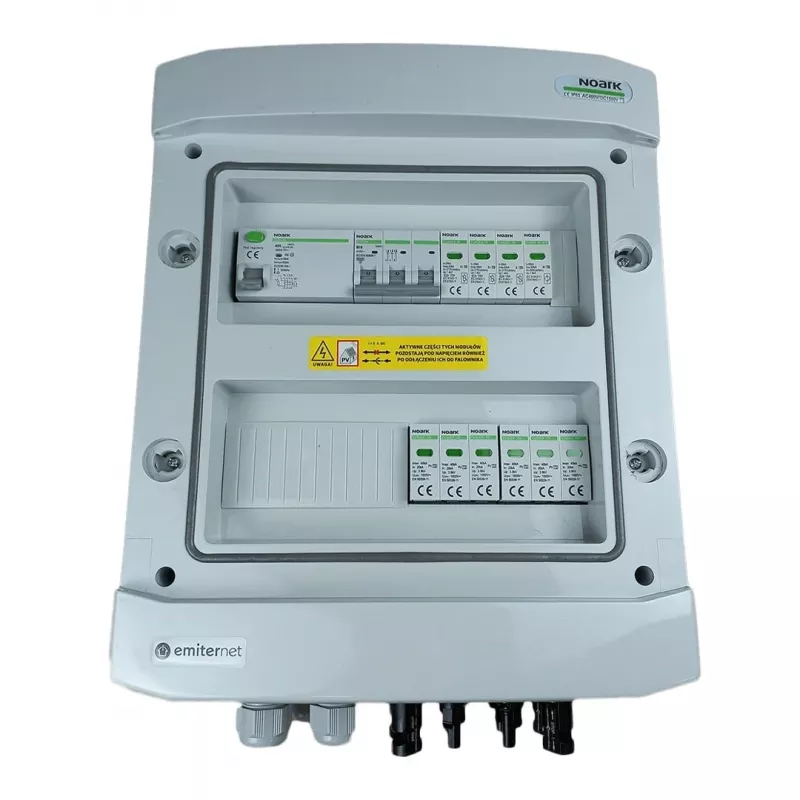

EMITER EM-1102N_DCAC PV DC/AC Switchgear Hermetic IP65 with Noark Surge Arresters and RCD

The EMITER EM-1102N_DCAC is a high-quality PV DC/AC switchgear designed for solar photovoltaic systems. This hermetic IP65 enclosure integrates a Noark 1000V Type 2 DC surge arrester, a Noark Type 2 AC surge arrester, and a Type A RCD, providing comprehensive protection for your solar installation. With support for 2 PV strings and 2 MPPT inputs, it is ideal for residential and commercial solar applications.

Advantages

This switchgear offers robust surge protection for both DC and AC sides, ensuring the longevity and safety of your solar system. The IP65 hermetic enclosure protects against dust and water ingress, making it suitable for outdoor installation. The integrated RCD with 40A/300mA sensitivity provides reliable ground fault protection.

Suitable for

• Solar photovoltaic systems with up to 2 PV strings
• Three-phase AC systems up to 10A
• Outdoor installations requiring IP65 protection
• Systems requiring Type 2 surge protection on both DC and AC sides

Key specifications

• Product Type: PV DC/AC Switchgear
• DC Voltage Rating: 1000 V
• Number of PV Strings: 2
• Number of MPPT Inputs: 2
• DC Surge Arrester: Type 2, Noark
• AC System Configuration: 3-Phase
• AC Current Rating: 10 A
• AC Surge Arrester: Type 2, Noark
• RCD Type: Type A, 40 A, 300 mA
• Enclosure: Hermetic, IP65

Recommendations

For optimal performance, ensure that the switchgear is installed by a qualified electrician and that all connections are properly tightened. Regular inspection of surge arresters and RCD is recommended.
