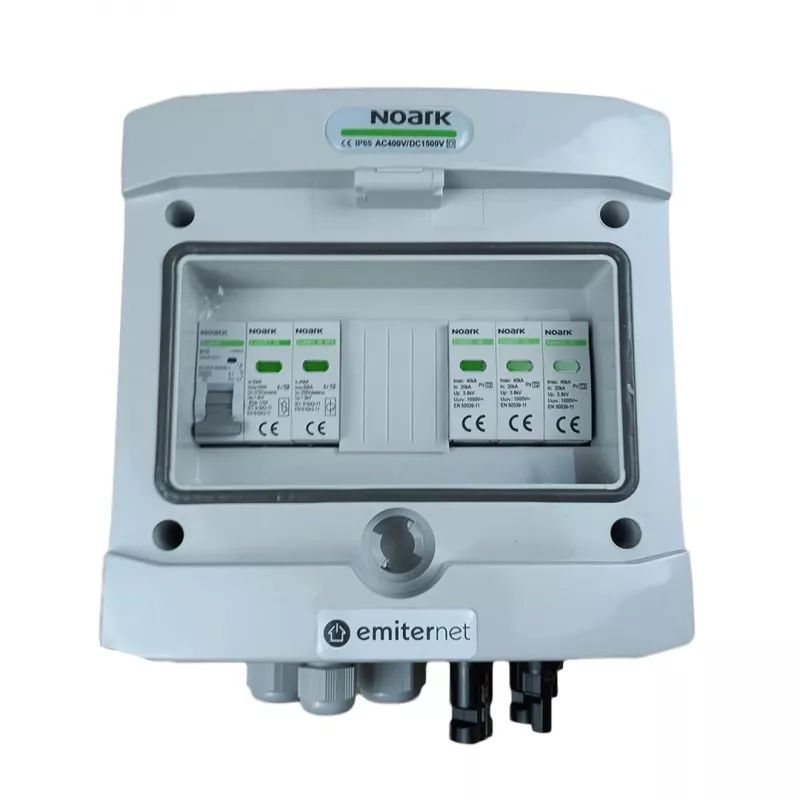

EMITER DCAC Hermetic IP65 PV Combiner Box with Noark Type 2 SPD, 1 String, 1 MPPT, 16A 1-Phase

The EMITER DCAC Hermetic IP65 PV Combiner Box integrates DC and AC surge protection in a single, rugged enclosure. Designed for solar photovoltaic systems, it combines a Noark 1000V Type 2 DC surge arrester and a Noark Type 2 AC surge arrester, with a 16A 1-pole AC circuit breaker. The hermetic IP65 housing ensures reliable outdoor operation.

Advantages

All-in-one DC/AC protection simplifies installation and reduces component count. The hermetic IP65 enclosure provides dust and water ingress protection, making it suitable for harsh environments. Noark Type 2 SPDs offer robust surge protection for both DC and AC sides.

Suitable for

• Solar photovoltaic systems with one PV string and one MPPT input
• Outdoor or indoor installations requiring IP65 protection
• Single-phase AC grid connection up to 16A

Key specifications

• Product Type: PV DC/AC Combiner Box / Switchgear
• DC Input Configuration: 1 PV String
• MPPT Inputs: 1
• Max DC Voltage: 1000 V
• DC Surge Protection: Noark Type 2
• AC Output: 1-Phase, 16A
• AC Surge Protection: Noark Type 2
• Enclosure: Hermetic, IP65
• AC Circuit Breaker: 16A, 1-Pole
• Mounting: Wall-mountable

Recommendations

For optimal performance, ensure proper grounding and follow local electrical codes. This combiner box is designed for use with a single PV string and single MPPT input; verify compatibility with your inverter.
