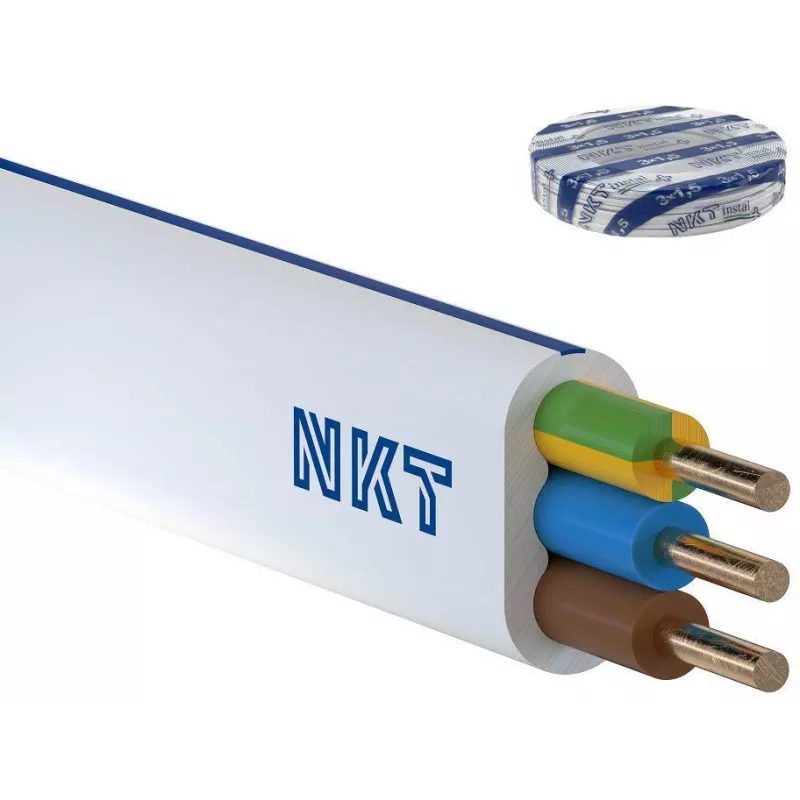

Flat installation cable OEM 172152001C0100 450/750V 3×1.5 mm²

Flat installation cable OEM 172152001C0100 450/750V 3×1.5 mm² is a three-conductor flat-profile fixed wiring cable with 1.5 mm² conductor cross-section and rated insulation for 450/750 V. The slim rectangular shape allows routing through narrow gaps, behind skirting boards, under flooring finishes or inside trunking where round cable bulk would be a problem. The construction is intended for household and light-commercial installations including lighting circuits and short power-distribution runs where a compact, easy-to-lay cable is required.

Advantages

The flat design reduces bend radius constraints in thin spaces and permits discreet installation beneath finishings without the need for additional conduit. Three individually insulated conductors provide a clear separation of live, neutral and earth for safe connections in single-phase circuits. The 1.5 mm² conductor size balances current-carrying capacity and flexibility for typical lighting and socket-protected circuits. The cable's insulation rating for 450/750 V ensures suitability for common low-voltage fixed wiring applications.

Suitable for

• Indoor household electrical wiring: lighting and switched circuits
• Light commercial fixed wiring and distribution
• Routing behind skirting boards, under flooring or inside shallow trunking
• Retrofit installations where space is limited and minimal visual impact is desired

Key specifications

• Number of conductors: 3 (live, neutral, earth)
• Conductor cross-section: 1.5 mm²
• Voltage rating: 450/750 V
• Profile: flat / rectangular
• Intended use: fixed indoor installation
• Typical applications: lighting circuits, short power distribution runs

How to use

Plan the cable route avoiding sharp edges and heat sources. Cut to length and strip outer sheath and conductor insulation to the required length, following local wiring rules and manufacturer guidance. Connect conductors to terminals clearly designated for live, neutral and earth, and secure the cable in place using appropriate clips, adhesive channels or shallow trunking. Ensure connections and protective devices (fuses, breakers, RCDs) match conductor size and the expected load. Installation should be performed by a qualified electrician in accordance with applicable electrical standards and regulations.

Recommendations

Use this flat 3×1.5 mm² cable for indoor fixed wiring where a low-profile solution is needed; avoid exposure to direct sunlight, prolonged moisture, or mechanical damage. Verify protective device settings to suit the 1.5 mm² conductor and follow local codes for maximum circuit length and load.
