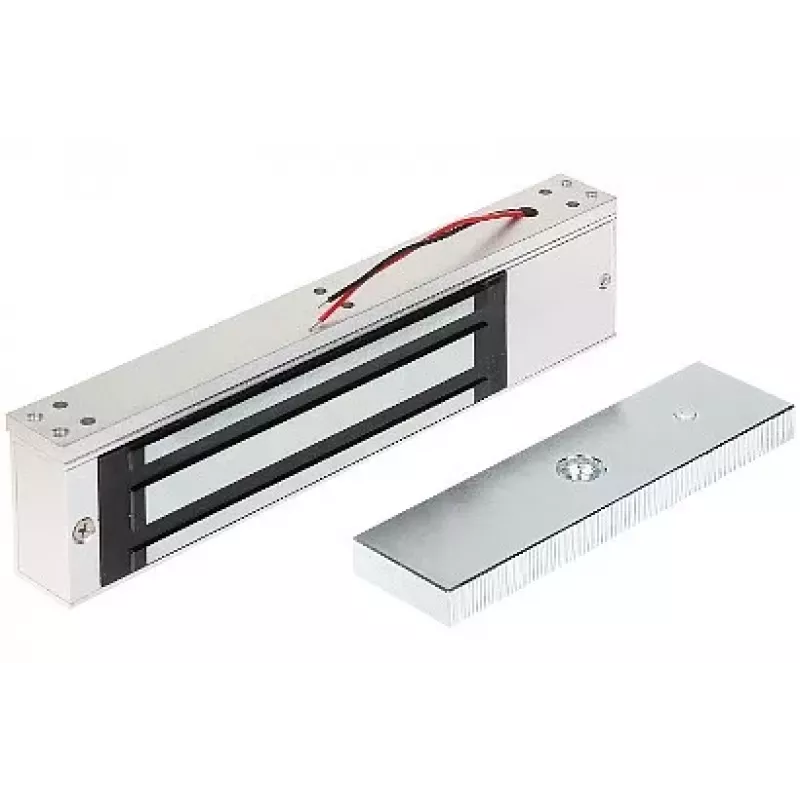

Electromagnetic Lock Atlo ML-361 360kg (800lbs) 12/24V DC Fail-Safe with Door Status Sensor

The Atlo ML-361 is a high-performance electromagnetic lock designed for secure access control in commercial and industrial environments. With a holding force of 360 kg (800 lbs), it provides reliable security for wooden, glass, metal, and fireproof doors. The lock operates in fail-safe mode (power to lock) and features a built-in door status sensor with NO/NC/COM output, along with a green/red LED indicator for lock status. Its surface-mount design and anodized aluminum housing ensure durability and easy installation.

Advantages

High holding force of 360 kg ensures secure door locking. Selectable 12V or 24V DC operation allows flexibility with existing systems. Built-in door status sensor provides real-time monitoring. LED indicator offers clear visual lock status. Fail-safe operation ensures doors unlock during power loss for safety compliance.

Suitable for

• Access control systems for offices, warehouses, and industrial facilities
• Security doors requiring high holding force
• Integration with fire alarm and building management systems

Key specifications

• Holding Force: 360 kg (800 lbs)
• Operating Voltage: DC 12V / 24V (selectable)
• Current Consumption: 500 mA @ 12V, 250 mA @ 24V
• Operating Mode: Fail-Safe (Power to Lock)
• Door Status Sensor: Yes (NO/NC/COM)
• LED Indicator: Green/Red
• Mounting: Surface Mount
• Housing Material: Anodized Aluminum
• Armature Plate Material: Zinc Alloy
• Operating Temperature: -10°C to +55°C
• Lock Body Dimensions: 265 x 71 x 40 mm
• Armature Plate Dimensions: 185 x 60 x 16 mm

Recommendations

For optimal performance, ensure proper alignment of the armature plate and lock body. Use with a compatible power supply and access control system. Suitable for indoor use only.
