Electrical enclosure Rittal PK 9516.100 — polyamide/polyethylene, 180×165×110 mm

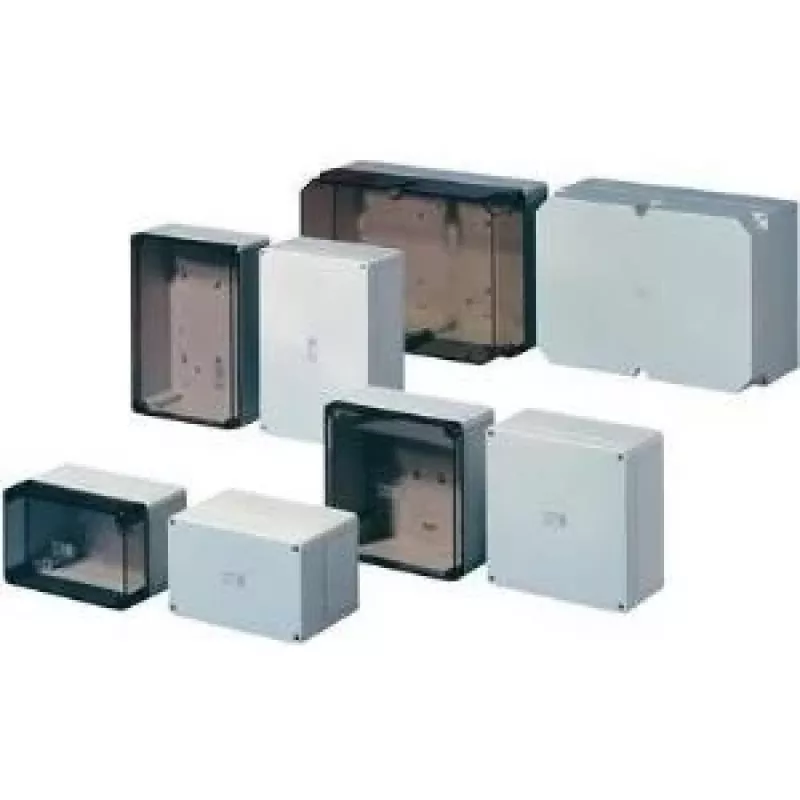

Rittal PK 9516.100 is a compact electrical enclosure constructed from polyamide and polyethylene with external dimensions 180 × 165 × 110 mm. The enclosure is intended to house small electrical components, terminal blocks and control modules in industrial and commercial environments. Its chemical-resistant plastic construction and choice of opaque or transparent cover provide protection while allowing visual inspection of internal components where required.

Advantages

The enclosure combines impact-resistant polyamide body material with a cover option in either grey or transparent fibre-glass reinforced polycarbonate, providing mechanical robustness and visual access when needed. Its compact footprint and lightweight construction simplify handling and installation. The materials used offer resistance to common chemicals and environmental influences typical for industrial applications. Integrated mounting features allow secure panel or surface mounting without extensive modification.

Suitable for

• Housing small control modules and electronic assemblies
• Protecting terminal blocks and wire connections
• Surface or panel mounting in machines, cabinets, or control stations
• Applications requiring occasional visual inspection through a transparent cover

Key specifications

• External dimensions: 180 mm (width) × 165 mm (depth) × 110 mm (height)
• Body material: polyamide/polyethylene
• Cover material: fibre-glass reinforced polycarbonate (available in grey or transparent)
• Chemical resistance suitable for typical industrial environments
• Lightweight construction for easy handling
• Designed for panel or surface mounting

How to use

Select an appropriate mounting location and fix the enclosure using the provided mounting points or recommended fasteners for panel or surface installation. Install electrical components or terminal blocks inside the enclosure, ensuring adequate spacing for wiring and heat dissipation. If a transparent cover is used, position components to allow the required visibility for inspection. Close and secure the cover according to the manufacturer’s fastening method to maintain protection against dust and incidental contact.

Recommendations

Install the enclosure on a flat, stable surface and use gaskets or sealing compound where increased protection against moisture or dust ingress is required. Avoid prolonged exposure to temperatures or chemicals outside the recommended ranges for polyamide and polycarbonate materials. For applications with significant vibration or shock, verify fastening torque and consider additional mechanical support for internal components.
