Electrical enclosure Rittal PK 9515.100 — polyamide/polyethylene, 180×111×110 mm, IP66

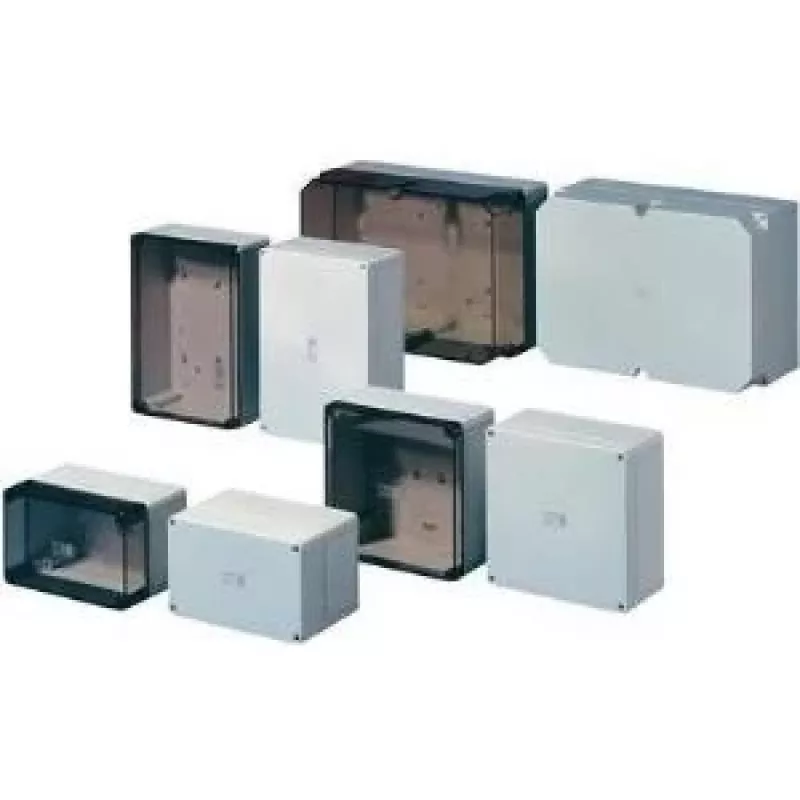

Rittal PK 9515.100 is a compact electrical enclosure constructed from polyamide and polyethylene with a fibre-glass reinforced polycarbonate option and either a grey or transparent cover. With external dimensions of 180 × 111 × 110 mm and an IP66 rating, this enclosure provides dust-tight protection and strong resistance against powerful water jets, making it suitable for indoor industrial use and many outdoor installations. The design accommodates junctions, small control units, sensors and similar electrical components that require reliable mechanical protection and environmental sealing.

Advantages

The enclosure combines durable thermoplastic materials for impact resistance and long-term stability, with the option of a transparent cover for component visibility without opening the box. Its compact footprint and generous internal volume permit flexible component arrangement while the IP66 rating ensures protection against dust ingress and high-pressure water. Corrosion-resistant materials and a secure closure system reduce maintenance needs and simplify installation in demanding environments.

Suitable for

• Junction boxes and cable termination
• Small control or relay units
• Sensors, signal converters and measurement electronics
• Outdoor or washdown areas requiring IP66 protection
• Industrial and process automation installations

Key specifications

• Material: polyamide/polyethylene with fibre-glass reinforced polycarbonate option for the body and choice of grey or transparent cover
• External dimensions (W × D × H): 180 × 111 × 110 mm
• Protection rating: IP66 (dust tight, protected against powerful water jets)
• Suitable for mounting internal components such as small PCBs, terminal blocks and sensors
• Corrosion-resistant thermoplastic construction for outdoor and industrial use

How to use

Mount the enclosure on a suitable flat surface or panel using appropriate fasteners, ensuring the orientation preserves the sealing surfaces. Route cables through appropriate gland entries or pre-cut knockout locations and secure them with compatible cable glands to maintain IP66 integrity. Install internal components on the base or available mounting plates, observing spacing for ventilation and cable routing. Close and fasten the cover to engage the sealing gasket fully; verify the seal visually and by testing for ingress protection if required.

Recommendations

For maintained IP66 performance, use compatible cable glands, avoid mechanical damage to sealing surfaces, and perform periodic inspections of the gasket and cover fastenings. Choose the transparent cover option when visual monitoring of indicators or status LEDs is needed without opening the enclosure.
