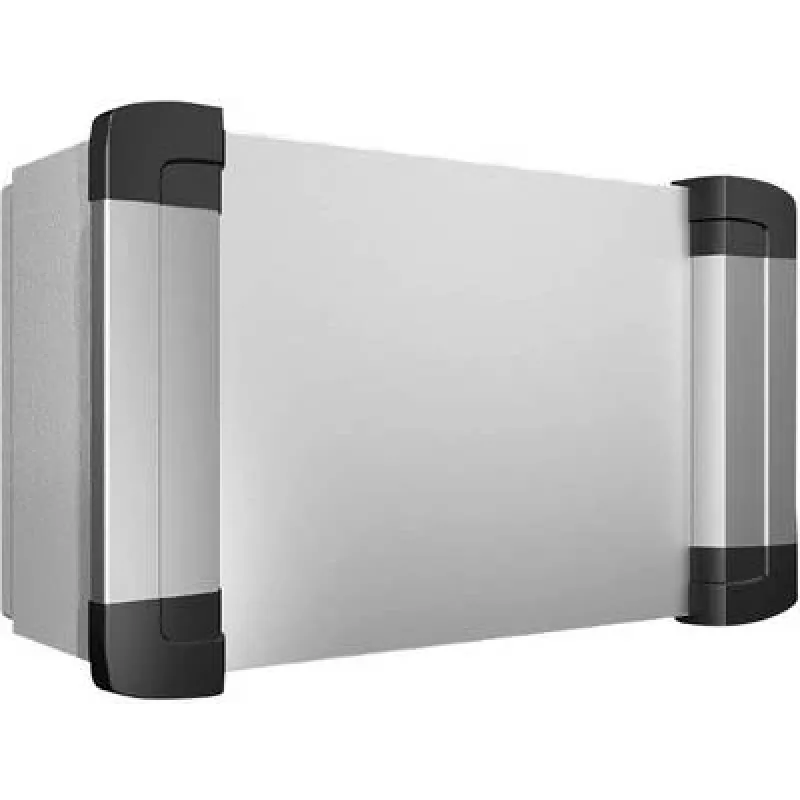

Electrical enclosure Rittal AX 6320.050, dimensions 155×300×200 mm, aluminium/steel sheet/plastic, light gray

Rittal AX 6320.050 is a compact electrical enclosure with external dimensions 155 × 300 × 200 mm, combining aluminium, steel sheet and plastic in a light gray finish. Designed to house small control units, terminal blocks and wiring, this enclosure provides a protected environment for electrical and electronic components in industrial and commercial installations. It is suitable for wall or panel mounting and offers a balance of mechanical strength and corrosion resistance through its mixed-material construction.

Advantages

The mixed construction of aluminium, steel sheet and plastic delivers a lightweight yet robust housing that resists mechanical stress and environmental exposure typical for indoor industrial and commercial settings. Its compact dimensions allow installation in constrained spaces while providing sufficient internal volume for small control systems and wiring. The light gray finish supports easy integration into existing switchboards and control cabinets and aids in visual identification and cable routing.

Suitable for

Key specifications

How to use

Prepare the mounting surface ensuring it is level and capable of supporting the loaded enclosure. Position the enclosure and mark mounting points consistent with the enclosure’s mounting holes or brackets. Secure the housing with appropriate fasteners for the mounting surface material. Route cables through designated knockouts or openings and install terminal blocks, control modules or wiring inside using the available internal space and any pre‑drilled mounting features. Ensure all electrical connections comply with applicable safety standards and local regulations before energizing the system.

Recommendations

Use suitable grommets or cable glands for cable entries to maintain protection and avoid strain on conductors. For environments with higher humidity or corrosive atmospheres consider additional protective measures such as sealing or using enclosures rated for those conditions. Regularly inspect fastenings and seals to ensure ongoing mechanical integrity and safe operation.
