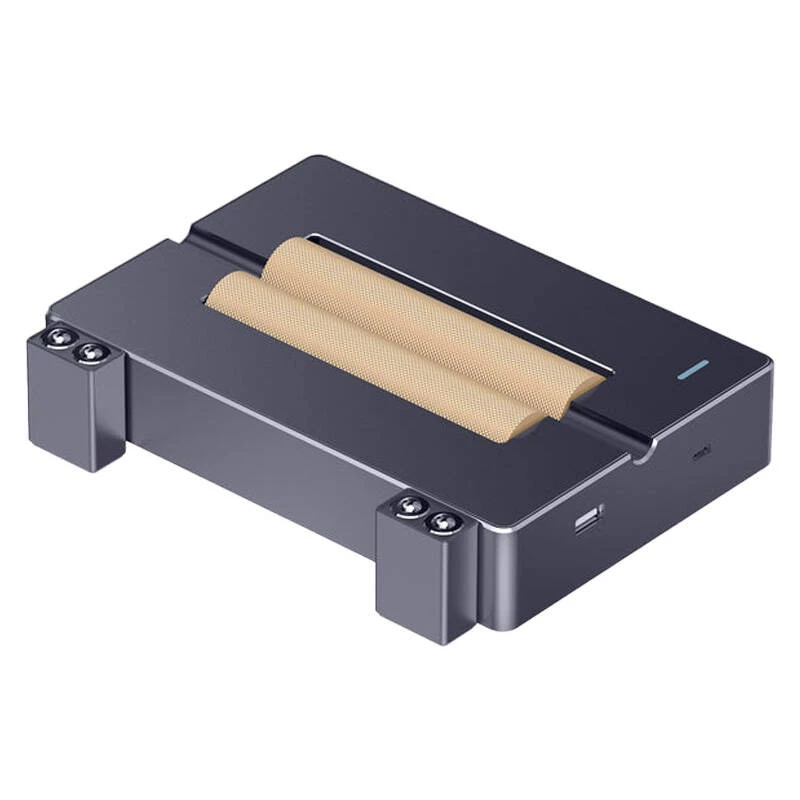

Electric Roller LaserPecker LPVE compact high-precision engraving device

Electric Roller LaserPecker LPVE compact high-precision engraving device expands the capabilities of compatible LaserPecker engravers by providing a motorised roller unit for larger and cylindrical workpieces. Designed as an add-on accessory, the LPVE increases the effective engraving area up to 10 x 200 cm and enables accurate, repeatable marking on straight, curved and cylindrical surfaces. Constructed from anodized aluminum with compact dimensions, the unit connects via USB and is intended for portable, hobbyist and light-professional use where controlled rotation or lateral movement is required.

Advantages

The Roller offers stable positioning and accurate motion control for consistent engraving results across extended surfaces. Its compact size and 5 V / 2 A USB power interface allow easy integration with LaserPecker systems and portable setups. Anodized aluminum construction provides a durable, lightweight housing and the included magnetic sliders, C-shaped bracket and silicone bands enable quick mounting on a variety of objects. Multiple operating modes such as Cylindrical, Trolley and Slab increase versatility for different shapes and tasks.

Suitable for

• Engraving long flat surfaces such as boards and countertops up to 10 x 200 cm
• Decorating and marking cylindrical objects like bottles, rollers and cups
• Working with uneven or slightly curved materials that require controlled travel
• Repeatable serial marking and small-scale production runs
• Hobby projects, maker workshops and light professional engraving tasks

Key specifications

• Maximum engraving area: 10 x 200 cm
• Power input: 5 V / 2 A via USB connection
• Material: anodized aluminum housing
• Dimensions (approx.): 18.6 x 12.7 x 3.7 cm
• Weight (approx.): 1.6 kg
• Operating modes: Cylindrical, Trolley, Slab for different surface geometries

How to use

Install the Electric Roller LPVE on a compatible LaserPecker engraving head following the manufacturer’s alignment procedure. Secure workpieces using the included magnetic sliders, C-shaped bracket and silicone bands to ensure stable contact with the roller. Connect the unit to a 5 V / 2 A USB power source and select the appropriate operating mode in the engraving app or device settings (Cylindrical for round objects, Trolley or Slab for flat or long items). Calibrate rotation and offset parameters as required for accurate engraving results, then proceed with job setup and start the engraving operation.

Recommendations

For best results, use the Roller on clean, dry surfaces and ensure the object is firmly held to minimize slippage. Verify that the selected mode matches the object geometry and perform a small test engraving on a scrap piece or an inconspicuous area before running the full job. Observe the LaserPecker device safety guidelines and avoid operation near flammable materials; maintain safe eye protection when working with laser equipment.
