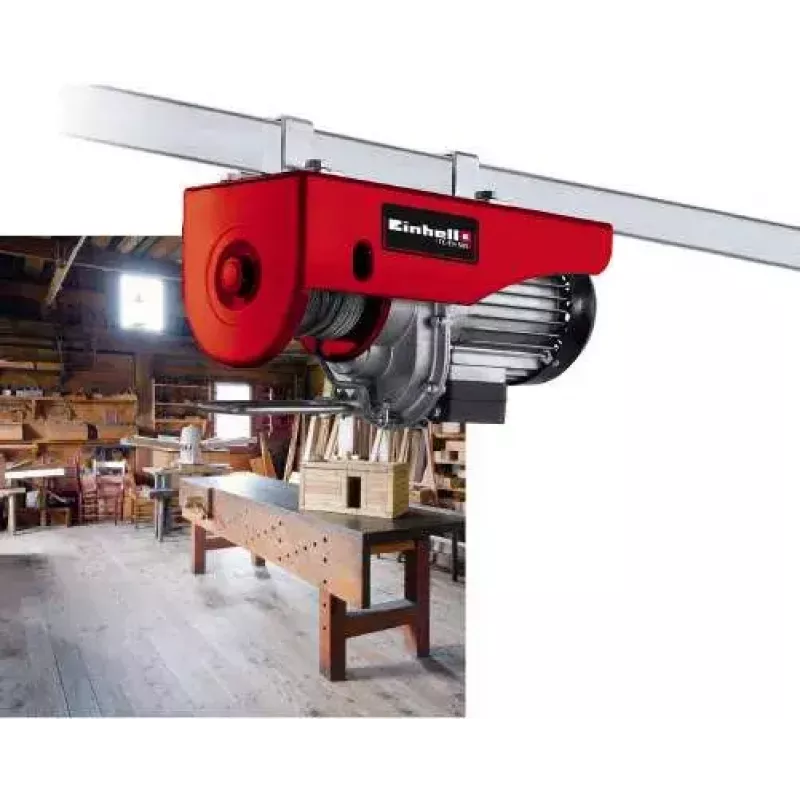

Electric Hoist Einhell TC-EH 500 1000 W 500 kg

The Einhell TC-EH 500 electric hoist is a compact lifting tool designed for a range of lifting tasks. It is driven by a 1000 W motor and provides a maximum load capacity of 500 kg. The unit delivers a lifting height of 11.5 m when used without a return pulley and 5.7 m with a return pulley. Its compact dimensions (158 mm width, 402 mm depth, 258 mm height) make it convenient to position, transport and store in workshops or on-site. The hoist is suitable for both professional and DIY applications where controlled vertical lifting is required.

Advantages

The electric hoist combines a high-power 1000 W motor with a 500 kg load capacity to handle heavier loads than typical small hoists. The option to use a return pulley increases lifting flexibility by providing an alternate lifting height. Compact external dimensions reduce the space needed for storage and simplify mounting in limited areas. The straightforward mechanical design supports repeated lifting tasks with consistent performance.

Suitable for

• Lifting heavy components in workshops and garages
• Hoisting materials on construction or renovation sites
• Vehicle engine removal and installation tasks
• DIY projects that require safe vertical lifting

Key specifications

• Motor power: 1000 W

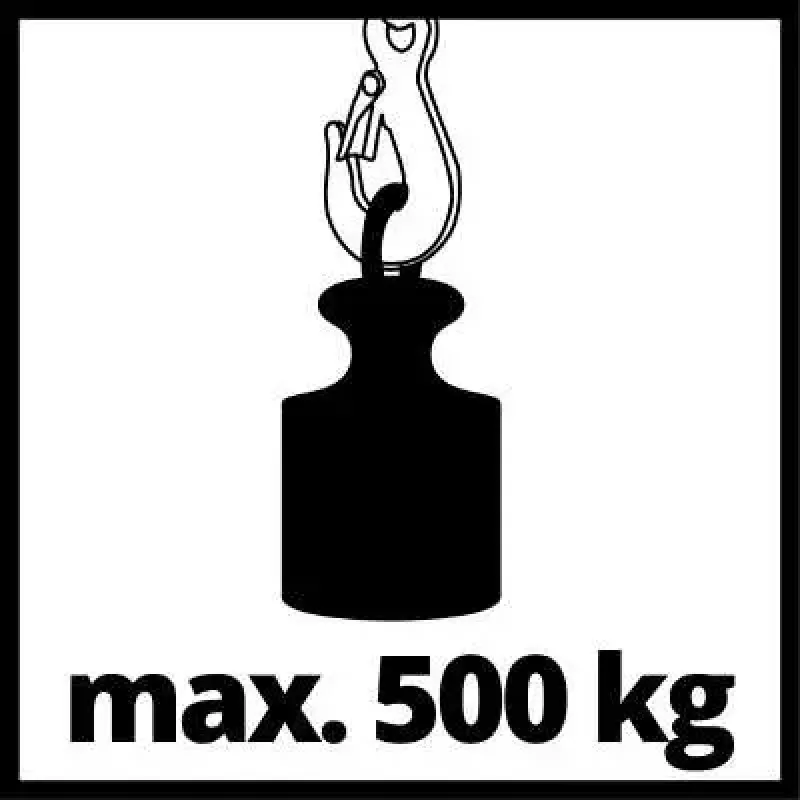

• Maximum load capacity: 500 kg

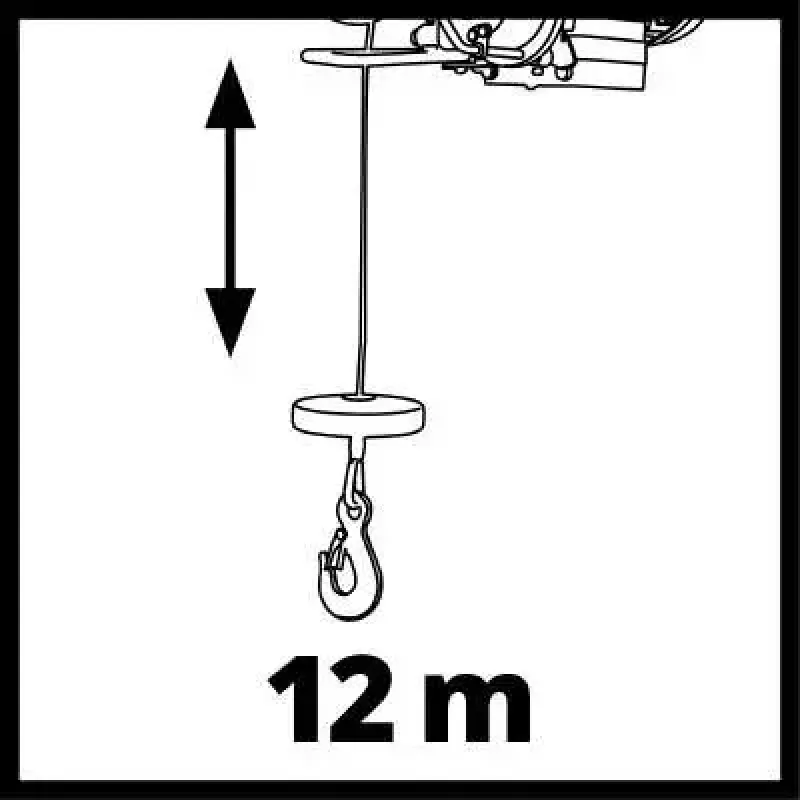

• Lifting height without return pulley: 11.5 m
• Lifting height with return pulley: 5.7 m
• Dimensions (W × D × H): 158 mm × 402 mm × 258 mm

How to use

Install the hoist on a suitable support structure that can safely bear the maximum load and follow the manufacturer's mounting instructions. Choose whether to set up the device with or without a return pulley depending on the required lifting height and application. Secure the load with an appropriate sling or hook and ensure the load is balanced before operating. Operate the hoist controls to lift or lower the load smoothly, and monitor the load and mechanism throughout the operation. After use, lower the load to a safe position and store the hoist in a dry location.

Recommendations

Use appropriate personal protective equipment when handling loads and ensure the support structure and fastening points are rated above the maximum load. Regularly inspect the hoist, cable and attachments for wear or damage and service according to the manufacturer's guidance. Avoid exceeding the specified 500 kg capacity and do not use the hoist for unintended lateral pulling or towing tasks.
