Elatec TWN4 MultiTech 2 Legic 4500 DT-U20-b T4BT-BB2BEL6-5

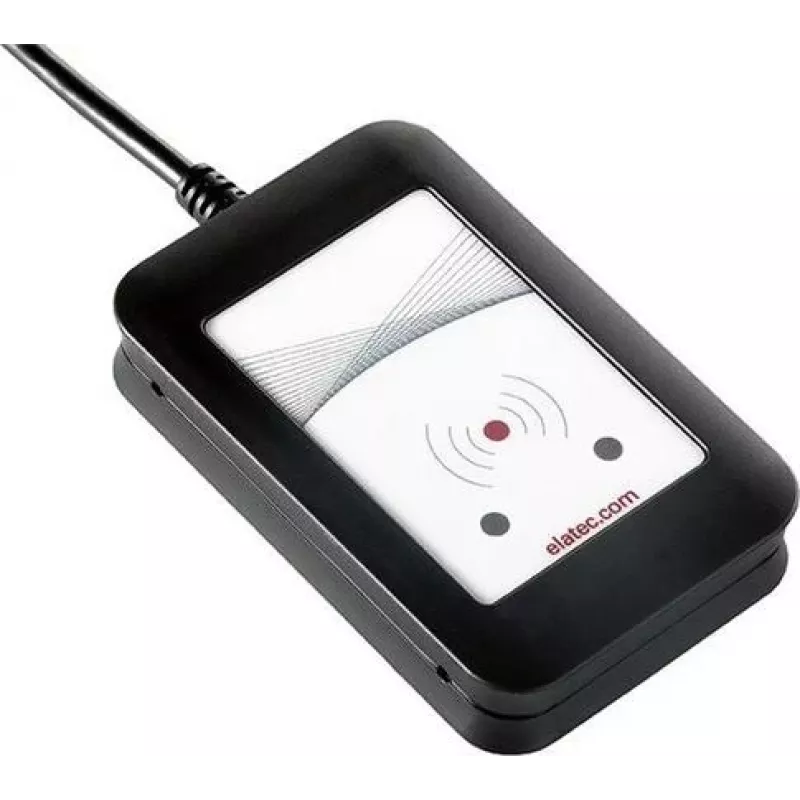

Managing access control across diverse card technologies often means juggling multiple readers and complex integrations. The ELATEC TWN4 MultiTech 2 Legic 4500 solves this by combining 125 kHz and 13.56 MHz RFID reading/writing into a single, USB-powered desktop device. It supports over 60 RFID technologies, including MIFARE, HID Prox, and Legic Prime/Advant, making it a universal tool for authentication, time tracking, and secure printing.

Who is it for

System integrators, IT administrators, and developers who need a flexible RFID solution for mixed-card environments. Ideal for desktop enrolment, kiosk integration, or as a development tool for RFID applications.

Main features

• Dual-frequency operation: 125 kHz and 13.56 MHz for broad compatibility.
• Supports Legic 4500, MIFARE Classic/DESFire, HID Prox, and many more.
• USB 2.0 interface with virtual COM port or HID modes for easy integration.
• Built-in multi-color LED and buzzer for clear user feedback.
• Field-upgradeable firmware and comprehensive SDK for custom applications.
• Robust ABS housing with wide operating temperature range (-25°C to +70°C).

Specifications

• Brand: ELATEC
• Model: TWN4 MultiTech 2 Legic 4500
• MPN: T4BT-BB2BEL6-5
• Type: RFID Reader/Writer
• Operating Frequency: 125 kHz, 13.56 MHz
• Supported Technologies: ISO 14443 A/B, ISO 15693, FeliCa, MIFARE, Legic, NFC, EM4100, HID Prox, Indala, T5577
• Interface: USB 2.0
• Power Source: USB Bus Powered
• Product Colour: Black
• Operating Temperature: -25°C to +70°C
• LED Indicators: Multi-color
• Protection Features: AES128, DES/3DES encryption
• Mobile Operating Systems Supported: Android
• Standard Interfaces: USB
• Scanner Type: RFID
• Operating Frequency: 125 kHz, 13.56 MHz
• Compliance: CE, FCC, RoHS, WEEE, REACH

Tips

Use the ELATEC SDK to quickly integrate the reader with your existing software. For best performance, position the card or tag within 5 cm of the reader surface. The reader is plug-and-play on Windows, Linux, macOS, and Android.
