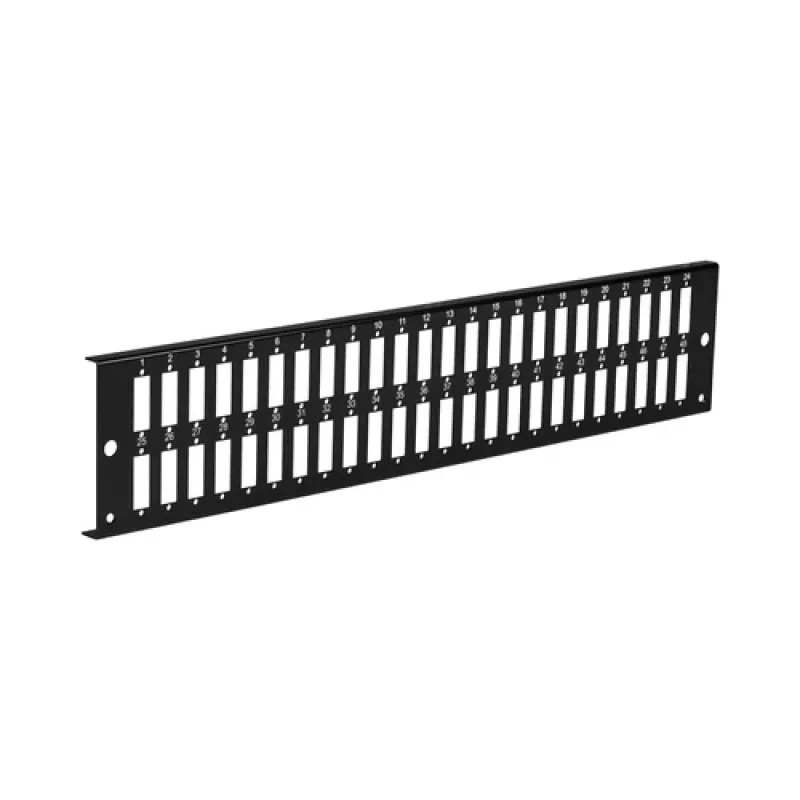

EFB VSB2HE-FP-SW-48SC-D 19 inch 2U Front Panel for 24x SC Duplex/LC Quad Adapters, Vertical, Black

Managing high-density fiber optic connections in a 19-inch rack can quickly become chaotic without a structured patching solution. The EFB VSB2HE-FP-SW-48SC-D front panel brings order to your network cabinet by accommodating up to 24 SC Duplex or LC Quad adapters in a vertical orientation, supporting up to 48 or 96 fibers respectively. Its modular design and robust steel construction make it an essential component for professional fiber optic patch panels and distribution boxes.

Who is it for

Network administrators, data center technicians, and cabling professionals who require a reliable, high-density front panel for terminating fiber optic connections in 19-inch racks. It is ideal for structured cabling systems in enterprise networks, telecommunications rooms, and server environments where space efficiency and cable management are critical.

Main features

• 2U height with 24 adapter cutouts for SC Duplex or LC Quad couplings
• Vertical adapter orientation maximizes port density and simplifies cable routing
• Supports up to 48 fibers with SC Duplex or 96 fibers with LC Quad adapters
• Durable powder-coated steel construction for long-lasting performance
• Standard 19-inch rack mounting with 482.6 mm width
• Modular design allows flexible configuration with various adapter types

Specifications

• Product type: Front panel
• Rack standard: 19 inch
• Rack units: 2U
• Number of adapter cutouts: 24
• Compatible adapter types: SC Duplex, LC Quad
• Max fiber capacity: 48 (SC Duplex) / 96 (LC Quad)
• Adapter orientation: Vertical
• Color: Black
• Material: Steel
• Finish: Powder-coated
• Width: 482.6 mm
• Height: 88.9 mm
• Manufacturer: EFB Elektronik
• Part number: VSB2HE-FP-SW-48SC-D

Tips

For optimal cable management, use angled strain relief bars or horizontal cable managers above and below the panel. Ensure the rack is properly grounded and that all fiber adapters are securely snapped into the cutouts. When mixing SC and LC adapters, plan the layout to balance fiber density and accessibility.
