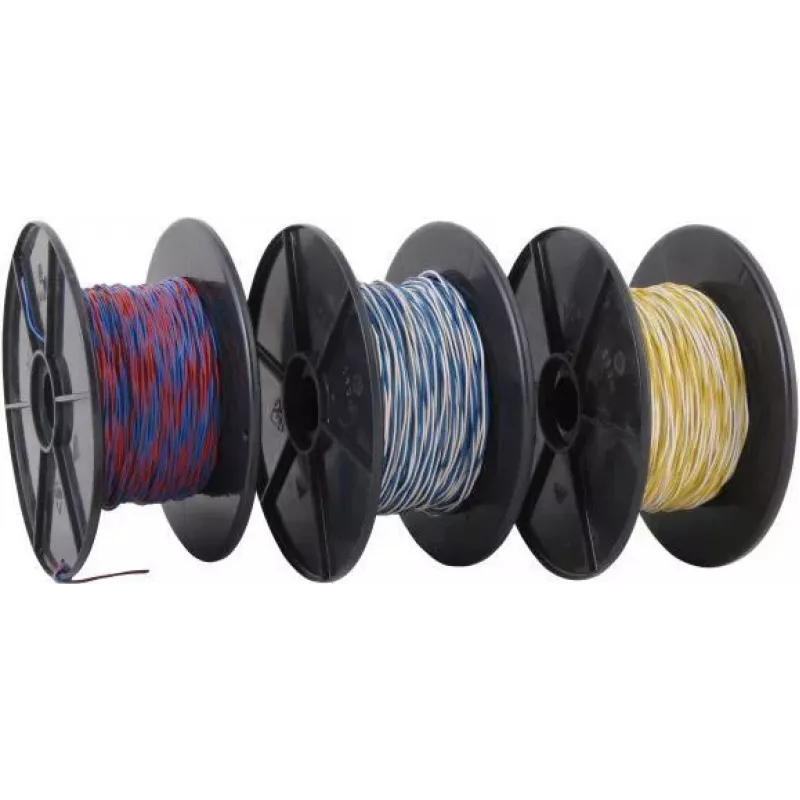

EFB-Elektronik YV Installation Cable 2x0.6/1.1 mm White/Green 100 m Roll

The EFB-Elektronik YV installation cable is a high-quality, solid copper cable designed for telecommunication, signal, and low-voltage control applications. With two cores (0.6 mm conductor diameter, 1.1 mm insulation diameter) in white and green, this 100-meter roll offers reliable performance for indoor installations. The PVC insulation ensures durability and self-extinguishing flame retardancy, while the bare copper conductors provide excellent conductivity. Compliant with RoHS standards, this cable is suitable for fixed installations in dry or damp environments.

Advantages

This cable offers a cost-effective solution for structured cabling in building infrastructure. The solid core design ensures stable signal transmission, and the color-coded cores (white and green) simplify identification and termination. The PVC jacket provides good mechanical protection and flexibility for routing in conduits or cable trays.

Suitable for

• Telecommunication and telephone systems
• Low-voltage control circuits
• Signal transmission in building automation
• Indoor fixed installations

Key specifications

• Cable type: YV installation cable
• Number of cores: 2
• Conductor diameter: 0.6 mm
• Core insulation diameter: 1.1 mm
• Core colors: White, Green
• Length: 100 m
• Packaging: Roll
• Conductor material: Bare copper
• Conductor type: Solid
• Insulation material: PVC
• Nominal cross-sectional area: 0.28 mm²
• Rated voltage: 250 V
• Temperature range (fixed installation): -5°C to +70°C
• Flame retardancy: Self-extinguishing
• RoHS compliant: Yes

Recommendations

For optimal performance, use this cable with appropriate connectors and ensure proper installation according to local regulations. Suitable for indoor use only; not recommended for outdoor or direct burial applications.
