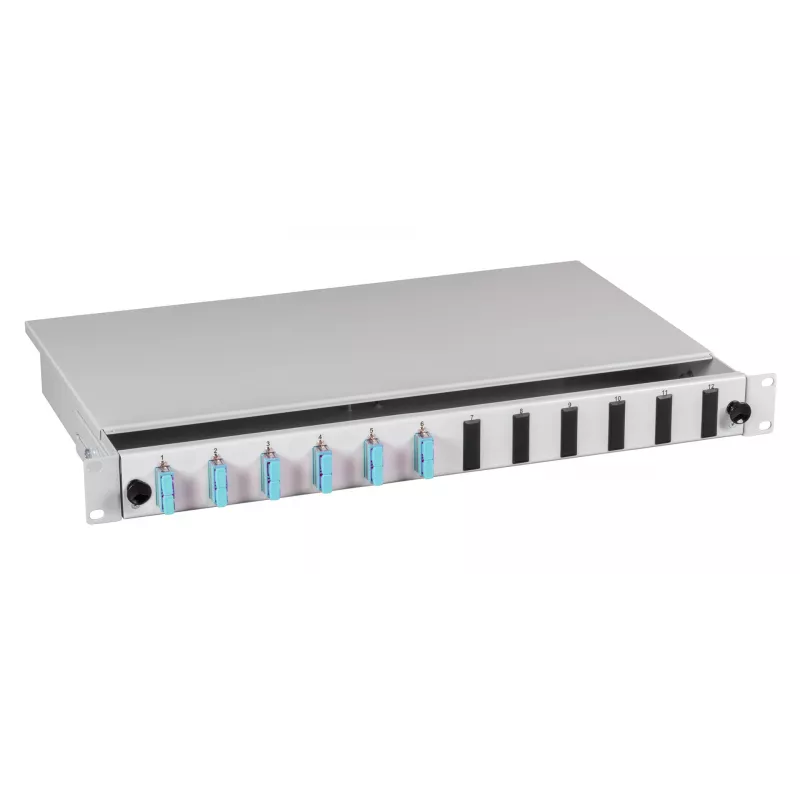

EFB Elektronik Splice Box SC OS2 9/125µm Sliding 24 Pigtails 12 Couplers 1U 19 inch Rack Mount Grey

The EFB Elektronik BA71223.24 is a high-quality fiber optic splice box designed for professional telecommunications and data network installations. This 1U 19-inch rack-mountable unit features a sliding/extractable housing for easy access and maintenance. It comes pre-equipped with 24 SC pigtails (singlemode OS2 9/125µm) and 12 SC duplex couplers, providing a ready-to-use solution for splicing and patching.

Advantages

Time-saving pre-terminated pigtails reduce installation effort. The sliding design allows convenient access to splice trays and cable management. Robust steel construction ensures durability in data centers and telecom rooms.

Suitable for

• Telecommunications networks
• Data centers and server rooms
• FTTx and LAN cabling infrastructure
• Fiber optic distribution points

Key specifications

• Product Type: Fiber Optic Splice Box / Patch Panel
• Fiber Type: Singlemode OS2 (9/125µm)
• Connector Type: SC (pigtails and adapters)
• Number of Pigtails: 24
• Number of Adapters: 12 (duplex)
• Housing: Sliding, 1U 19" rack mount
• Color: Light grey (RAL 7035)
• Material: Steel

Recommendations

For optimal performance, use with OS2 singlemode patch cables and ensure proper cable management. Suitable for splicing incoming cables to the pre-terminated pigtails.
