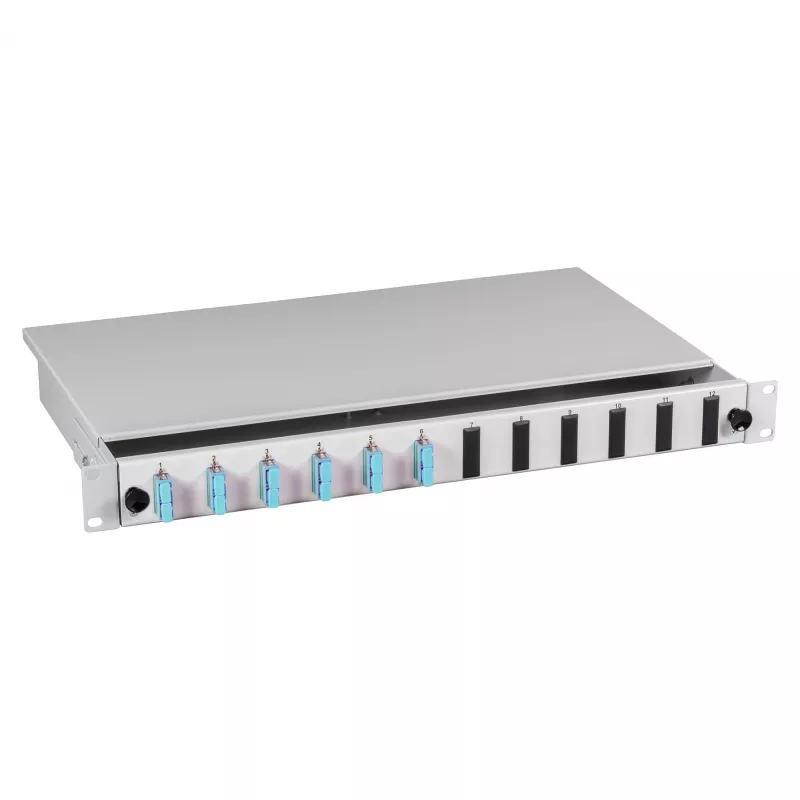

EFB-Elektronik Splice Box SC 50/125µm OM4 Sliding, 12 Pigtails Pre-terminated & 6 Duplex Couplers

The EFB-Elektronik BA71203L12OM4 is a high-quality fiber optic splice box designed for professional network installations. This 1U 19-inch rack-mountable unit features a sliding/pull-out housing for easy access and maintenance. It comes pre-terminated with 12 SC pigtails (50/125µm OM4 multimode) and 6 SC duplex adapters, providing a complete solution for splicing and patching up to 12 fibers. Ideal for data centers, telecom rooms, and structured cabling.

Advantages

Pre-terminated pigtails save installation time and reduce splicing errors. The sliding design allows convenient access to splices and adapters without removing the box from the rack. OM4 multimode fiber supports high-bandwidth applications up to 100 Gbps over short distances.

Suitable for

• Data center fiber distribution
• Telecommunications network termination
• Structured cabling in enterprise environments
• FTTH and LAN backbone connections

Key specifications

• Product Type: Fiber Optic Splice Box
• Fiber Mode: Multimode OM4
• Core/Cladding: 50/125 µm
• Connector Type: SC
• Number of Adapters: 6 (Duplex)
• Number of Pigtails: 12 (Pre-terminated SC)
• Housing: Sliding / Pull-out, 19-inch 1U
• Max Fiber Capacity: 12 Fibers
• Application: Indoor

Recommendations

For optimal performance, use with OM4 patch cables and ensure proper fiber cleaning before connection. Compatible with standard 19-inch racks.
